Connector Identification

NOTE: For terminal identification of body control system component harness connectors, use appropriate illustration(s). See CONNECTOR IDENTIFICATION DIRECTORY . Connector terminal numbers may, or may not, be molded into connector faces. However, if connector terminal identification differs from that shown in following illustrations, use wire colors to ensure correct circuit is being tested. See WIRING DIAGRAMS .

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
Air Bag Control Module (ACM)	Fig 1
Central Timer Module Connectors	Fig 2 and Fig 3
Compass Mini Trip Computer (CMTC)	Fig 4
Data Link Connector (DLC)	Fig 5
Door Lock Motor/Ajar Switch	Fig 6
Key-In Ignition Switch	Fig 7
Multifunction Switch	Fig 8
Power Door Lock (PDL) Switch	Fig 9
Power Door Lock/Window Switch	Fig 10
Powertrain Control Module (PCM)	Fig 11
Relay & Fuse Center	Fig 12
Relay (Typical)	Fig 13
Wiper Motor	Fig 14

Fig 1: Identifying Air Bag Control Module (ACM) Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Central Timer Module (CTM) C1 Connector Terminals (Except Dakota Base-Line Models)

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Central Timer Module (CTM) C2 Connector Terminals (Dakota Base-Line Model C1 Connector Is Similar)

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Compass Mini Trip Computer (CMTC) Connector Terminals (Dakota Shown; Durango Is Similar)

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Data Link Connector (DLC) Terminals (Durango Shown; Dakota Is Similar)

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Door Lock Motor/Ajar Switch Connector Terminals (Dakota Shown; Durango Is Similar)

Courtesy of CHRYSLER CORP.

Fig 7: Identifying Key-In Ignition Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Multifunction Switch Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 9: Identifying Power Door Lock/Window (PDL) Switch Connector Terminals (Dakota 2-Door)

Courtesy of CHRYSLER CORP.

Fig 10: Identifying Power Door Lock/Window (PDL) Switch Connector Terminals (Dakota 4-Door & Durango)

Courtesy of CHRYSLER CORP.

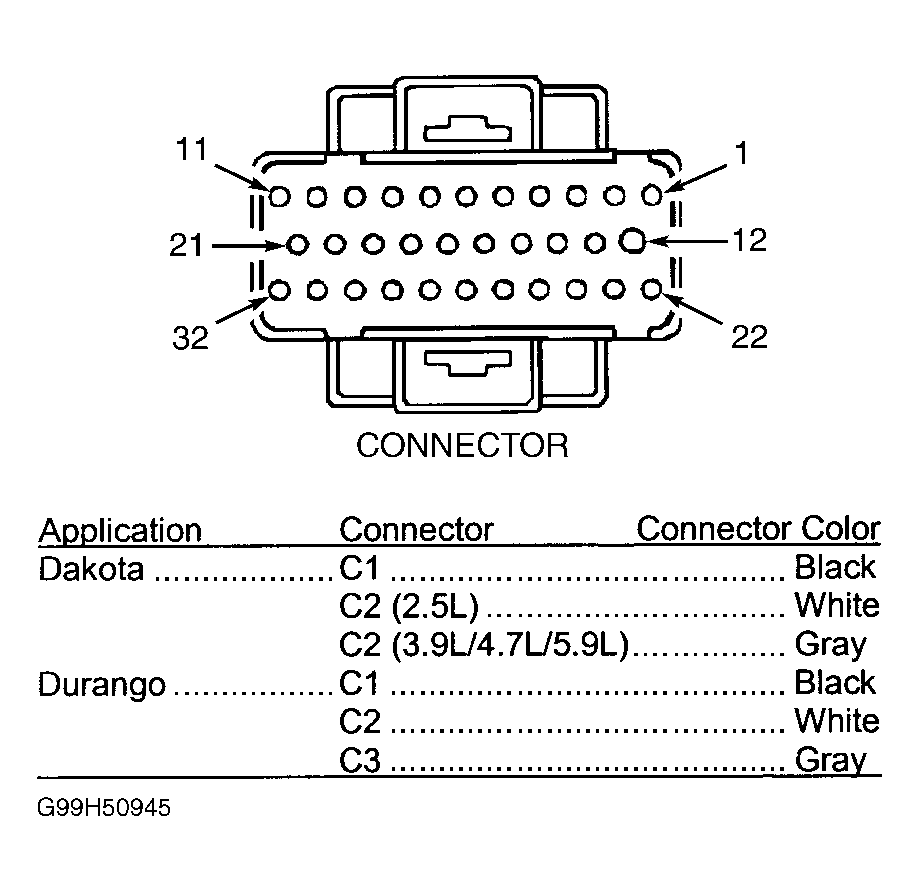

Fig 11: Identifying Powertrain Control Module (PCM) Connectors & Terminals

Courtesy of CHRYSLER CORP.

Fig 12: Identifying Relay & Fuse Center Connector

Courtesy of CHRYSLER CORP.

Fig 13: Identifying Typical Relay Terminals For Testing

Courtesy of CHRYSLER CORP.

Fig 14: Identifying Wiper Motor Connector Terminals (Dakota Shown; Durango Is Similar)

Courtesy of CHRYSLER CORP.
