Powertrain Control Module Location

Powertrain Control Module (PCM) is located at passenger's side front corner of engine compartment on inner fender panel. See Fig 1 . If replacing PCM, PCM must be properly programmed. See POWERTRAIN CONTROL MODULE PROGRAMMING  under PROGRAMMING.

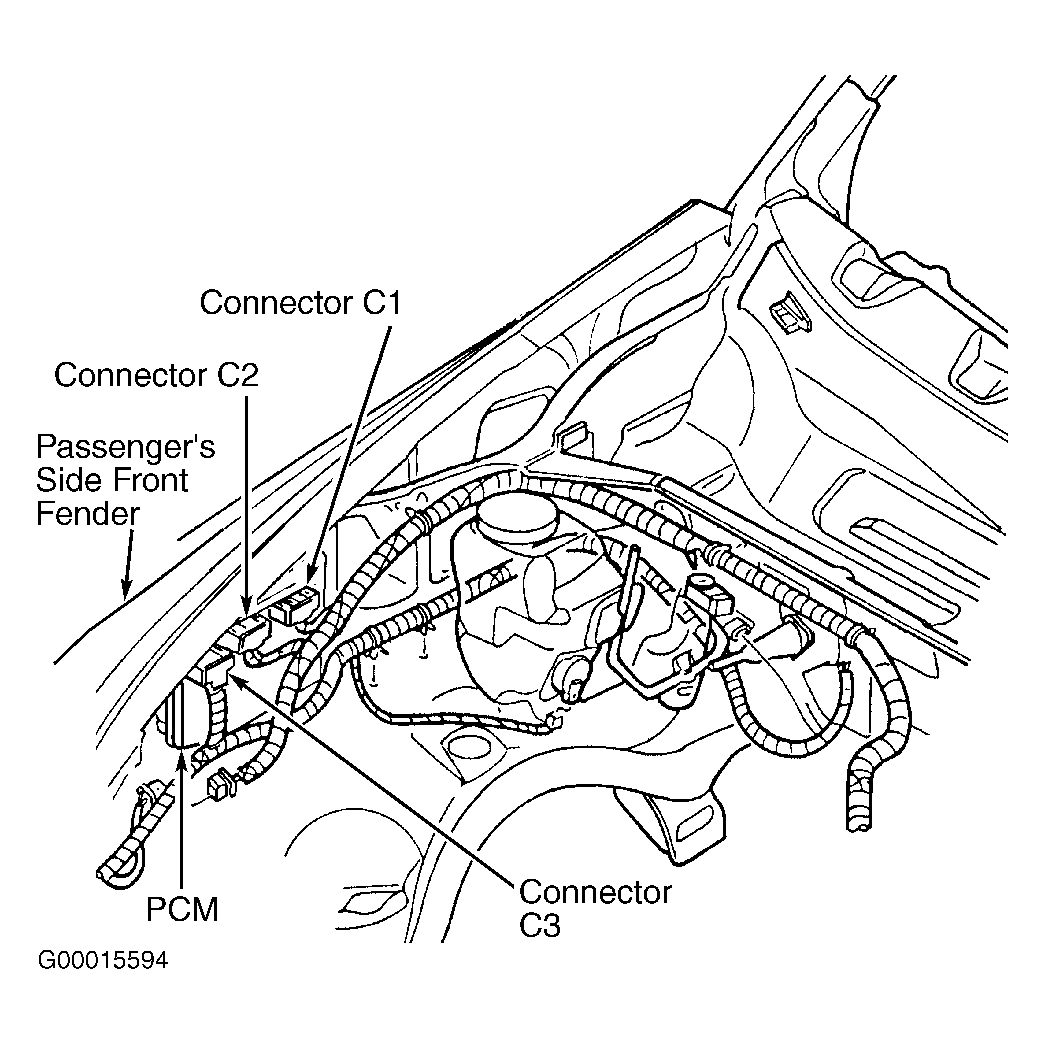

Fig 1: Locating Powertrain Control Module (PCM) & Identifying PCM Connectors

Courtesy of DAIMLERCHRYSLER CORPORATION
