Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Dedicated Fuses | In power distribution center or relay & fuse block. |

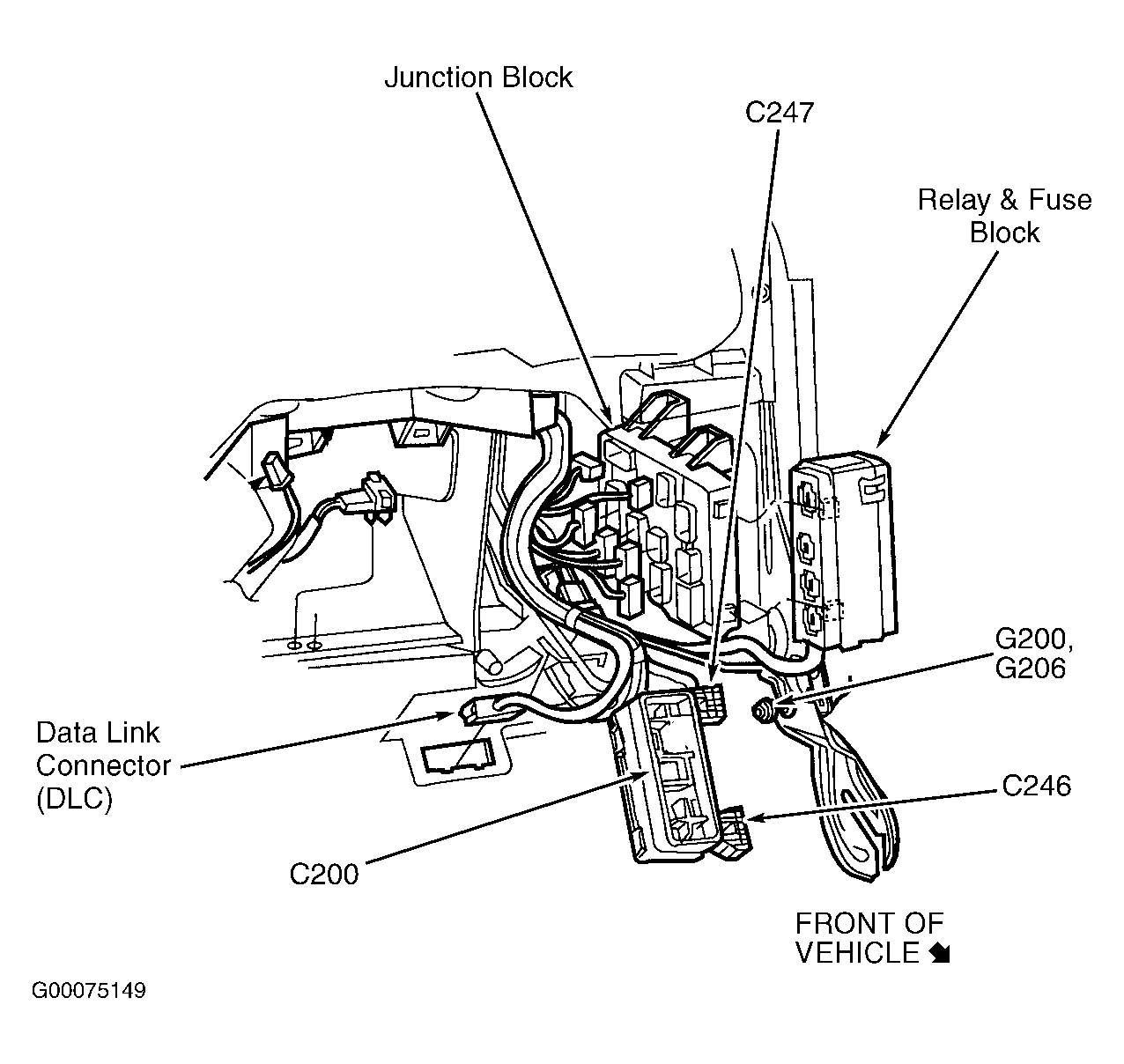

| Junction Block | On left end of dash. See Figure . |
| Multi-Purpose Fuses | On junction block, on left end of dash. |

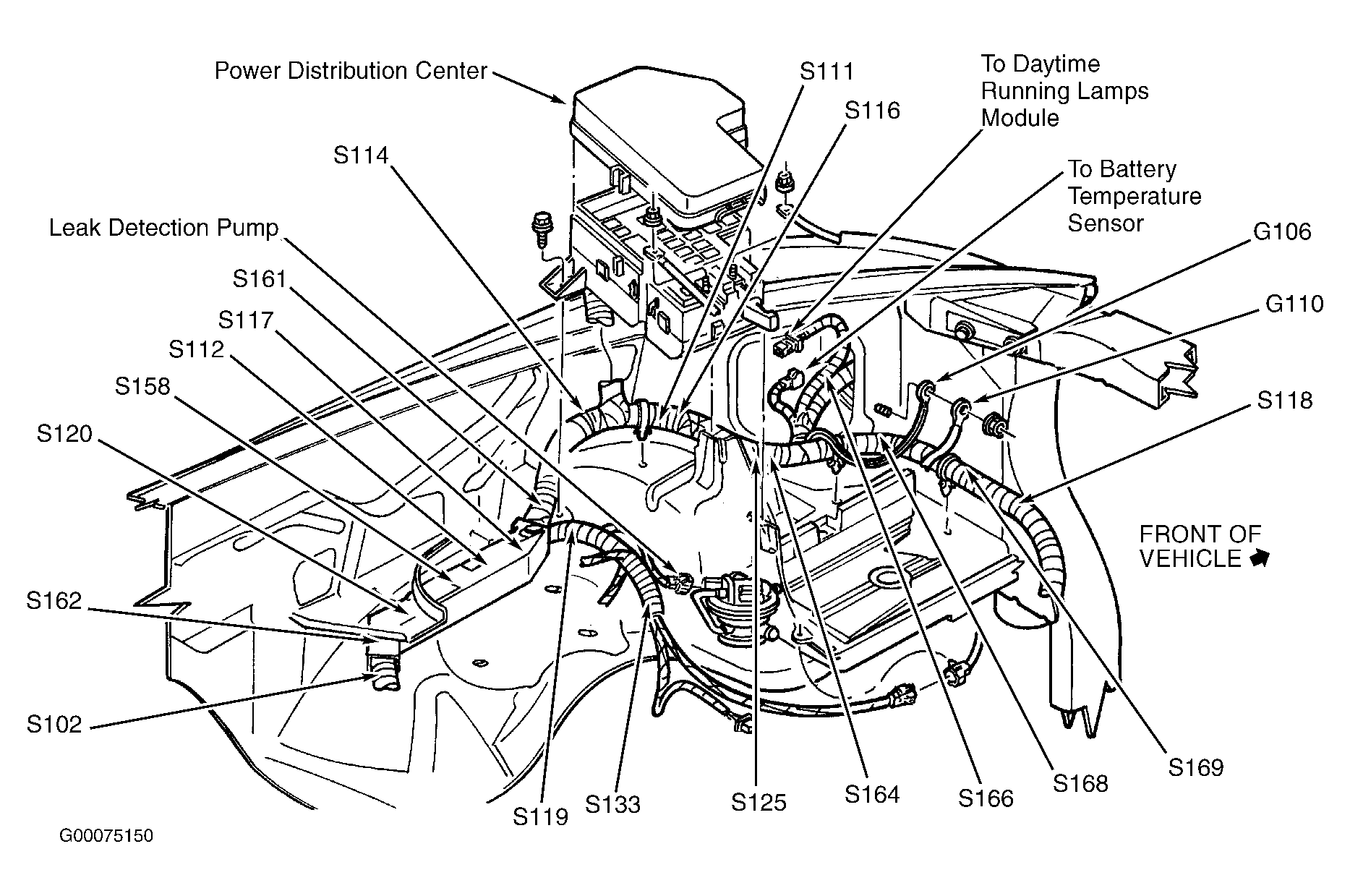

| Power Distribution Center | On left front inner fender. SeeFigure . |
| Power Seat Circuit Breaker | In junction block. |
| Power Window Circuit Breaker | In junction block. |
| Relay & Fuse Block | Behind left side of dash, attached to junction block. See Figure . |
