Controller Anti-Lock Brake: Notes
CAUTION:
External features of Controller Anti-Lock Brake (CAB) on ABS with Traction Control System (TCS) and ABS without TCS are similar, but there are functional differences in CAB operation. Ensure proper CAB is installed, or ABS will be disabled and diagnostic trouble code will be set.
NOTE:

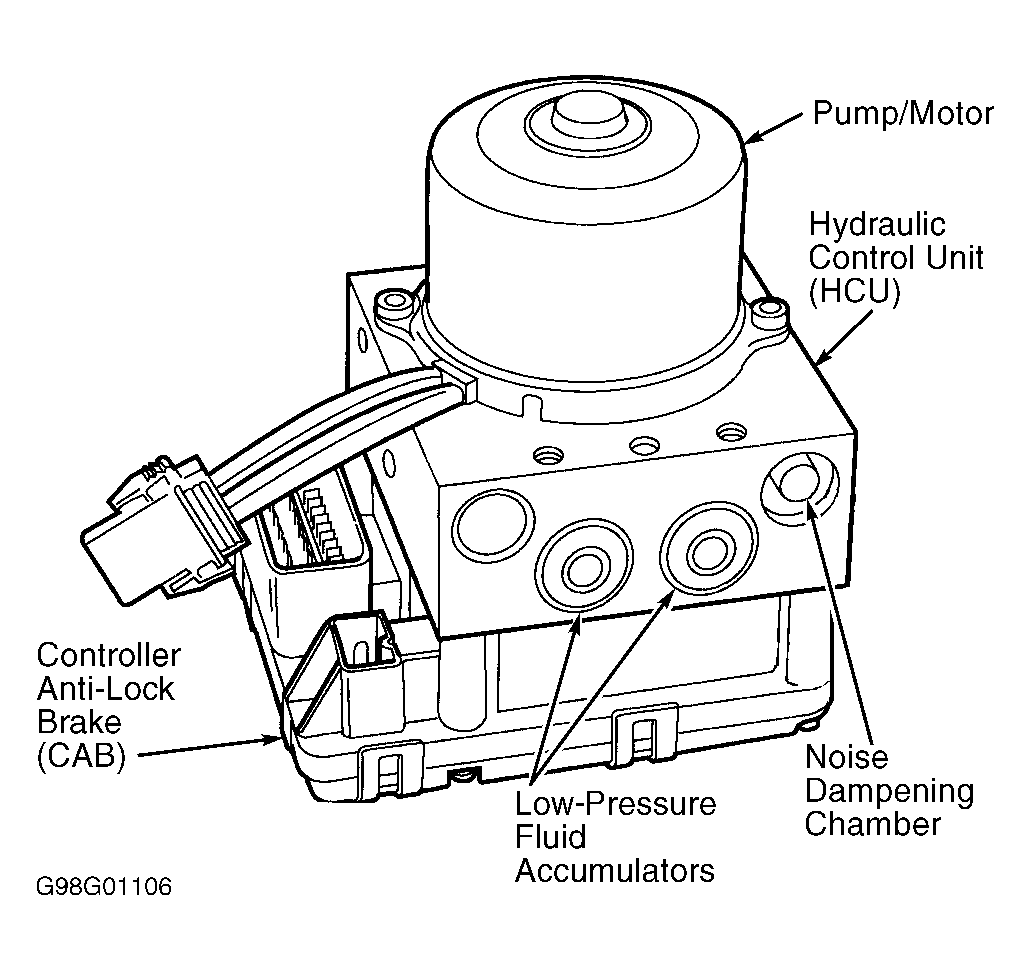

CAB and Hydraulic Control Unit (HCU) are integrated into one unit, the Integrated Control Unit (ICU). See Figure
. DO NOT attempt to remove CAB from ICU while still in vehicle. ICU must be removed from vehicle before CAB can be separated from ICU.
