Battery Temperature Sensor: Service and Repair

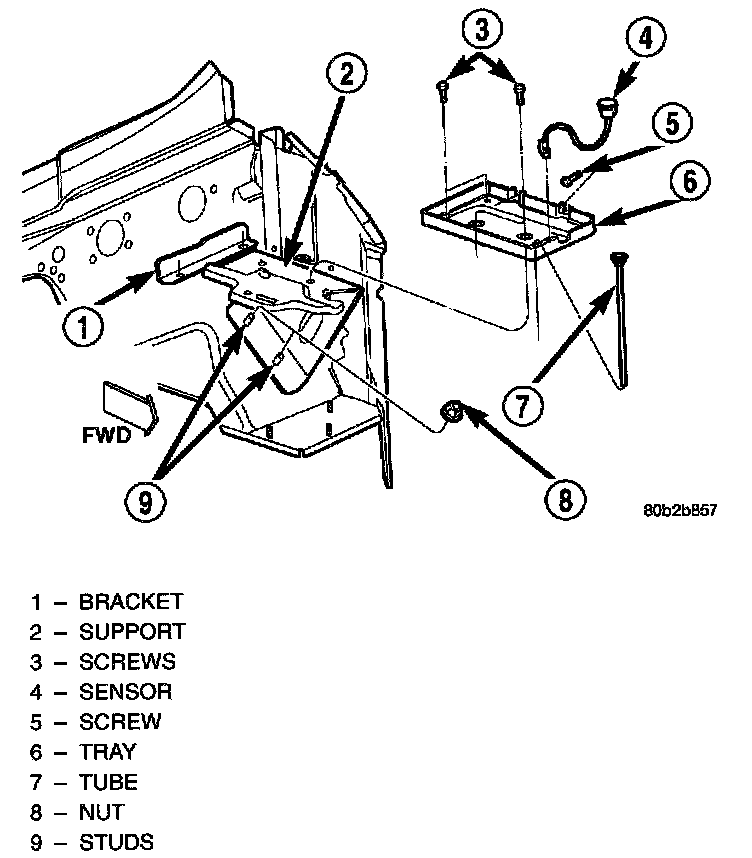

Battery Temperature Sensor Location:

The battery temperature sensor is located under vehicle battery and is attached to a mounting hole on battery tray.

REMOVAL
1. Remove battery.
2. Disconnect sensor pigtail harness from engine wire harness.
3. Pry sensor straight up from battery tray mounting hole.

INSTALLATION
1. Feed pigtail harness through hole in top of battery tray and press sensor into top of battery tray.
2. Connect pigtail harness.
3. Install battery.
