Battery Temperature Sensor: Testing and Inspection

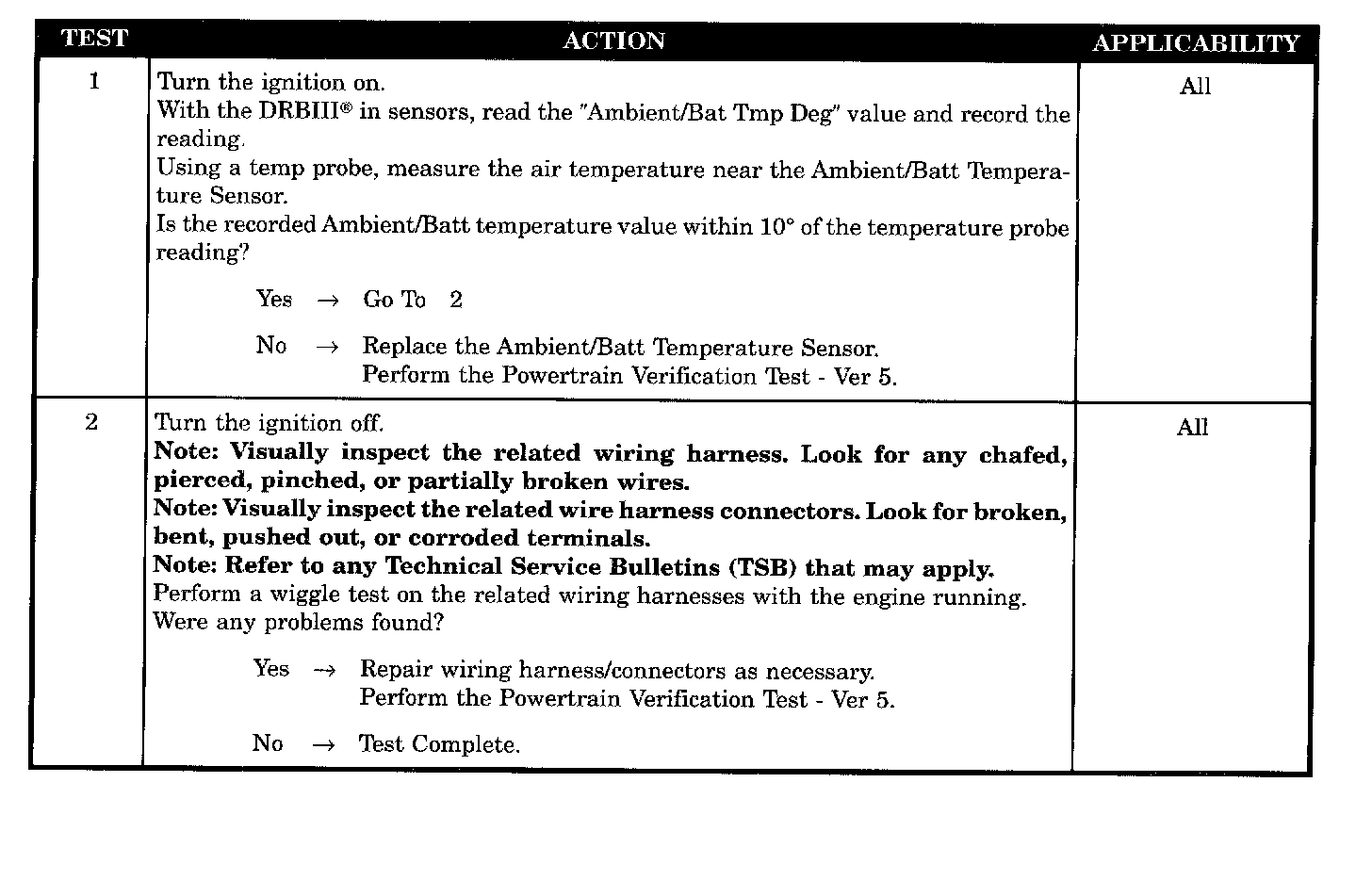

Tests 1 - 2:





SYMPTOM
CHECKING THE AMBIENT/BATTERY TEMPERATURE SENSOR

POSSIBLE CAUSES
- Ambient/Battery temperature sensor (out of calibration)
- Wiring Harness intermittent problem
