Non-Trouble Code Procedures

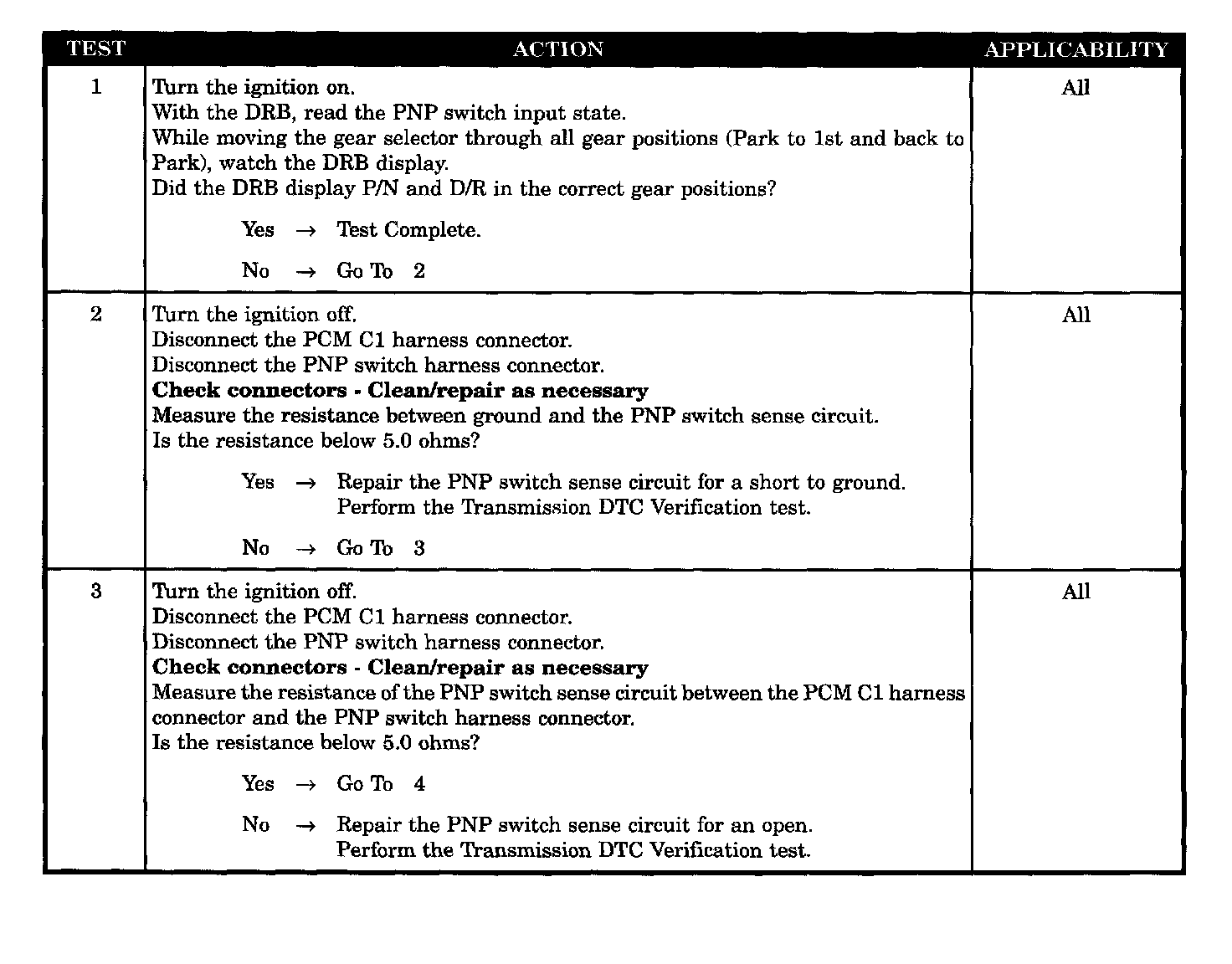

Tests 1 - 3:

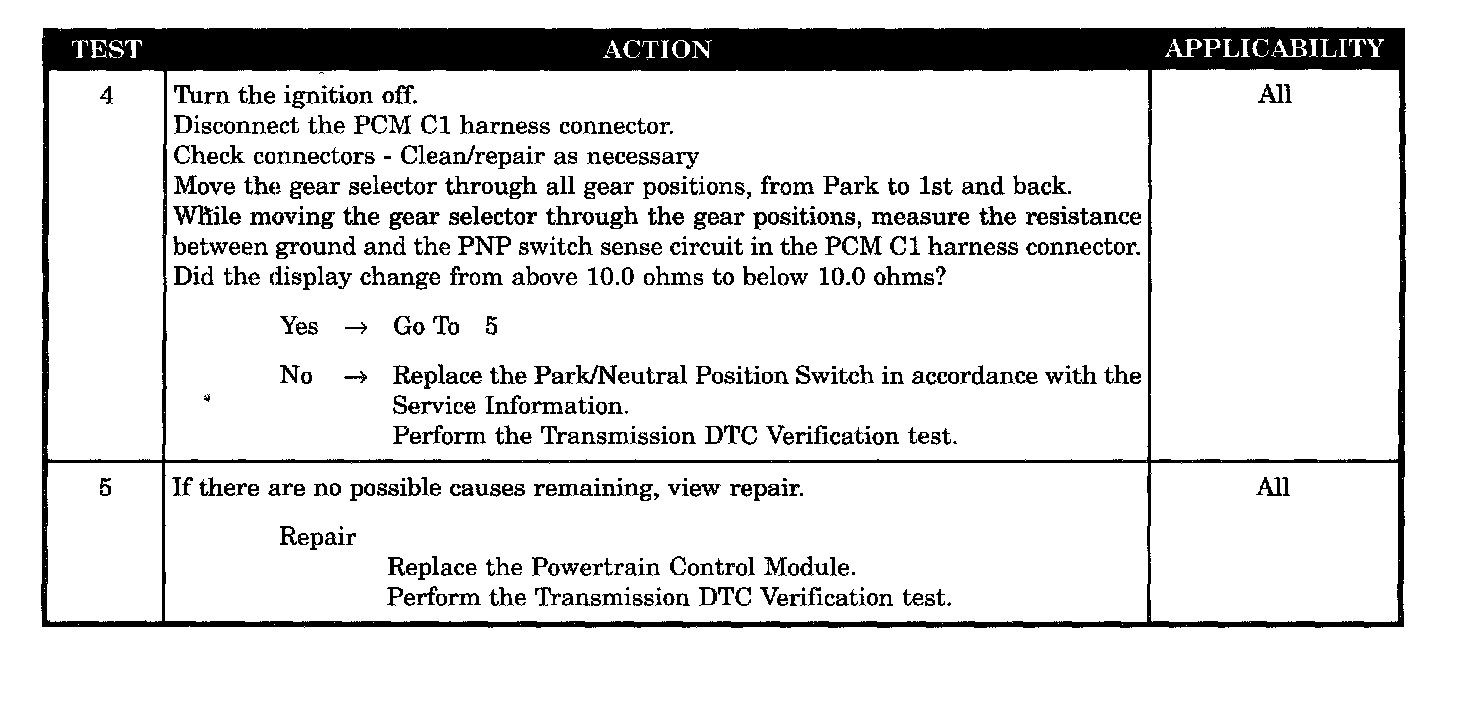

Tests 4 - 5:

SYMPTOM
CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
- [1][2]Park/Neutral position switch
- Park/Neutral switch sense circuit shorted to ground
- Park/Neutral switch sense circuit open
- Powertrain Control Module
