System Specifications
General:
GENERAL
TORQUE

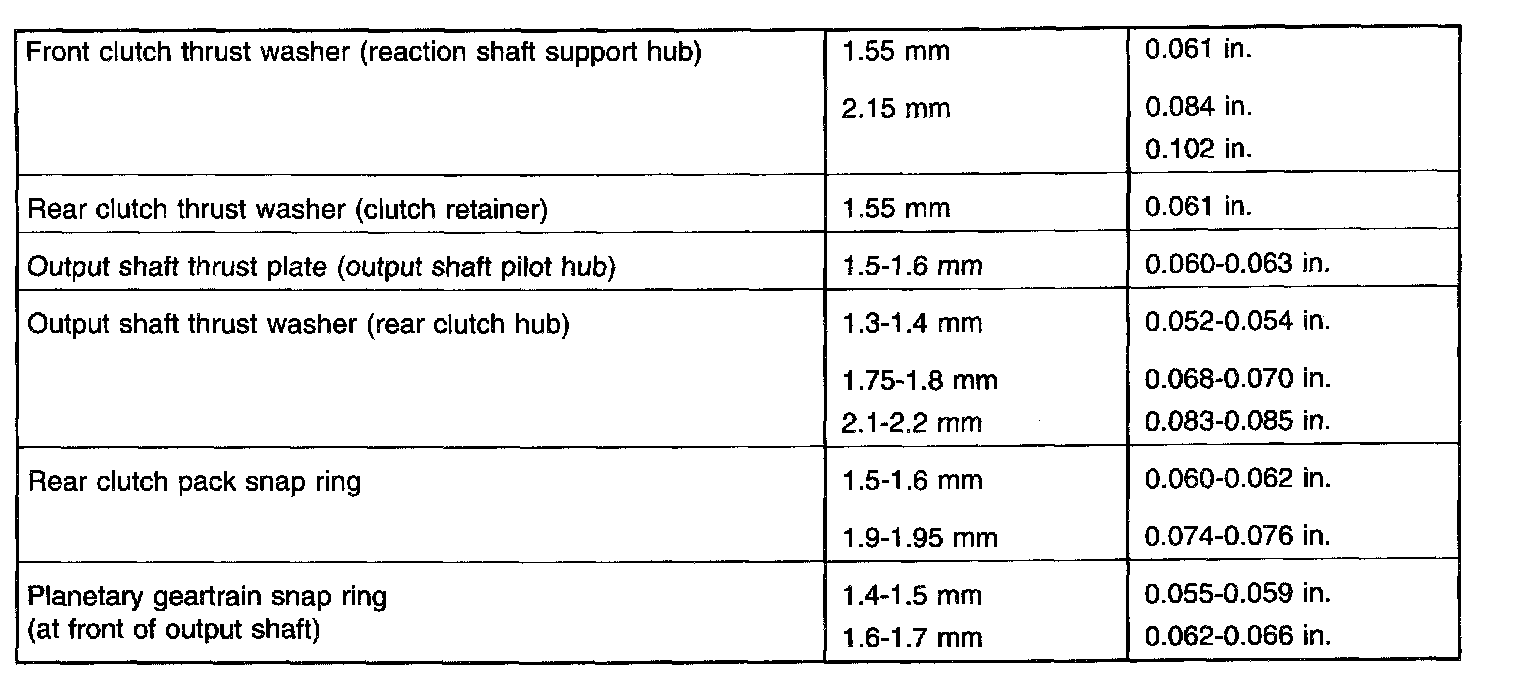

Thrust Washer/Spacer/Snap Ring Dimensions:
THRUST WASHER/SPACER/SNAP RING DIMENSIONS

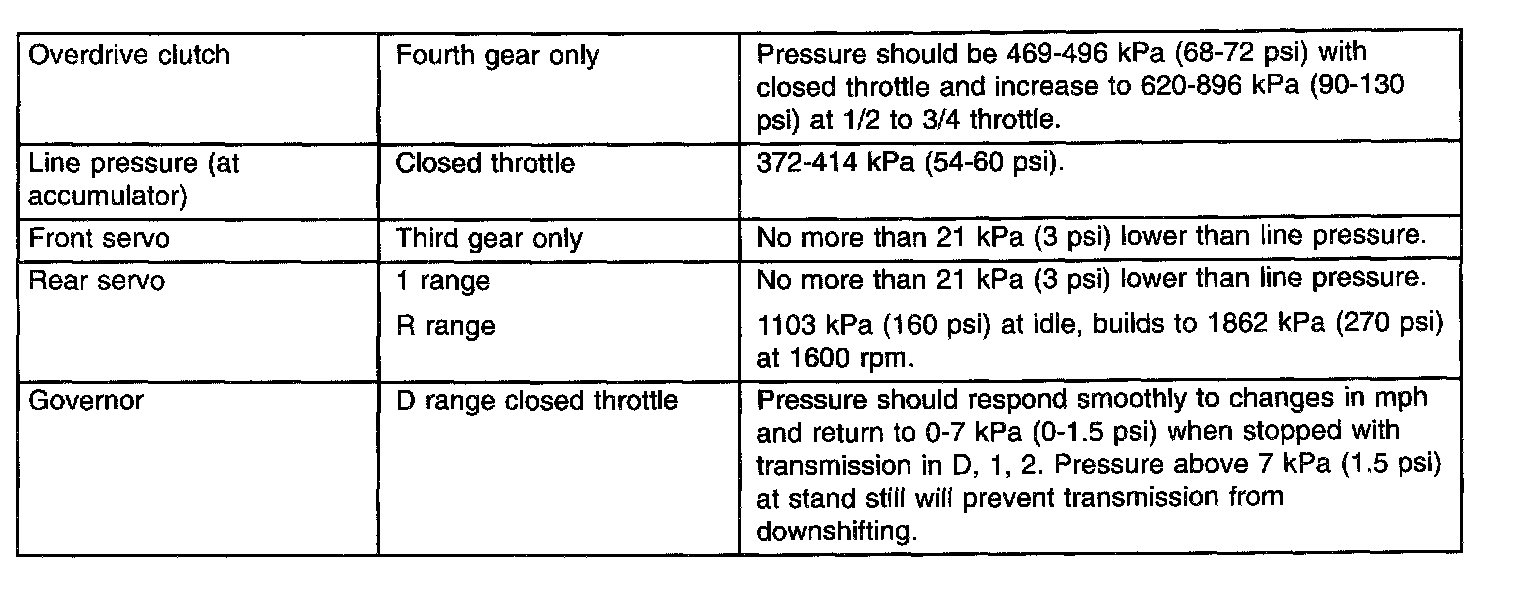

Pressure Test:
PRESSURE TEST
