Torque and Service Specifications

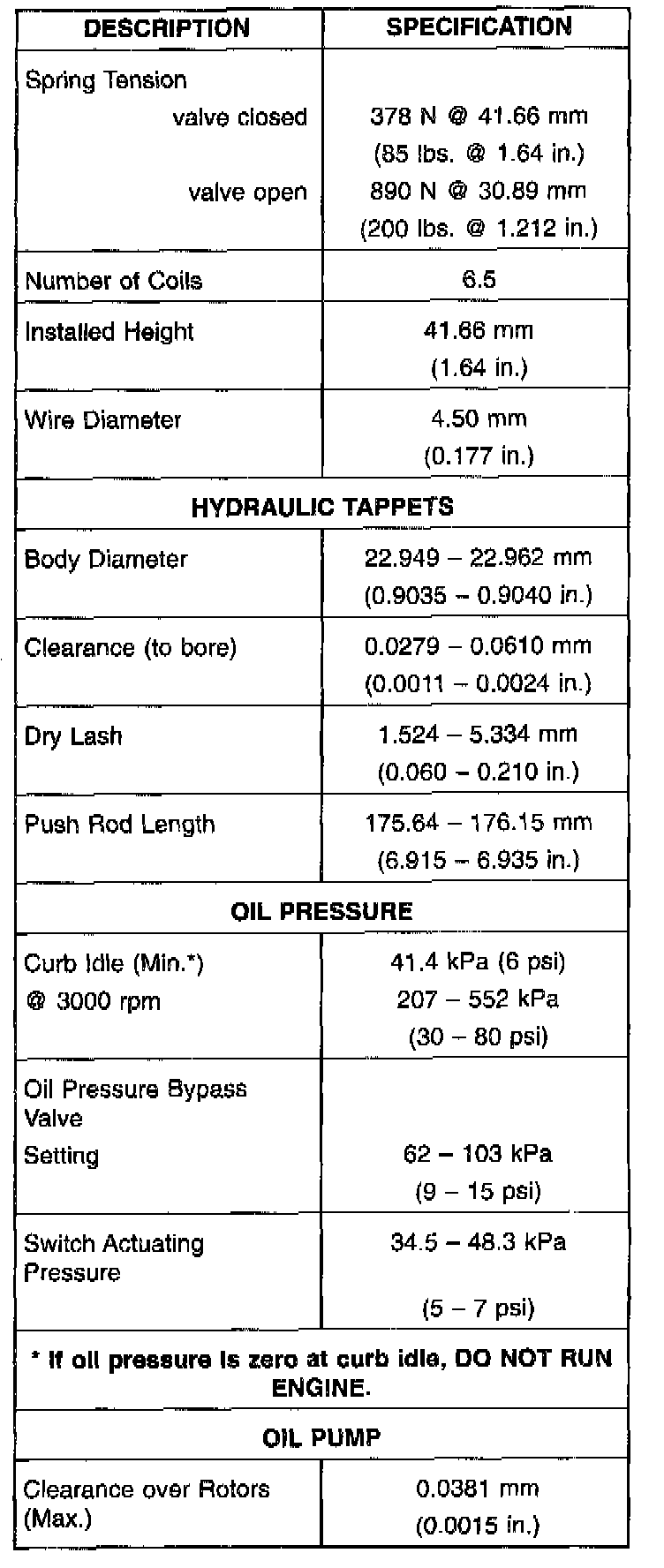

Dimensional Specifications

Part 1 Of 2:





Part 2 Of 2:





Oversize and Undersize Engine Component Marking Chart

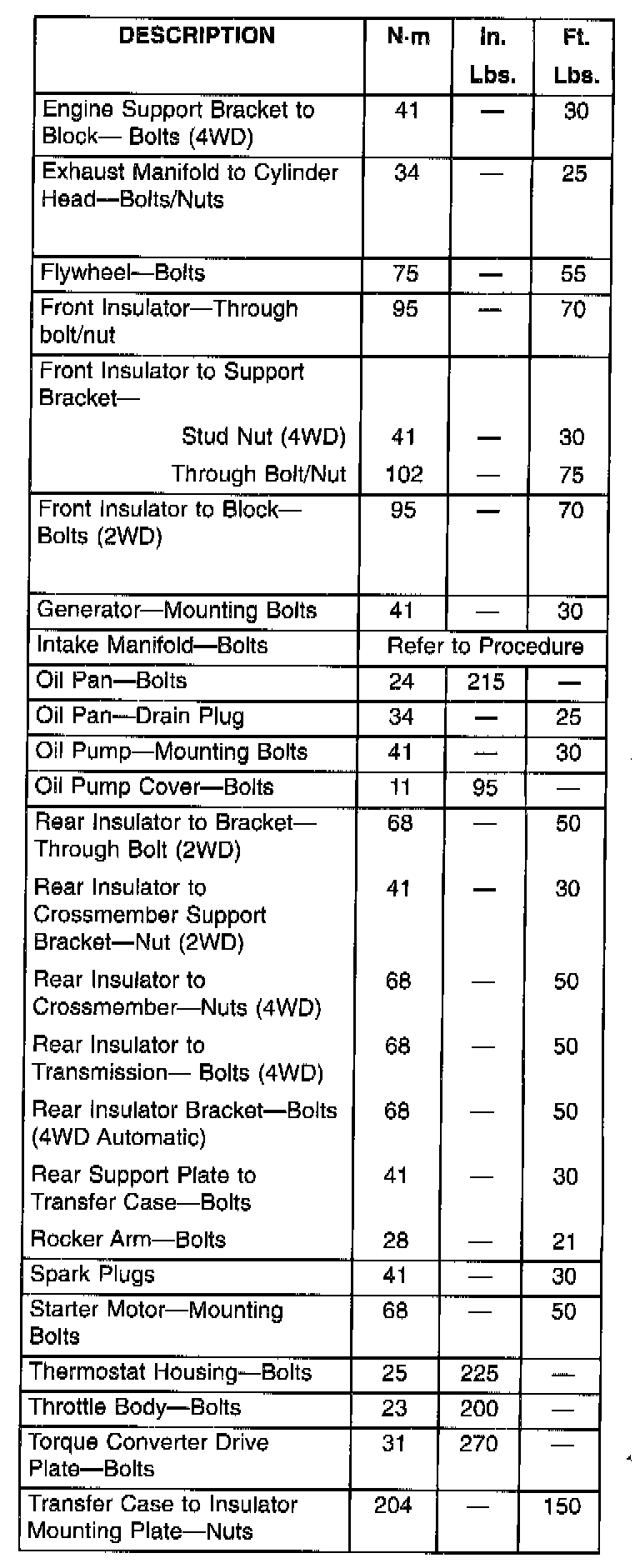

Torque Specifications
