Bus (+) & Bus (-) Open

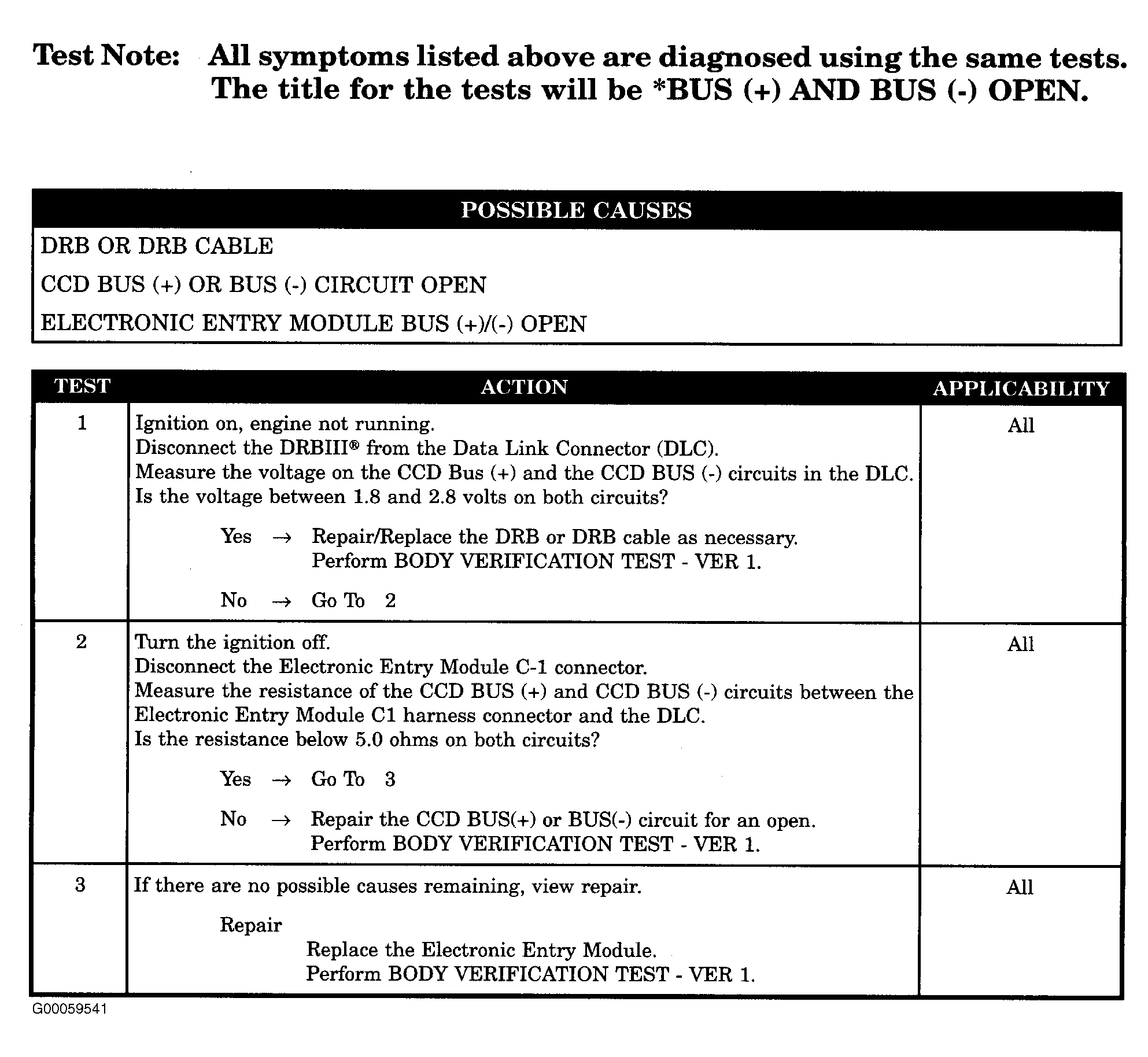

Fig 1: BUS (+) & BUS (-) Open
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
