Bus Failure Message - Short To 5 Volts

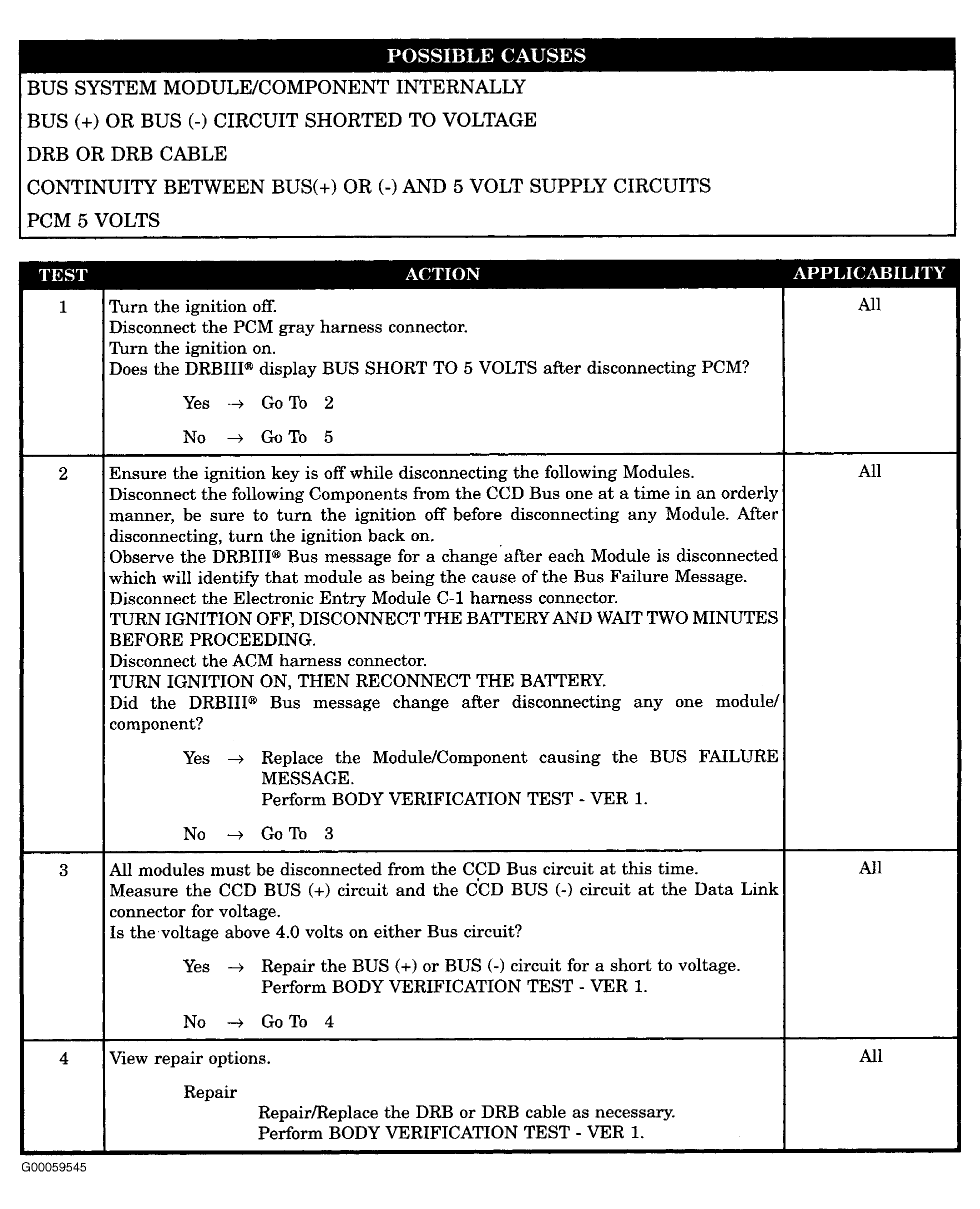

Fig 1: Short To 5 Volts (1 Of 2)
G00059545Courtesy of DAIMLERCHRYSLER CORPORATION

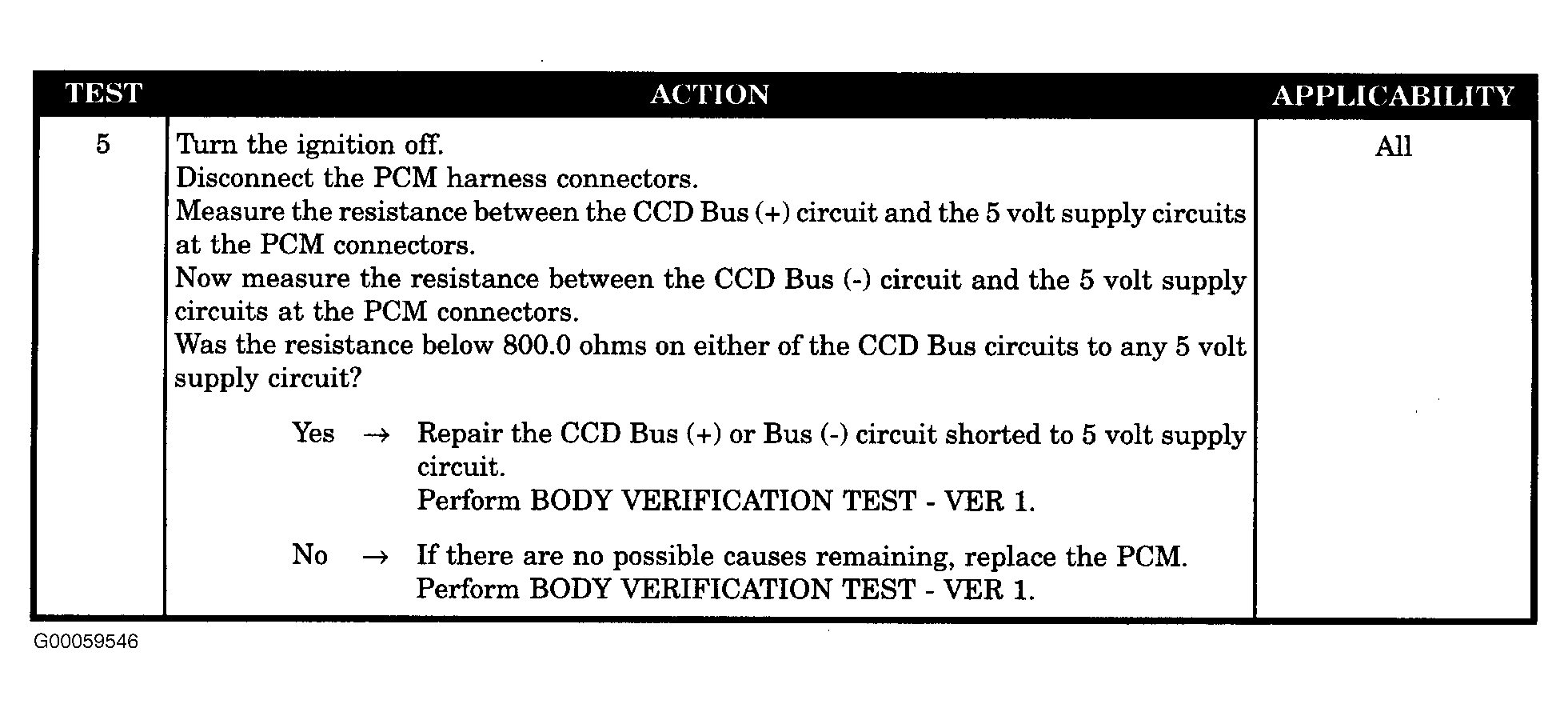

Fig 2: Short To 5 Volts (2 Of 2)
G00059546Courtesy of DAIMLERCHRYSLER CORPORATION
