Bus Failure Message - Short To Ground

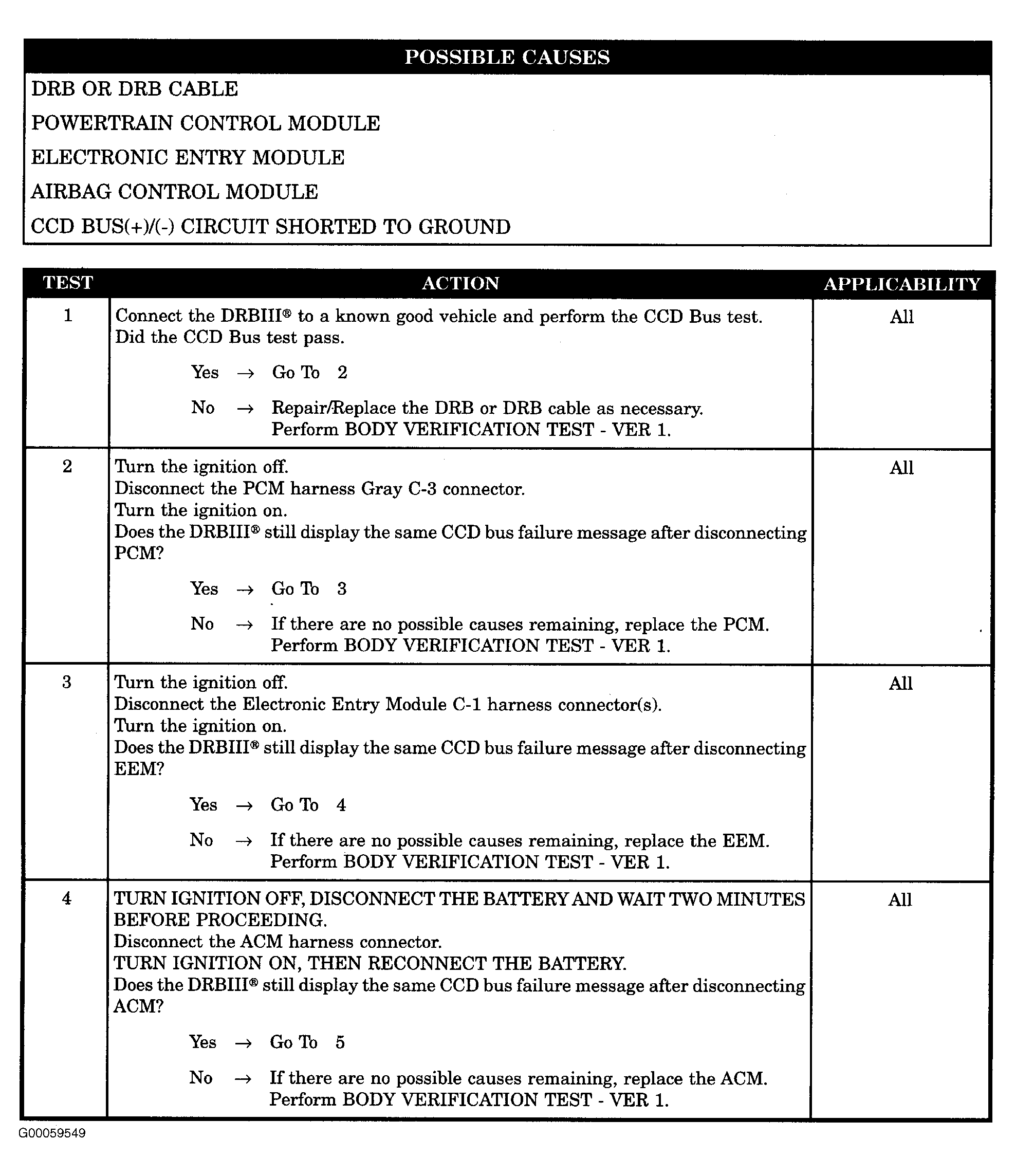

Fig 1: Short To Ground (1 Of 2)
G00059549Courtesy of DAIMLERCHRYSLER CORPORATION

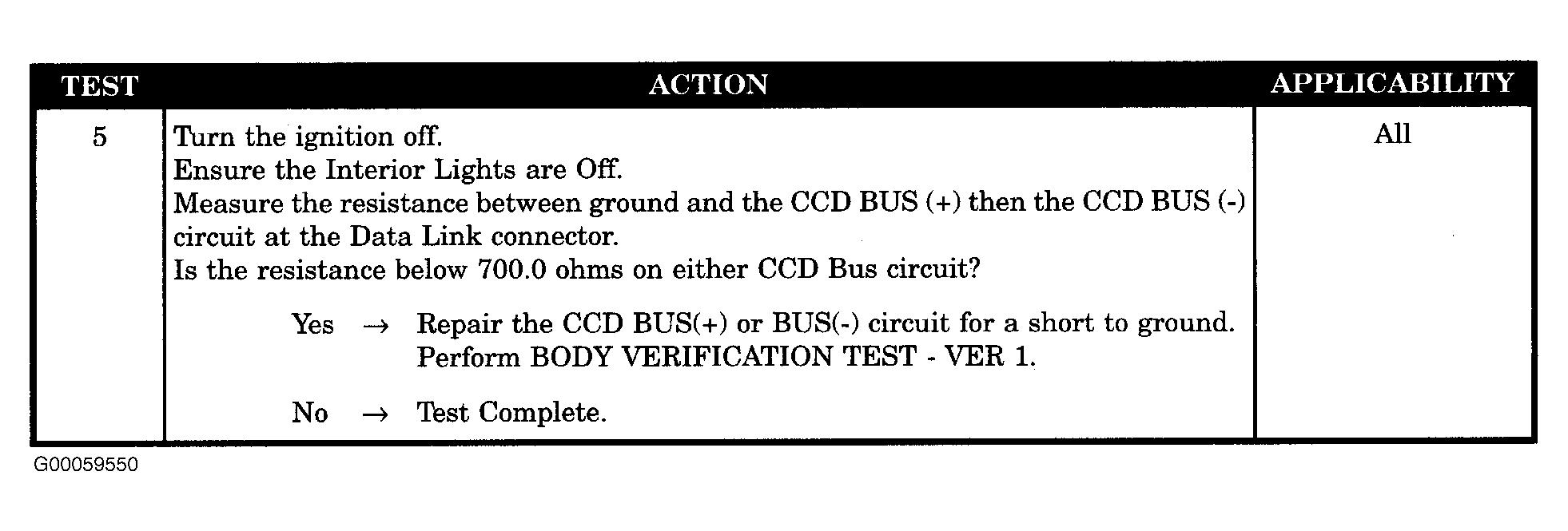

Fig 2: Short To Ground (2 Of 2)
G00059550Courtesy of DAIMLERCHRYSLER CORPORATION
