Checking Minimum Airflow

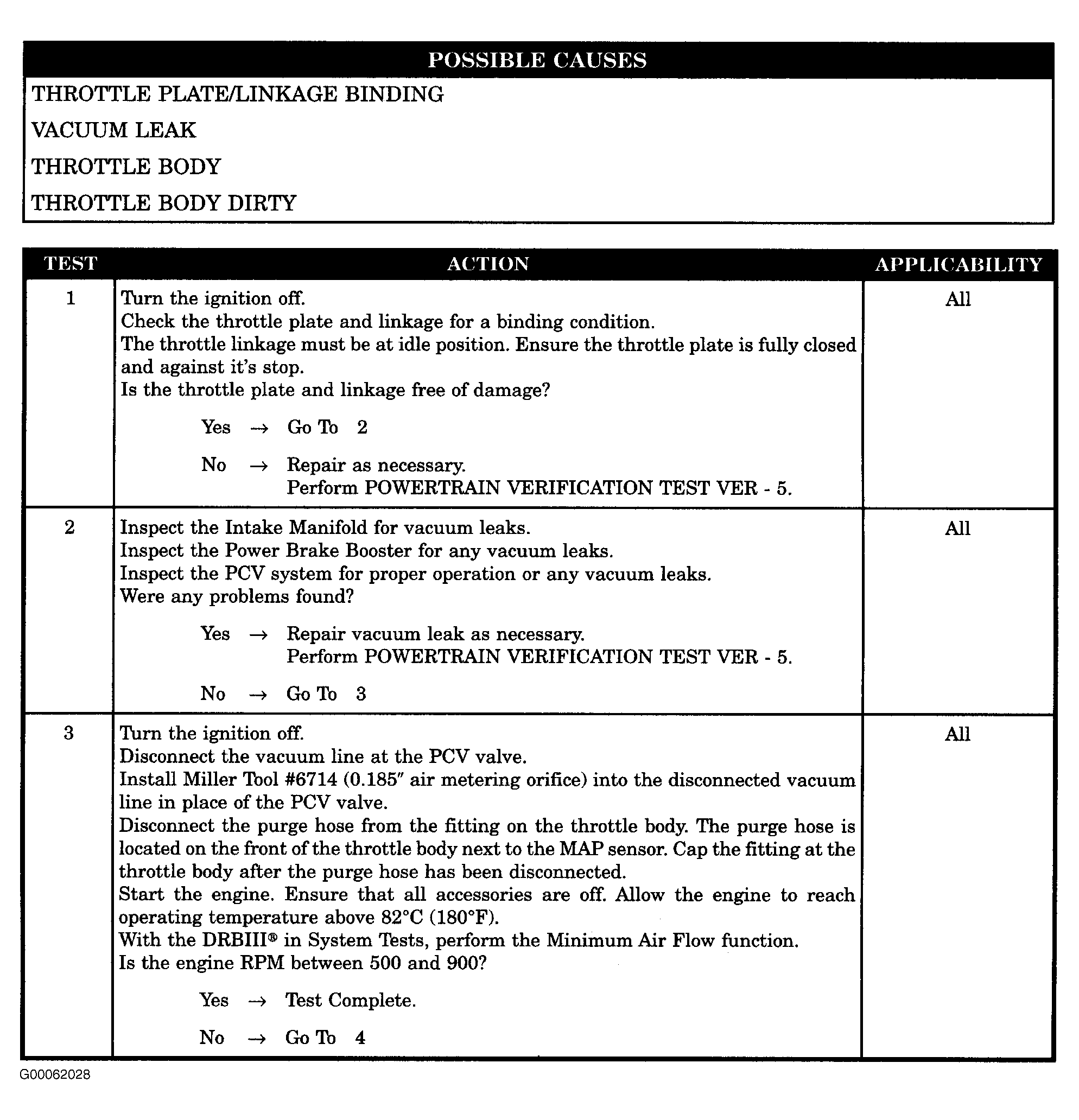

Fig 1: Checking Minimum Airflow (1 Of 2)
G00062028Courtesy of DAIMLERCHRYSLER CORPORATION

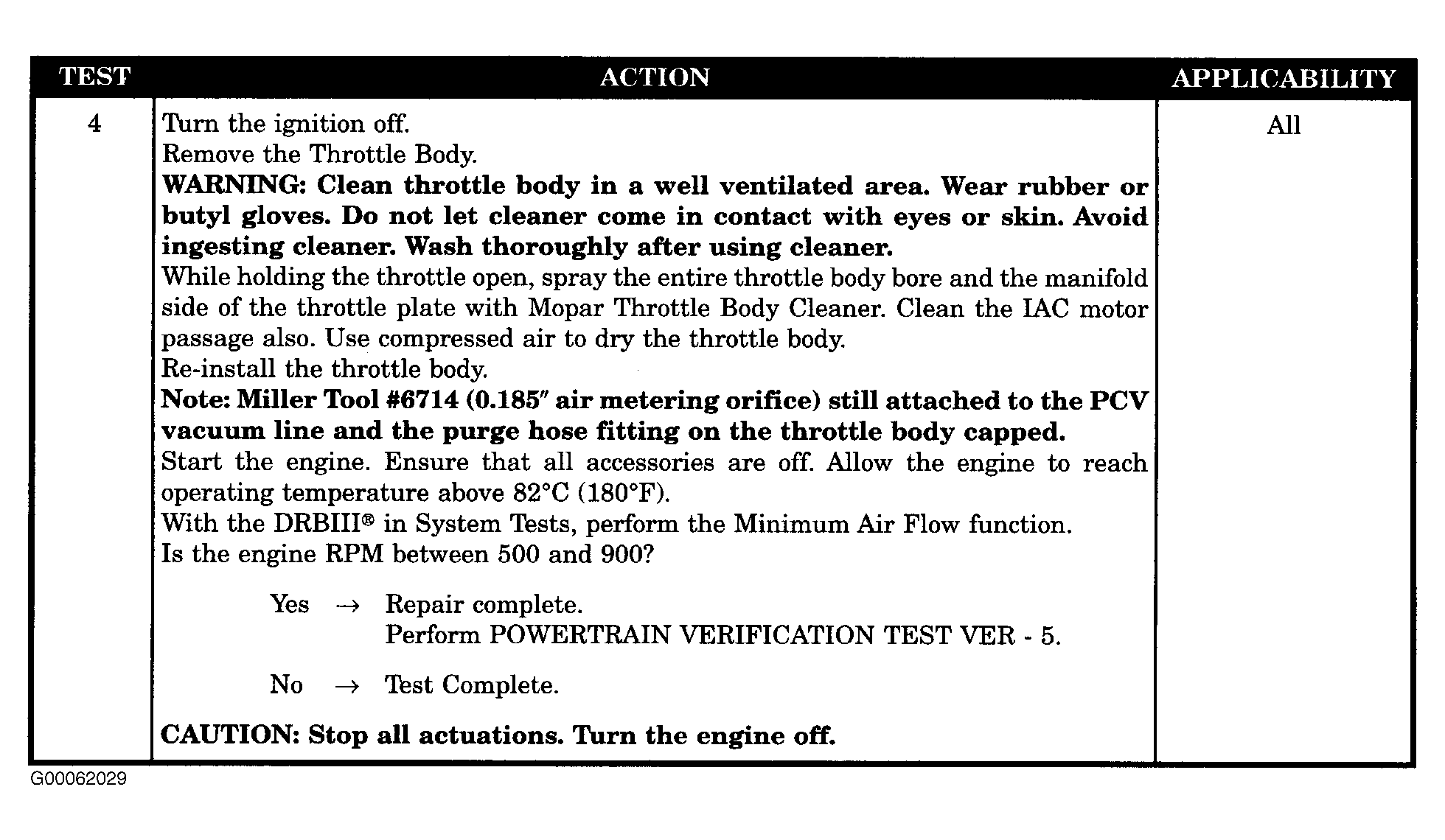

Fig 2: Checking Minimum Airflow (2 Of 2)
G00062029Courtesy of DAIMLERCHRYSLER CORPORATION
