Checking Pcm Power & Grounds

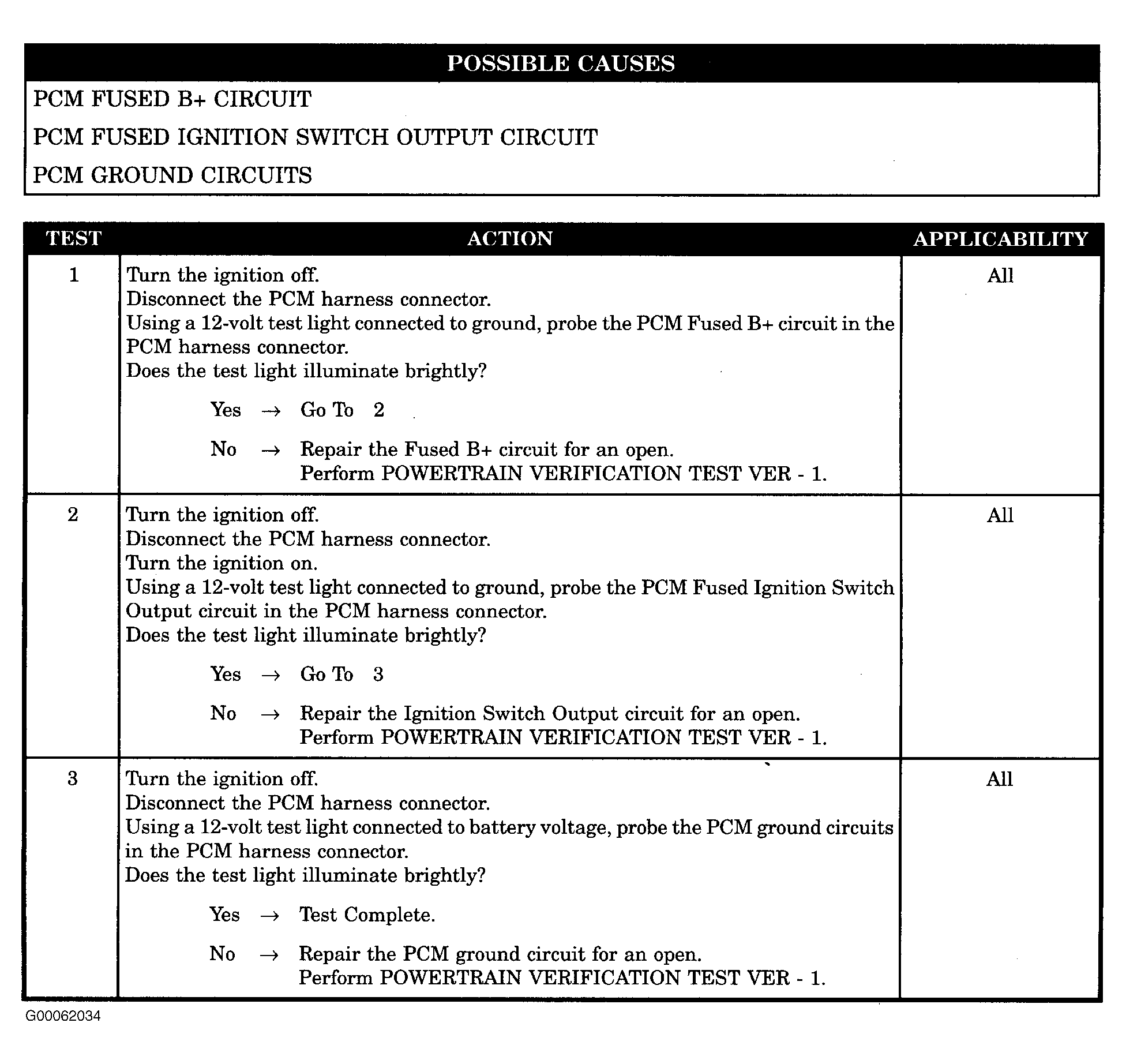

Fig 1: Checking PCM Power & Grounds
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
