Powertrain Test VER-2

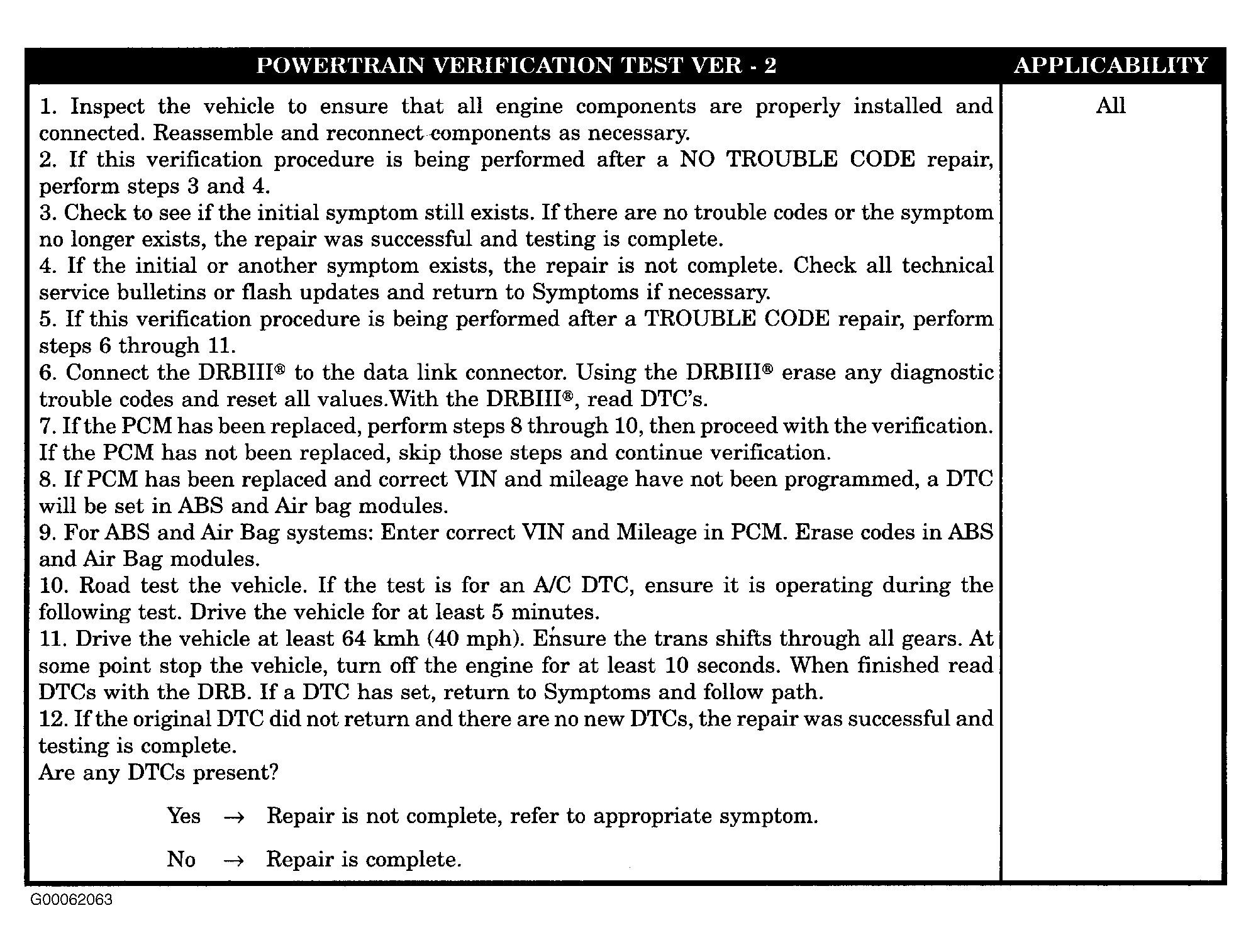

Fig 1: Powertrain Verification Test VER-2
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
