Throttle Position Sensor

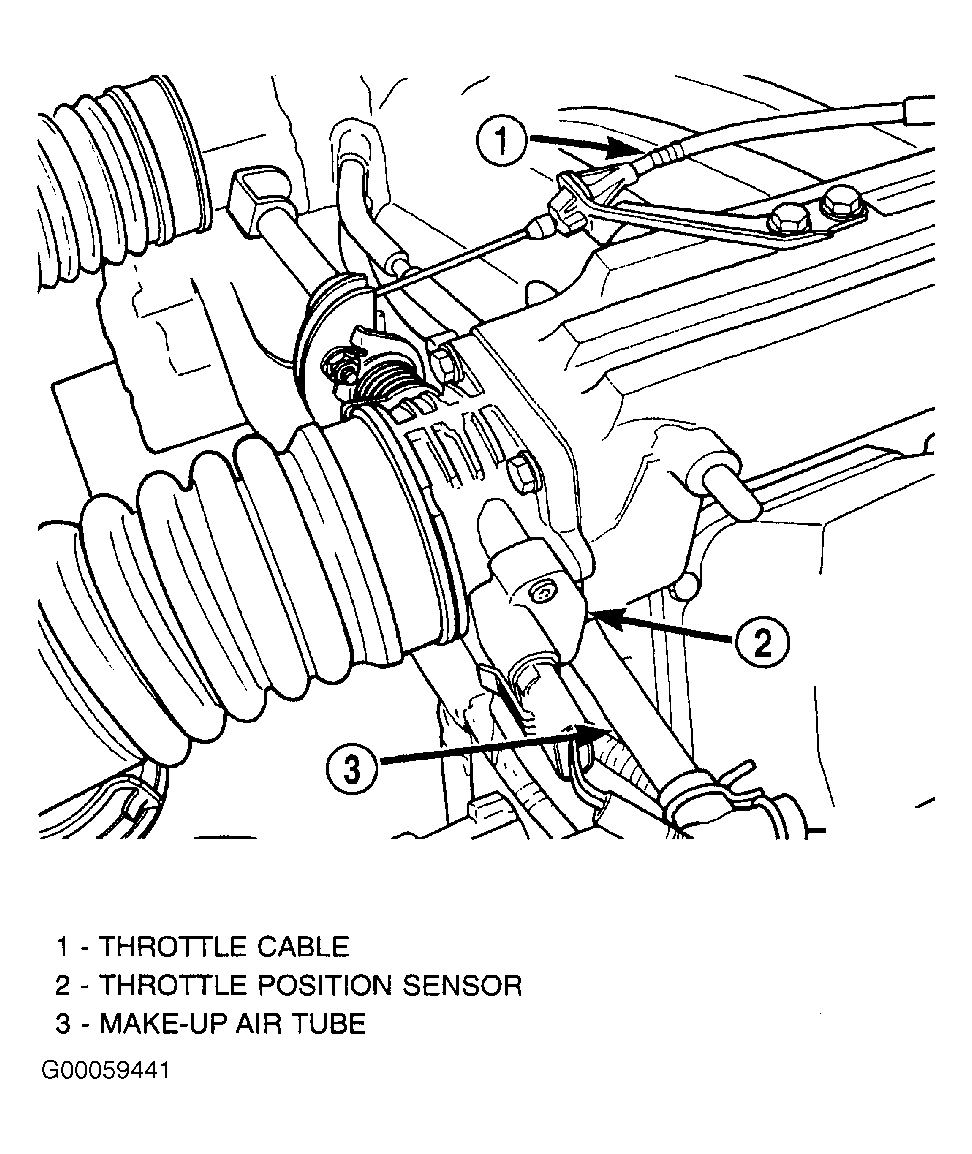

Fig 1: Throttle Position Sensor

Courtesy of DAIMLERCHRYSLER CORPORATION

The TPS is mounted on drivers side throttle body. The sensor connects to throttle blade shaft. See Fig 1 . The TPS is a variable resistor that provides Powertrain Control Module (PCM) with an input signal (voltage).
