Not Receiving Bus Messages Correctly: Testing

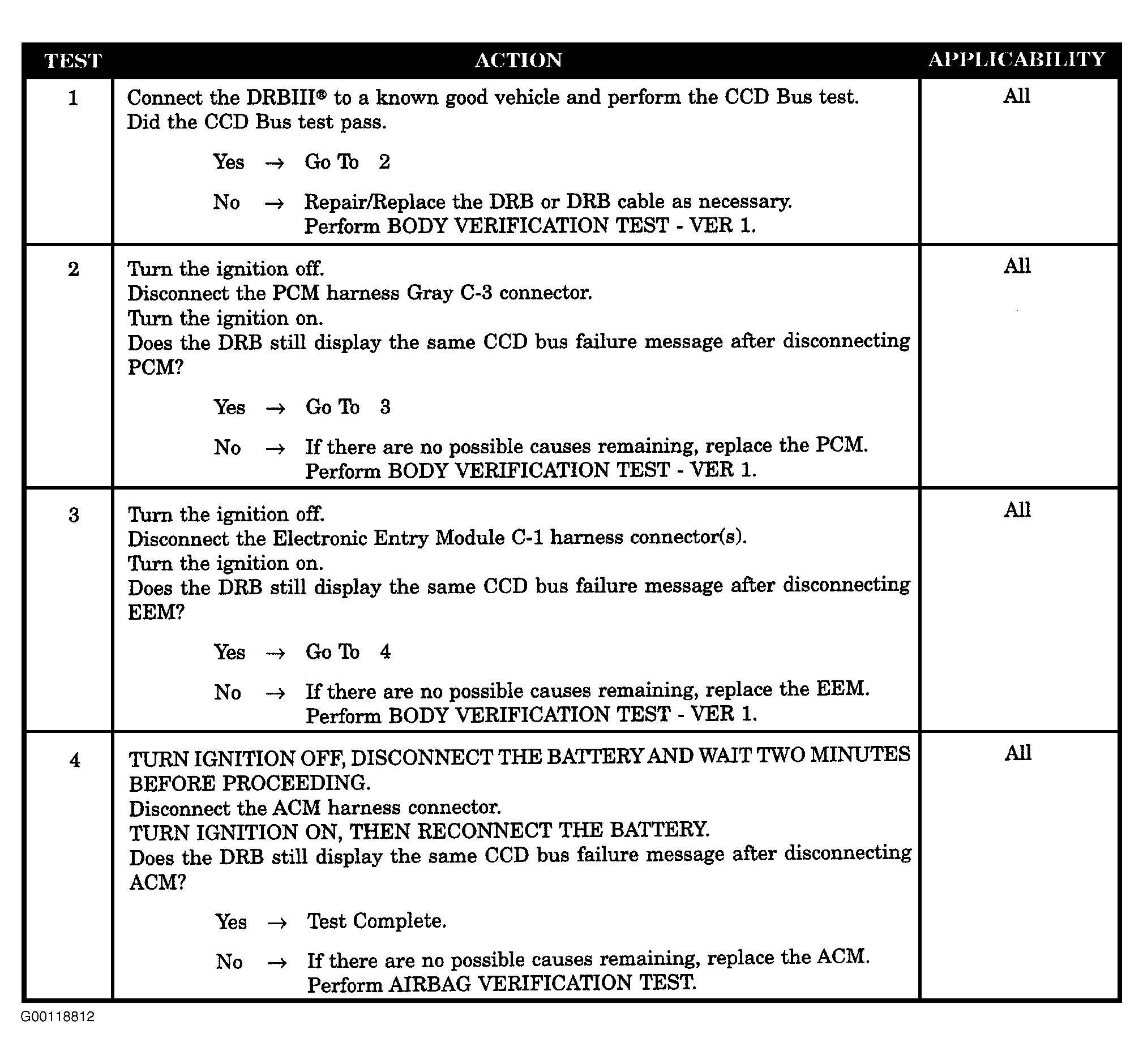

Fig 1: Not Receiving BUS Messages Correctly Test
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
