Airbag System

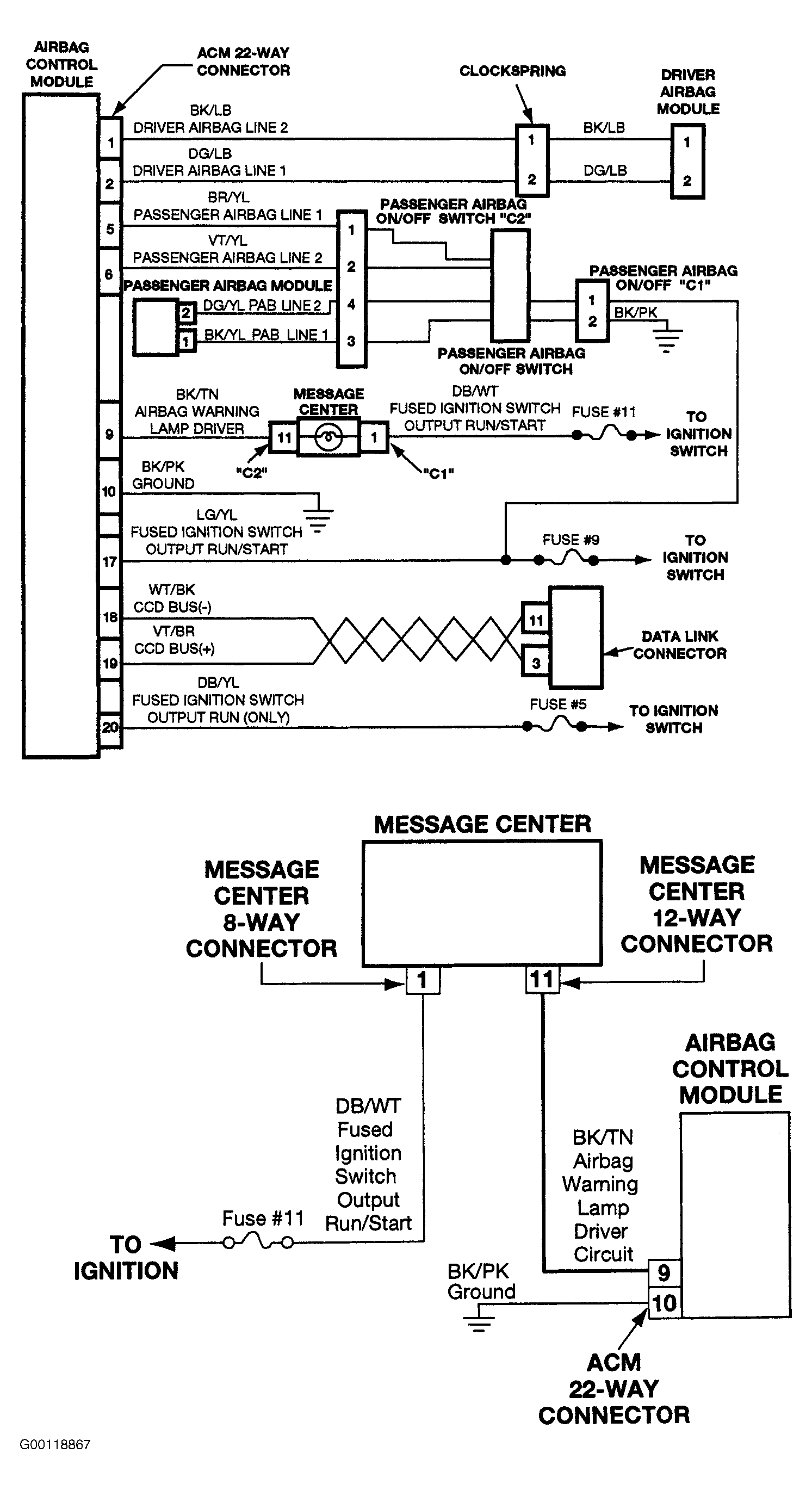

Fig 1: Airbag System Wiring Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
