Vehicle Communication System

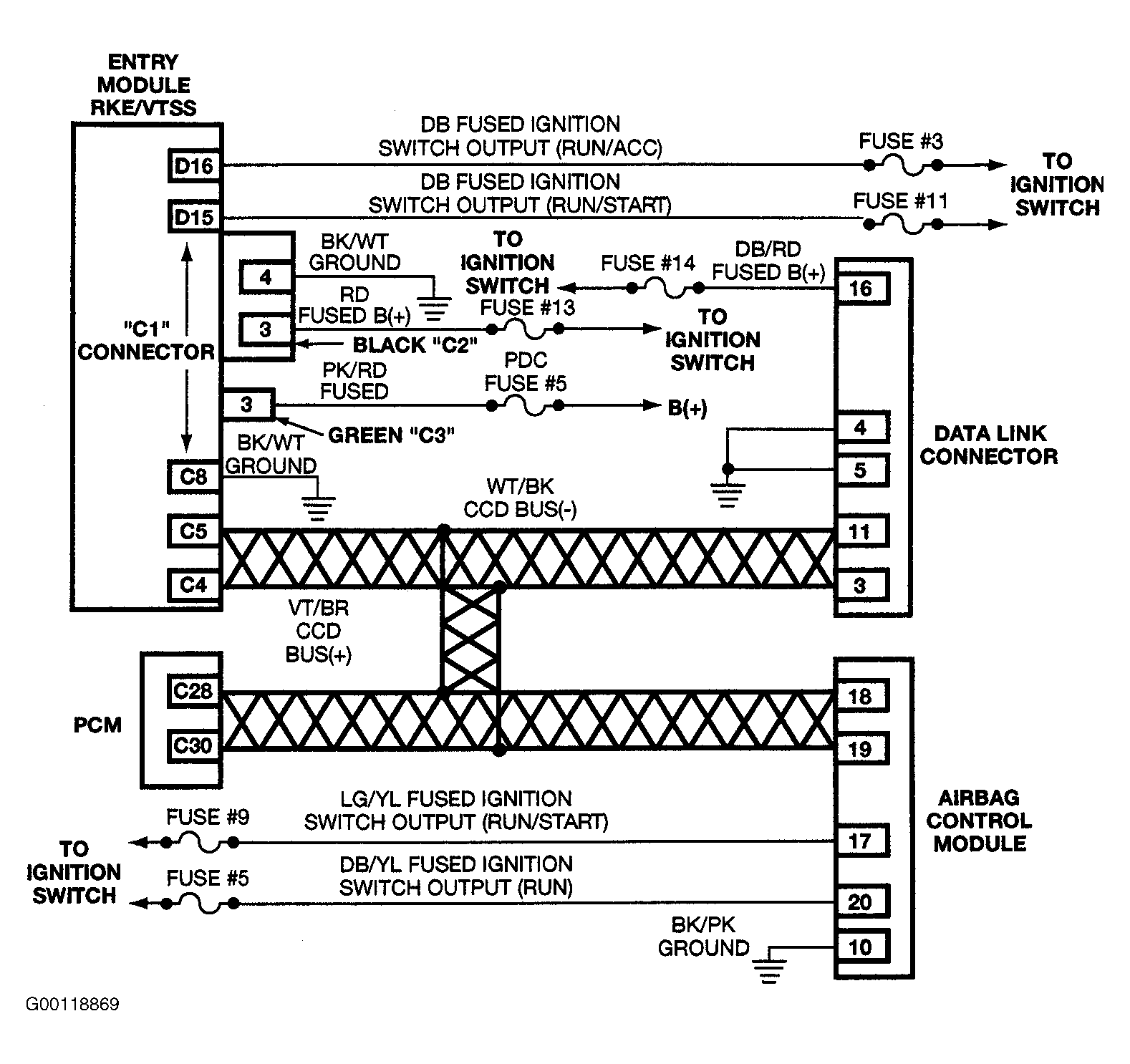

Fig 1: Vehicle Communication System Wiring Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
