DTC P1489: High Speed Fan Control Relay Circuit

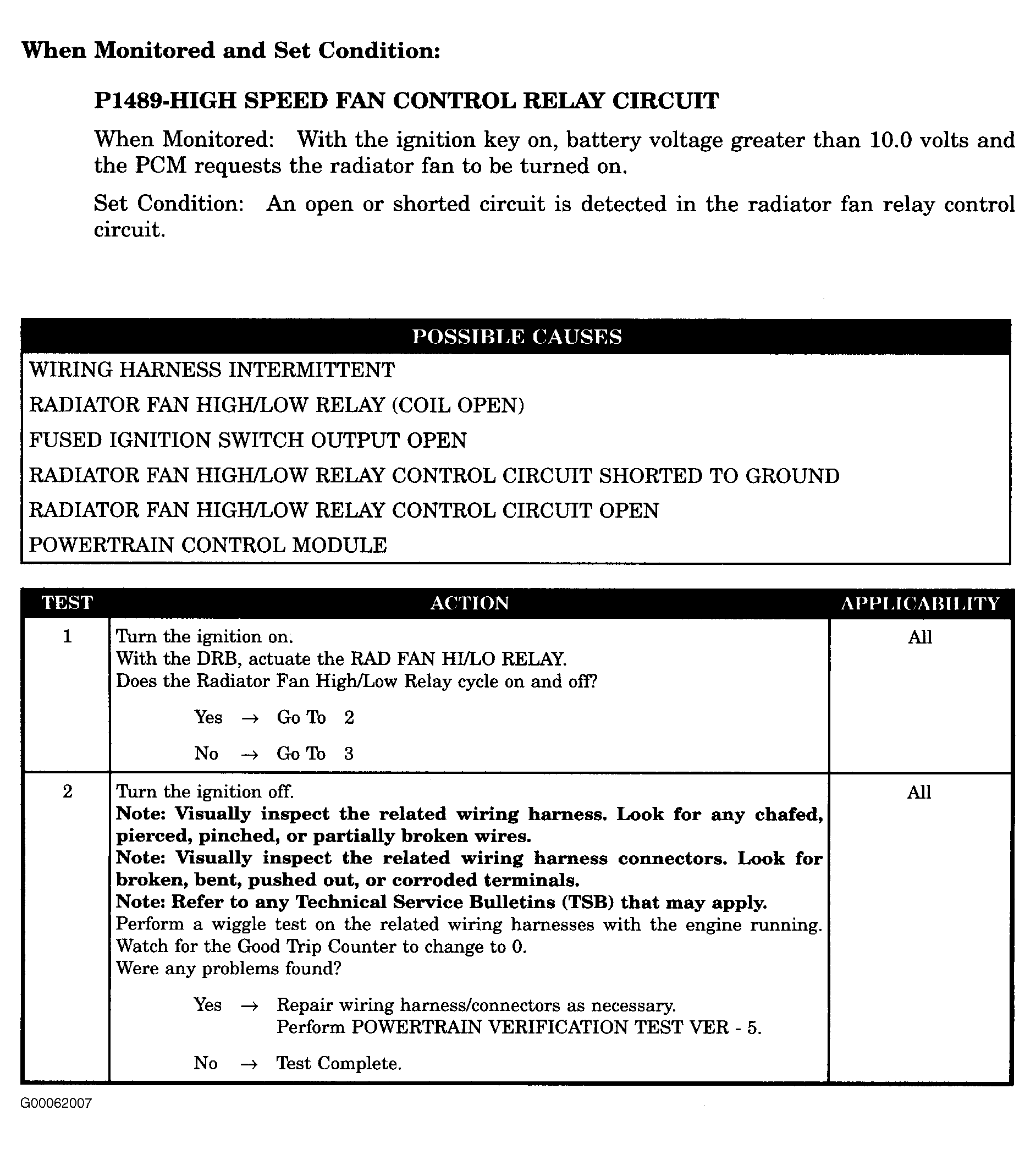

Fig 1: DTC P1489: High Speed Fan Control Relay Circuit (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

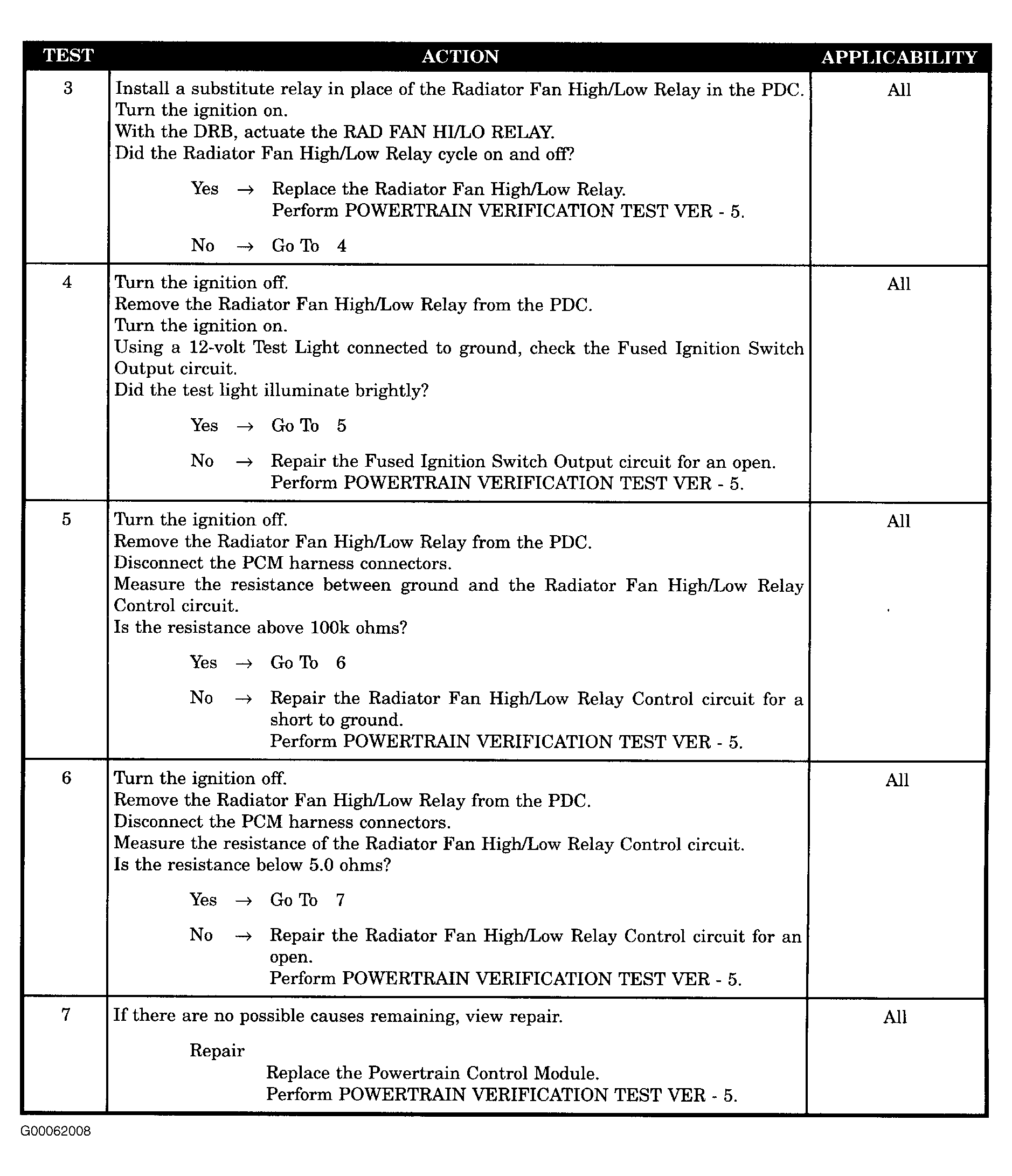

Fig 2: DTC P1489: High Speed Fan Control Relay Circuit (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
