Ignition Failure Sensor

NOTE: Use of an analog ohmmeter is suggested.

Locate and disconnect ignition failure sensor connector. See Fig 1 . Connect ohmmeter between ignition failure sensor connector terminals No. 3 and 4 (component side). See Fig 2 . Resistance should be 0.1 ohm or less. If resistance is not as specified, replace ignition failure sensor.

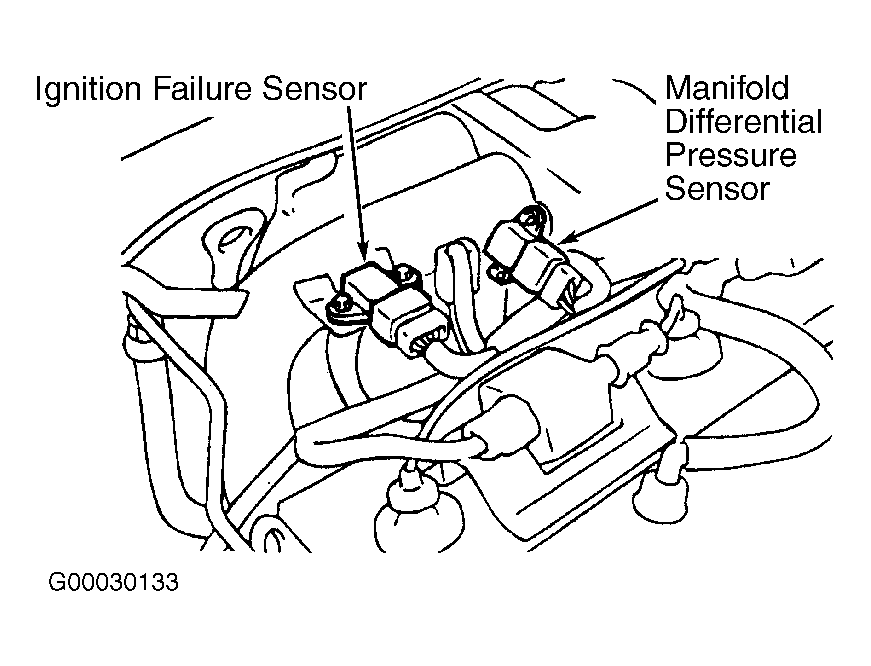

Fig 1: Locating Ignition Failure Sensor & Manifold Differential Pressure Sensor

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Testing Ignition Failure Sensor

Courtesy of DAIMLERCHRYSLER CORPORATION
