Power Window Switch: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel center bezel (Fig 1 ). Disconnect the cigar lighter, power window switch and rear window defogger switch (coupe) wire connectors.

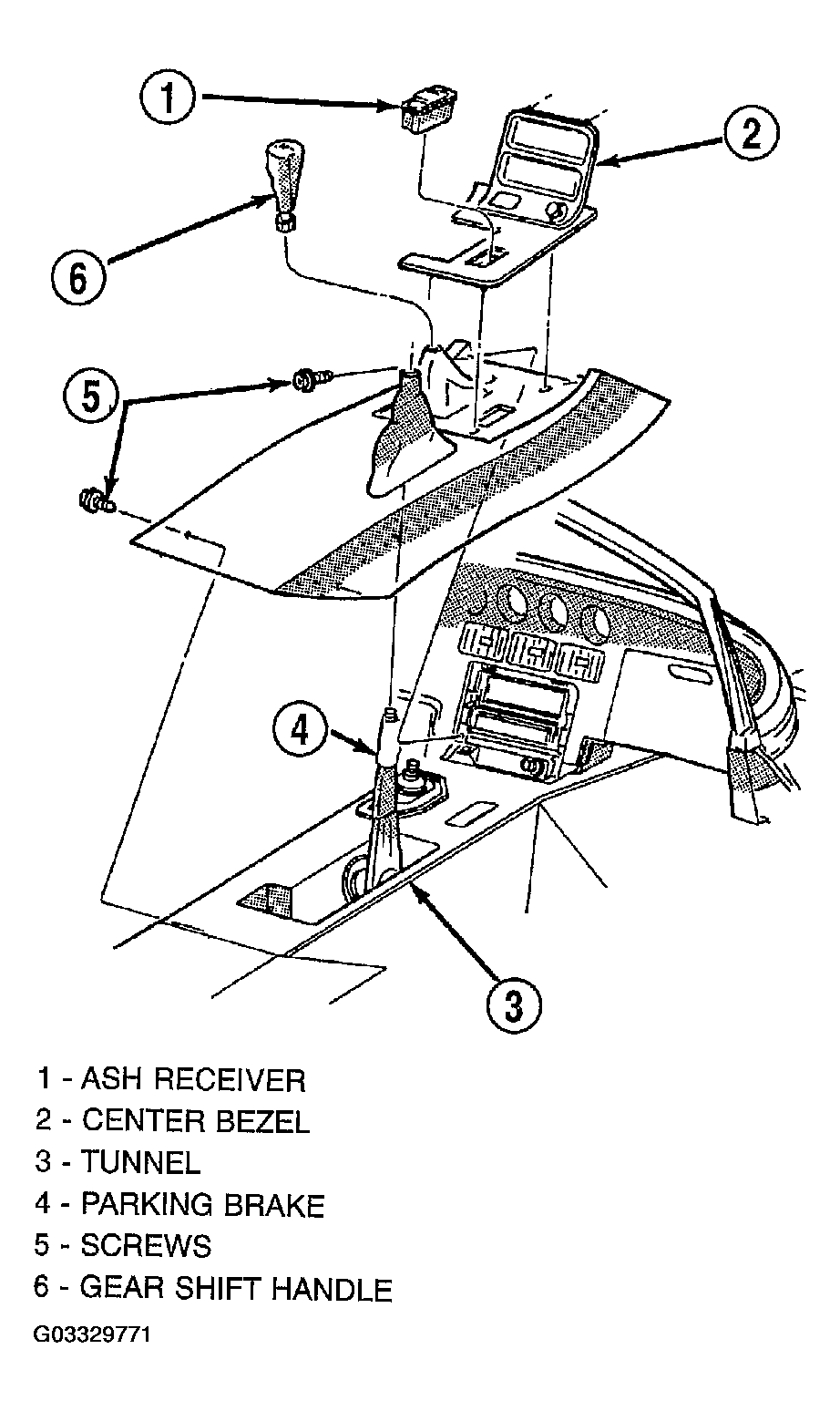

    Fig 1: Identifying Center Bezel
    G03329771Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove attaching screws.
  4. Remove window switch.
