Removal-Replacing With New Sensor

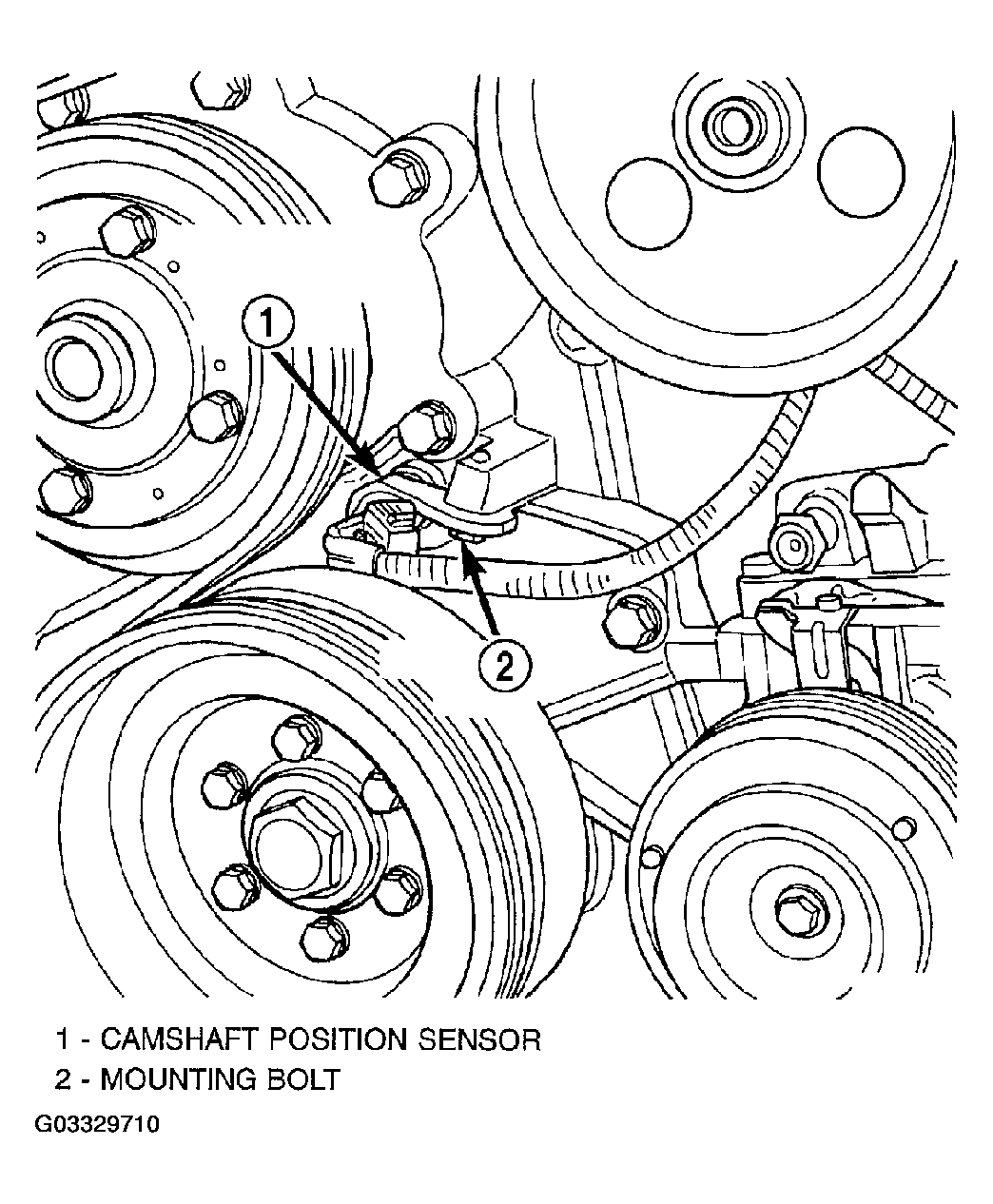

The camshaft position sensor is located on the timing chain case/cover on the left-front side of the engine (Figure ).

If a new replacement camshaft position sensor is to be installed, use this procedure.

1. Disconnect the sensor wiring harness connector from sensor.
2. Remove the sensor mounting bolt (Figure ).
3. Carefully pry the sensor from the timing chain case/cover in a rocking action with two small screwdrivers.
4. Remove the sensor from vehicle.
