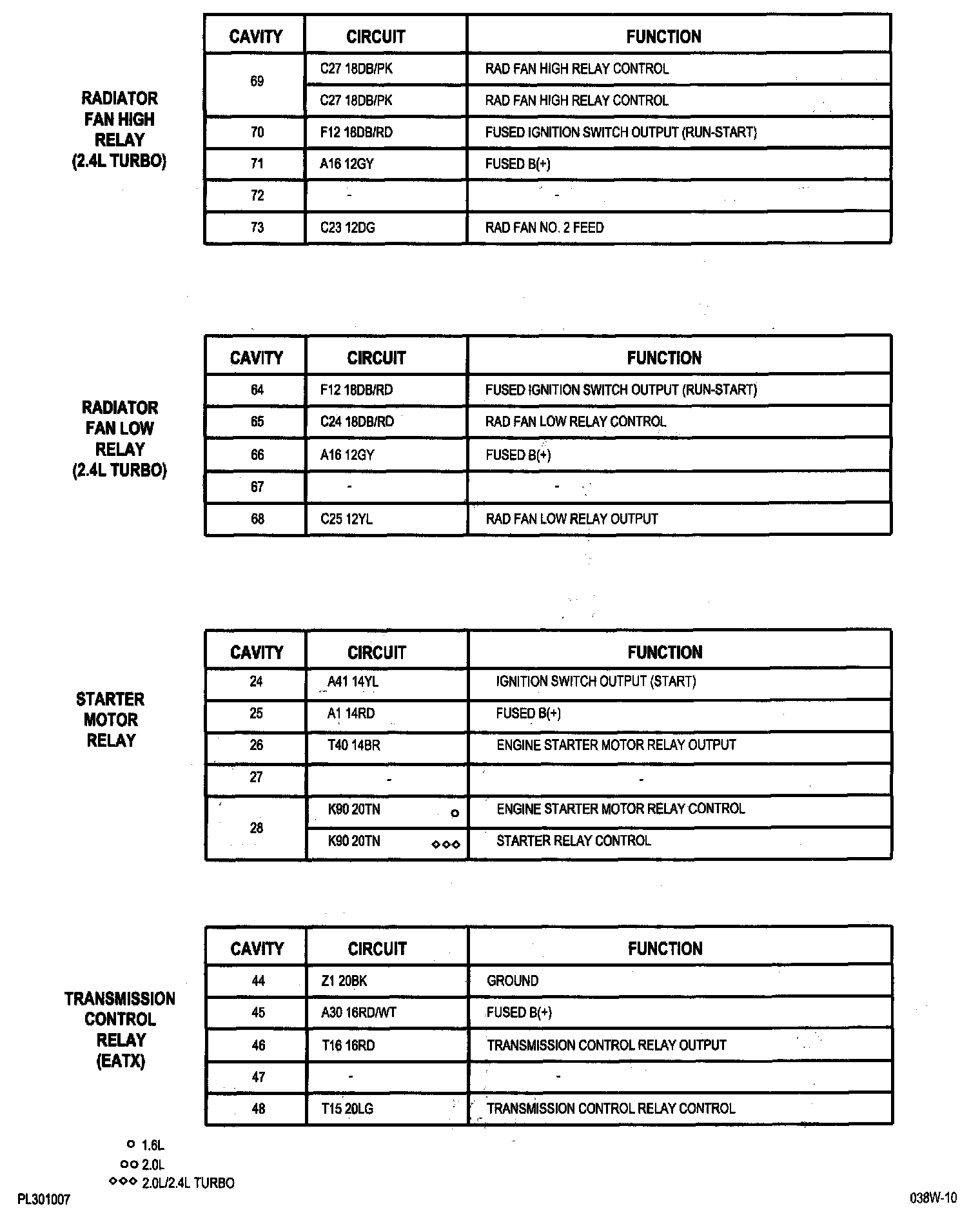

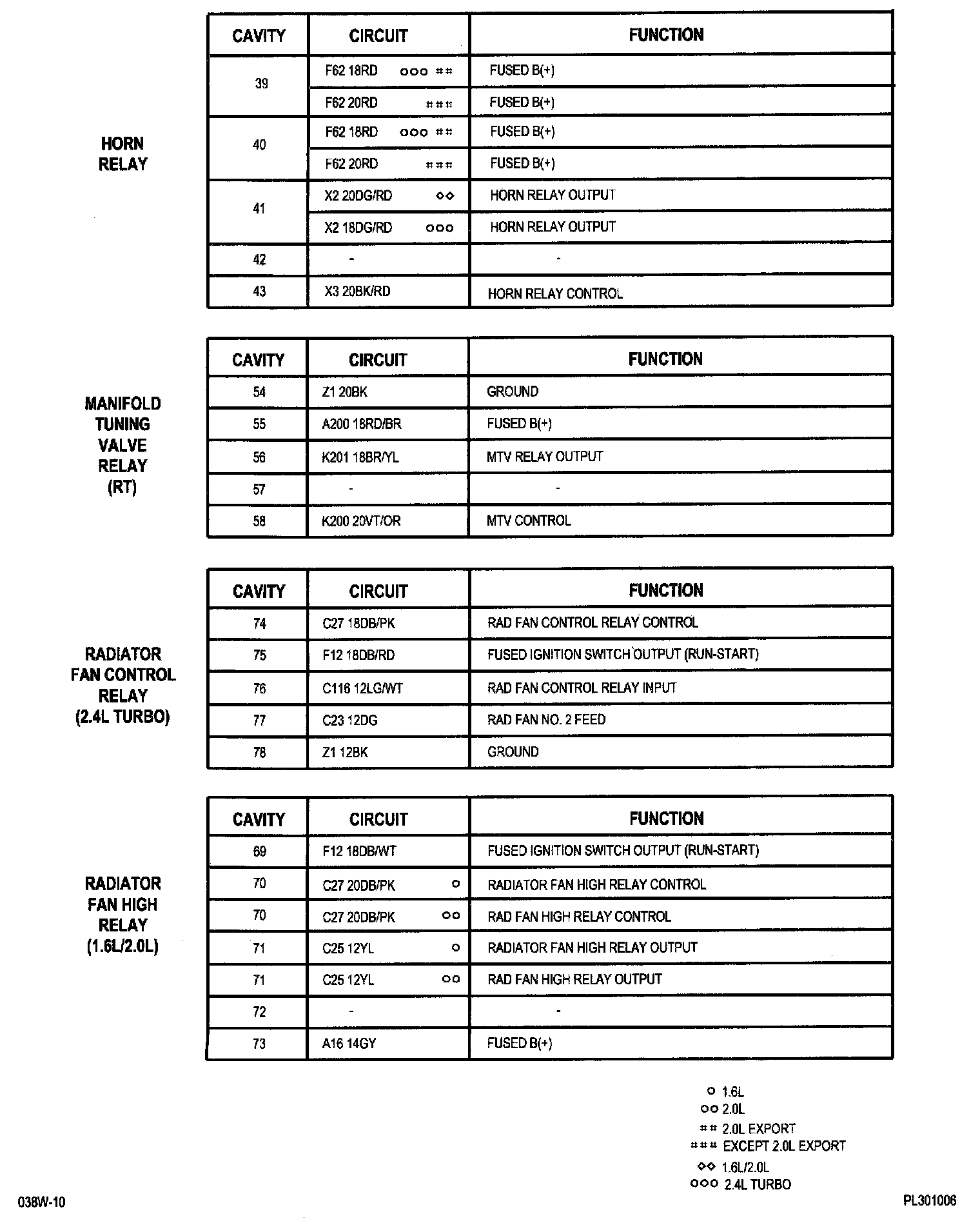

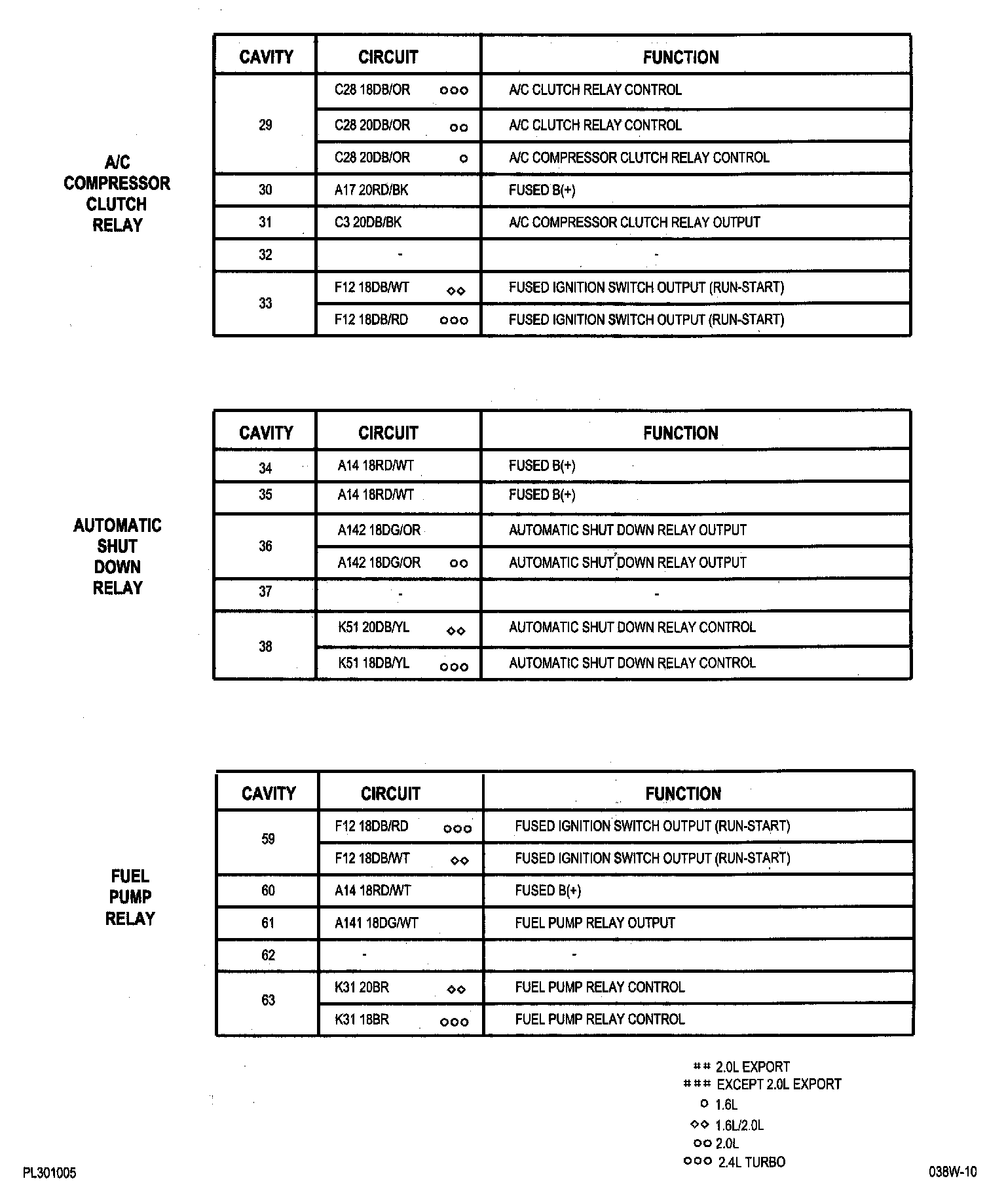

Power Distribution Module

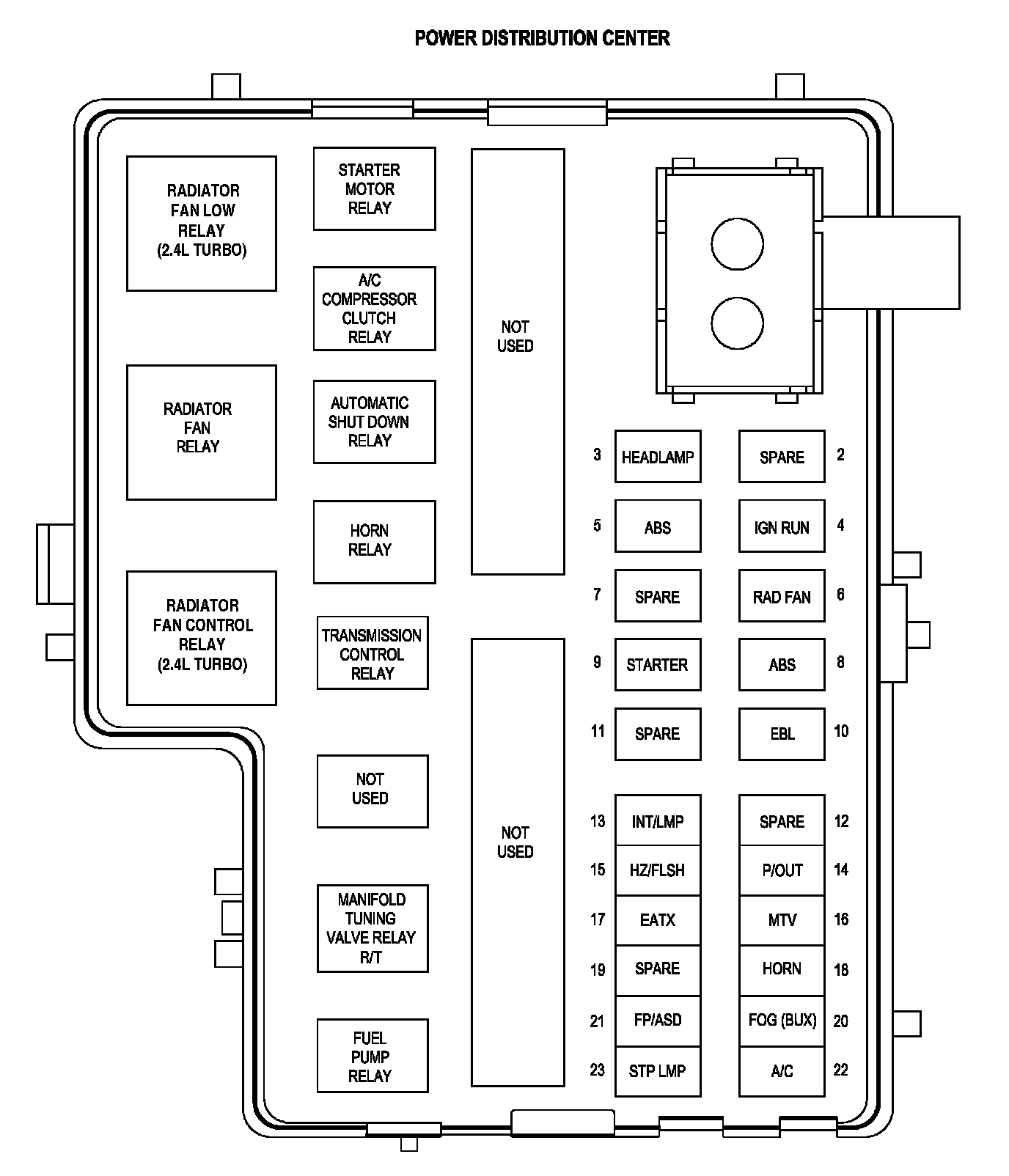

Power Distribution Center:

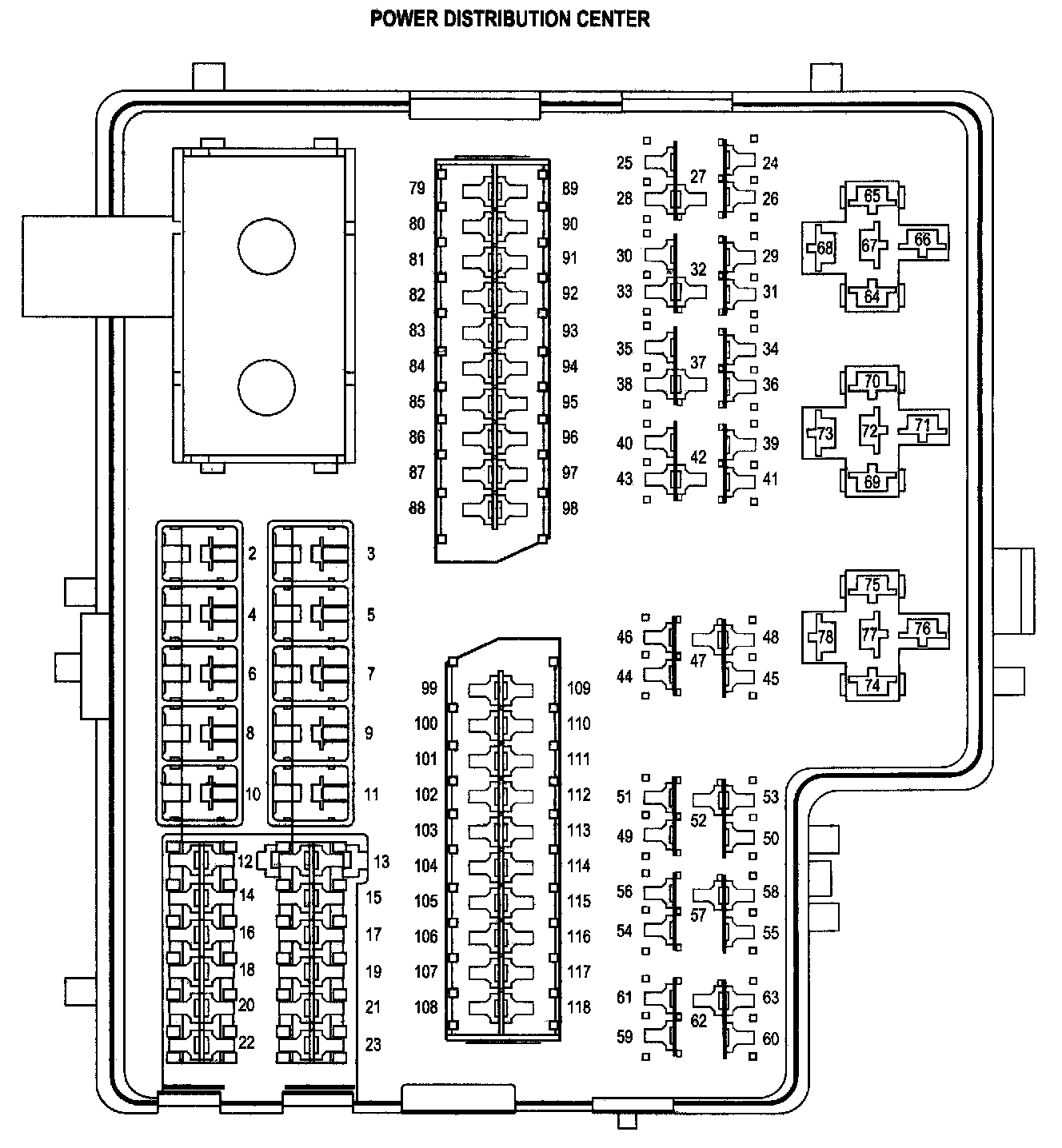

Power Distribution Center:

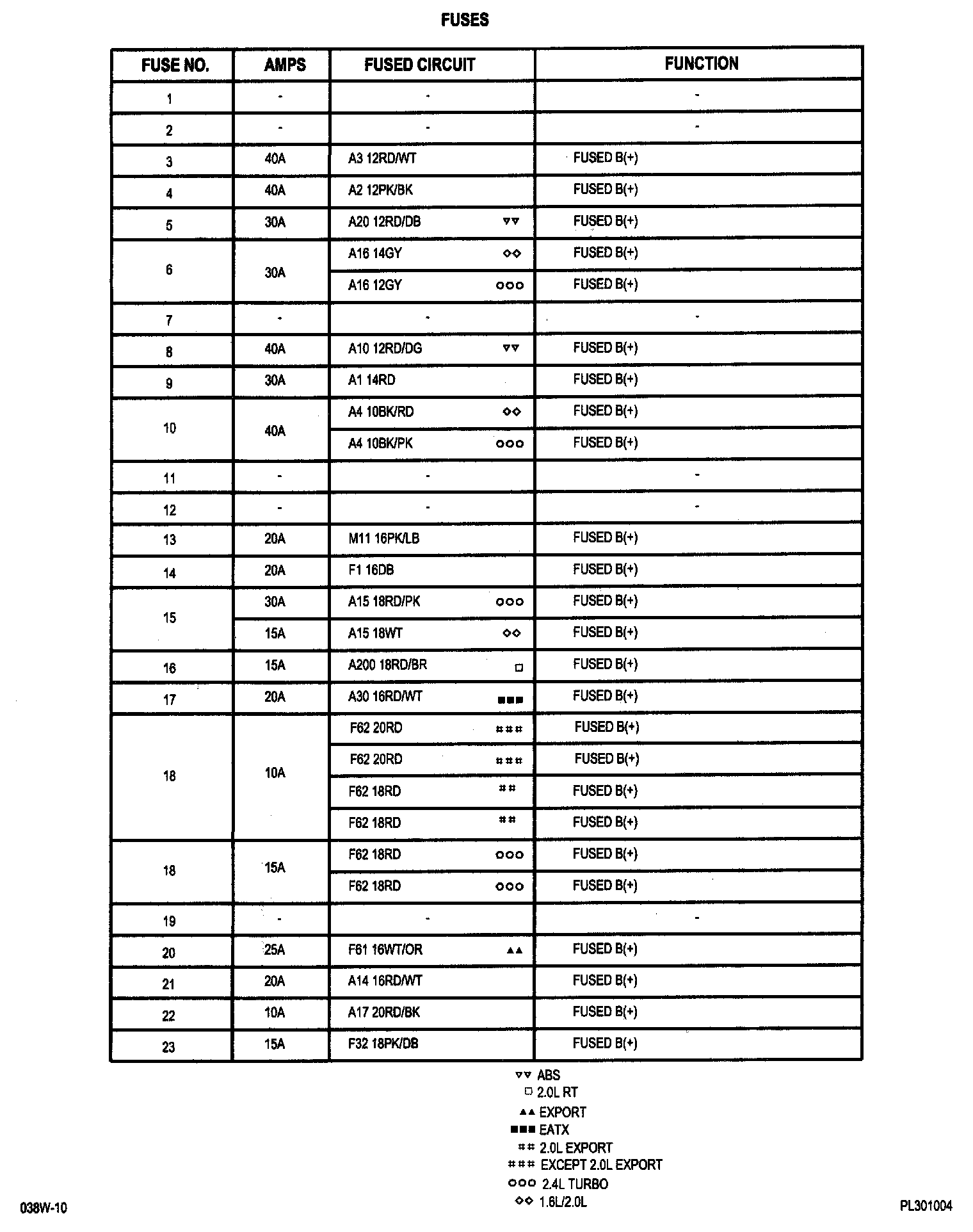

Fuses (PDC):
8w-10-5:
8w-10-6:
8w-10-7:
