Body Control Module

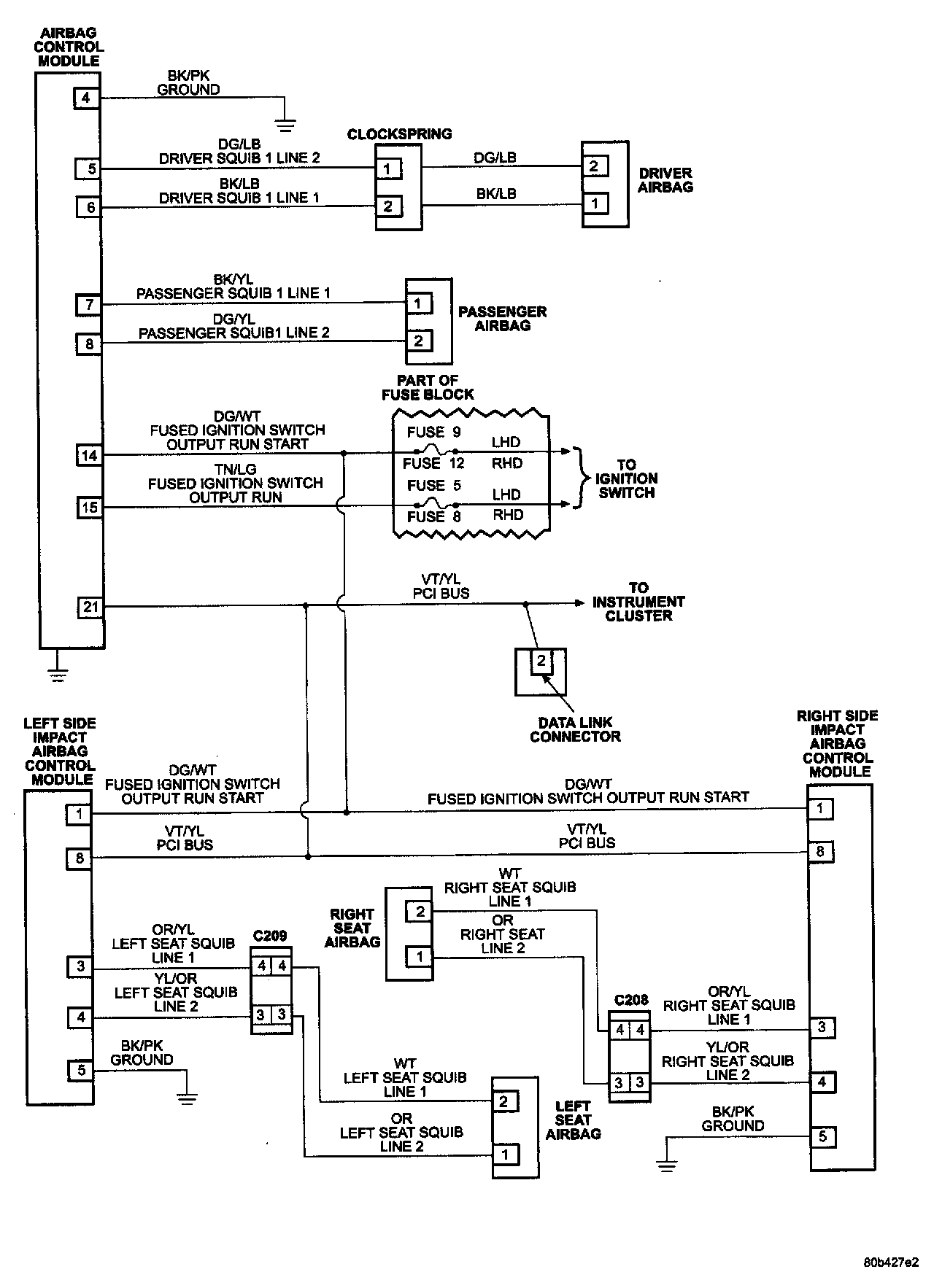

Airbag System:

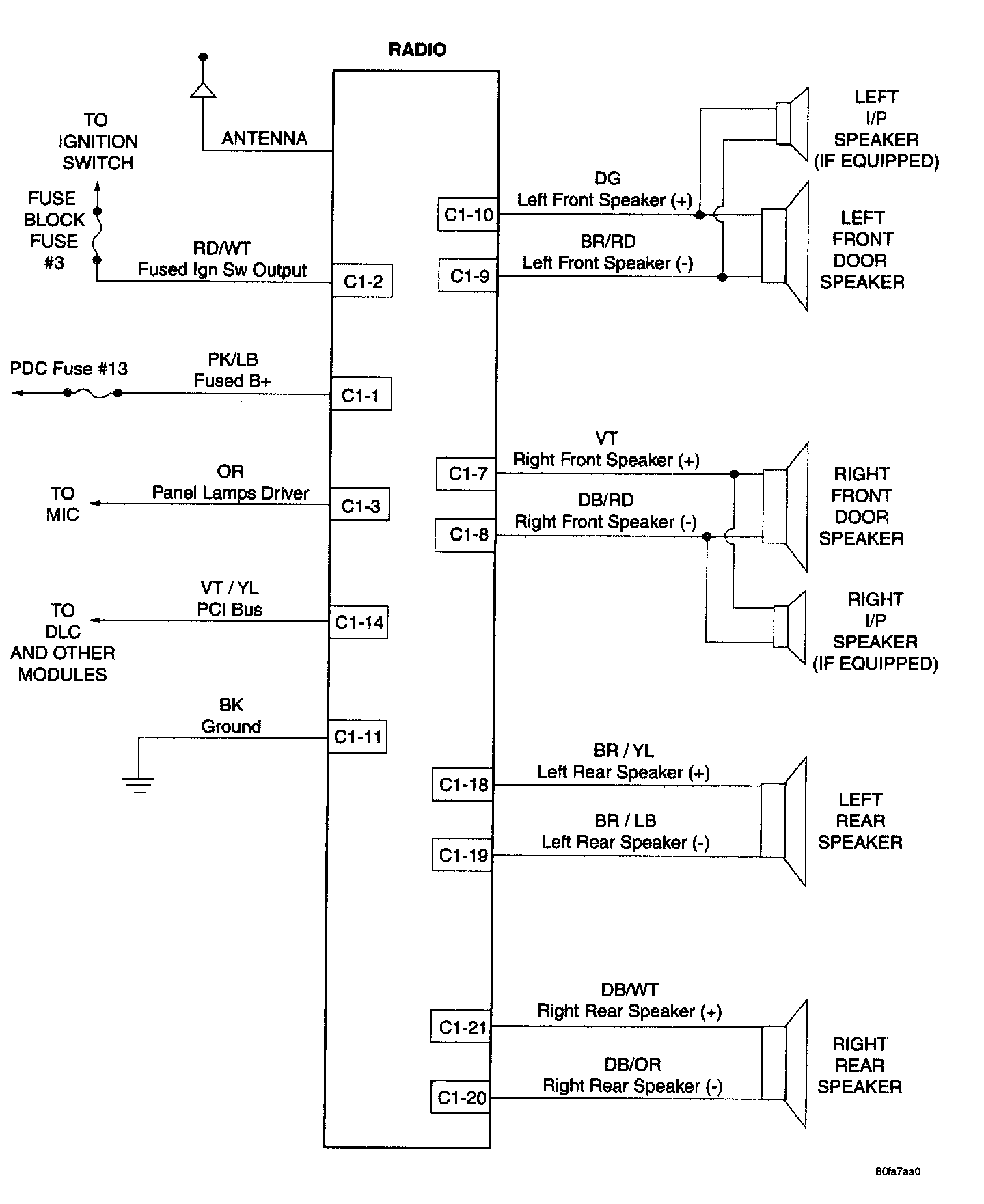

Audio System:




CD Changer:




Compass/Temperature Mirror:

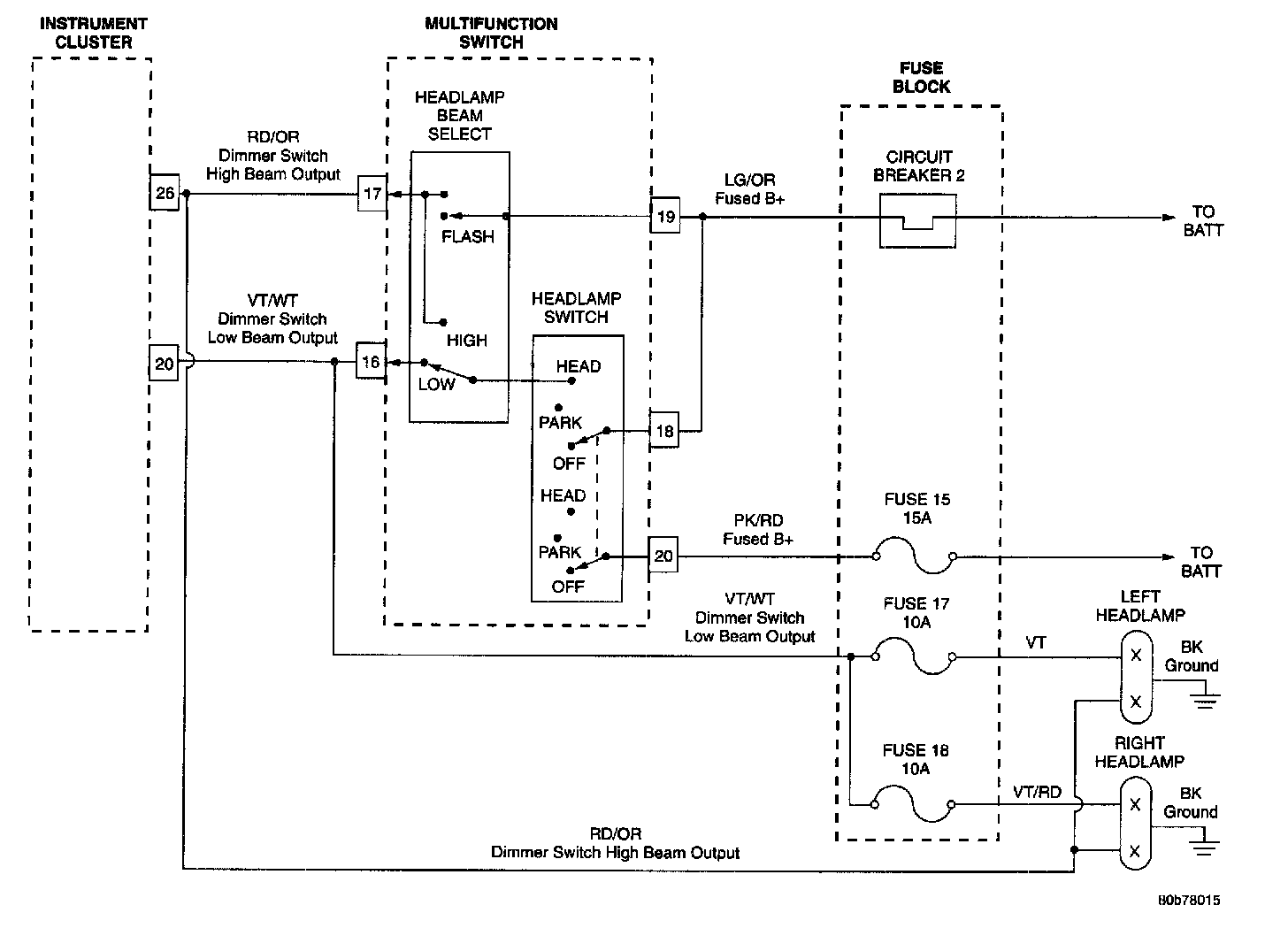

Exterior Lighting:

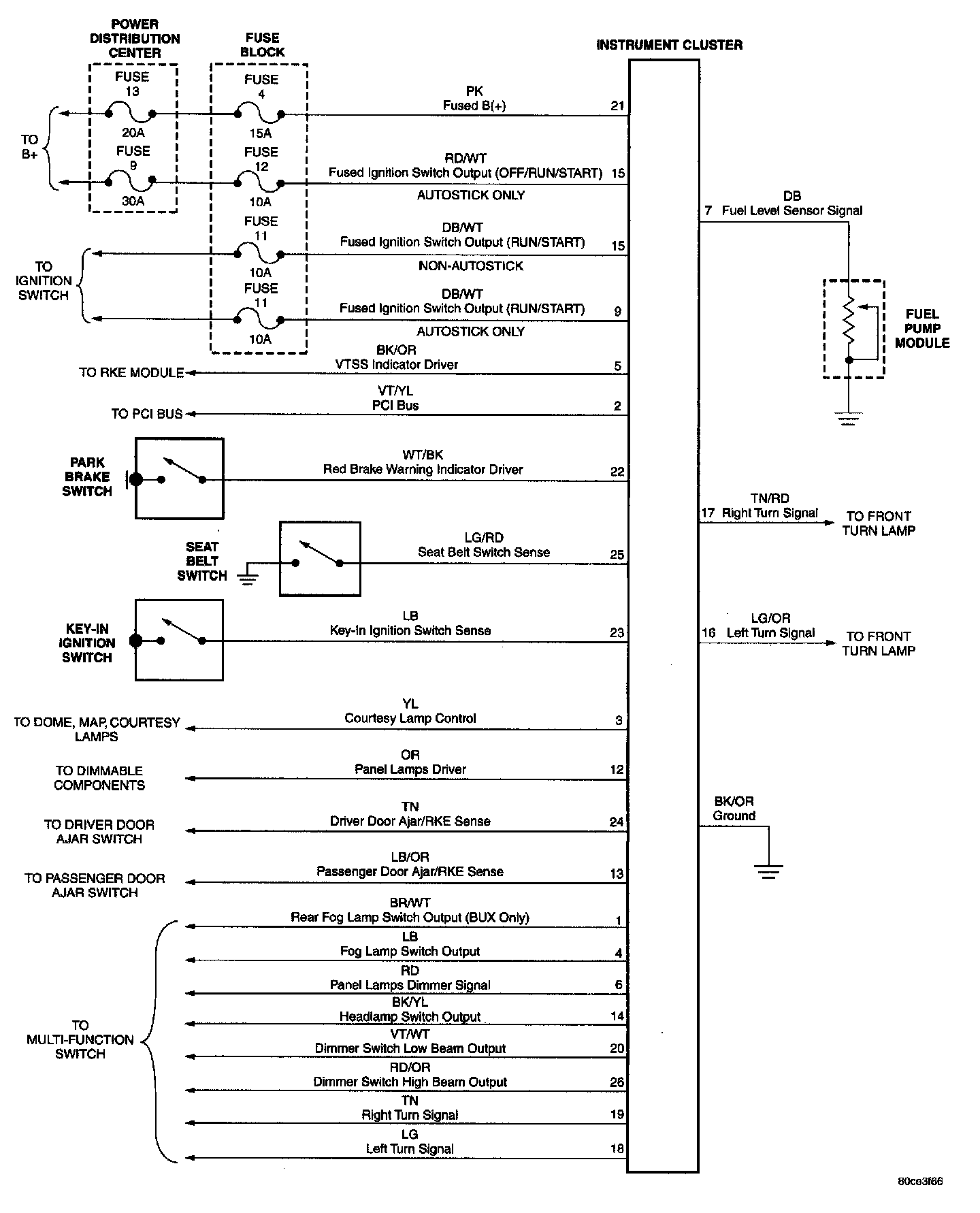

Instrument Cluster:




Interior Lighting:

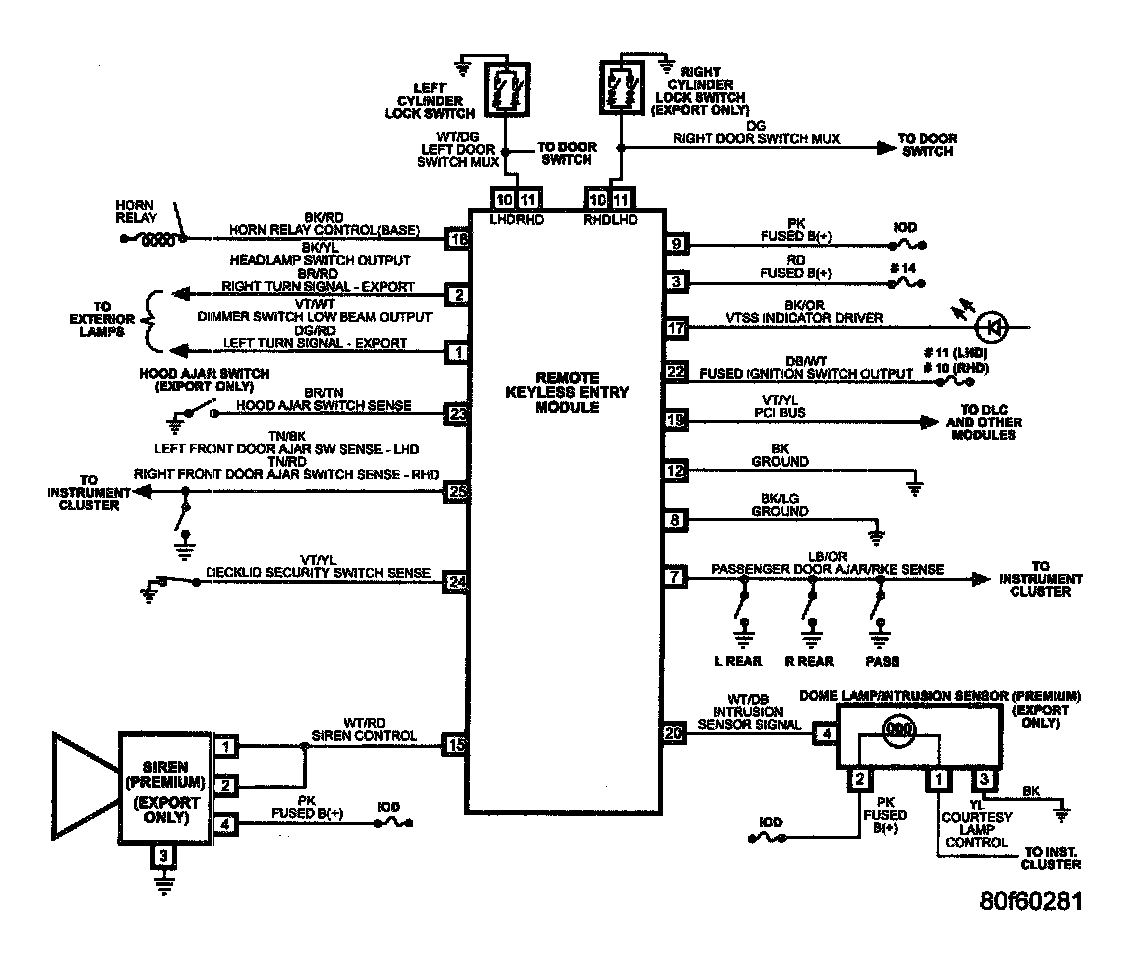

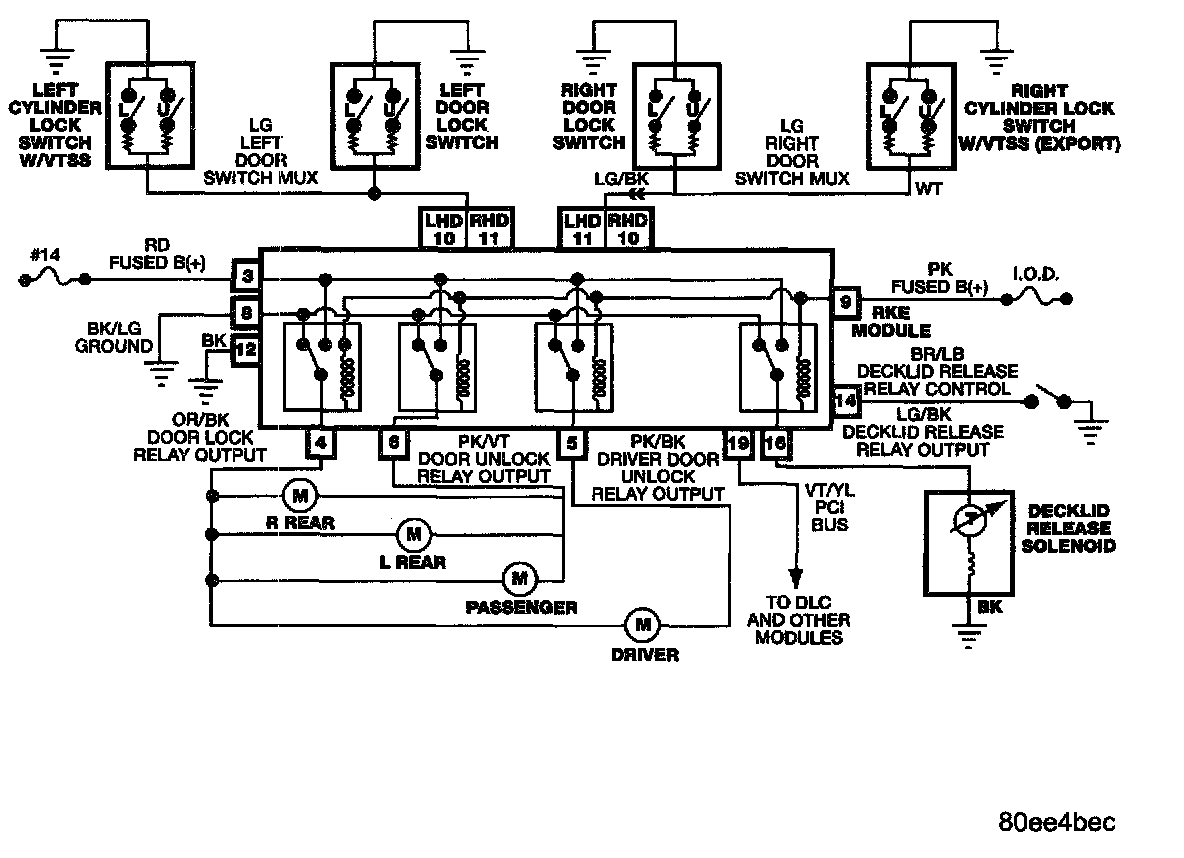

Power Door Locks/RKE:

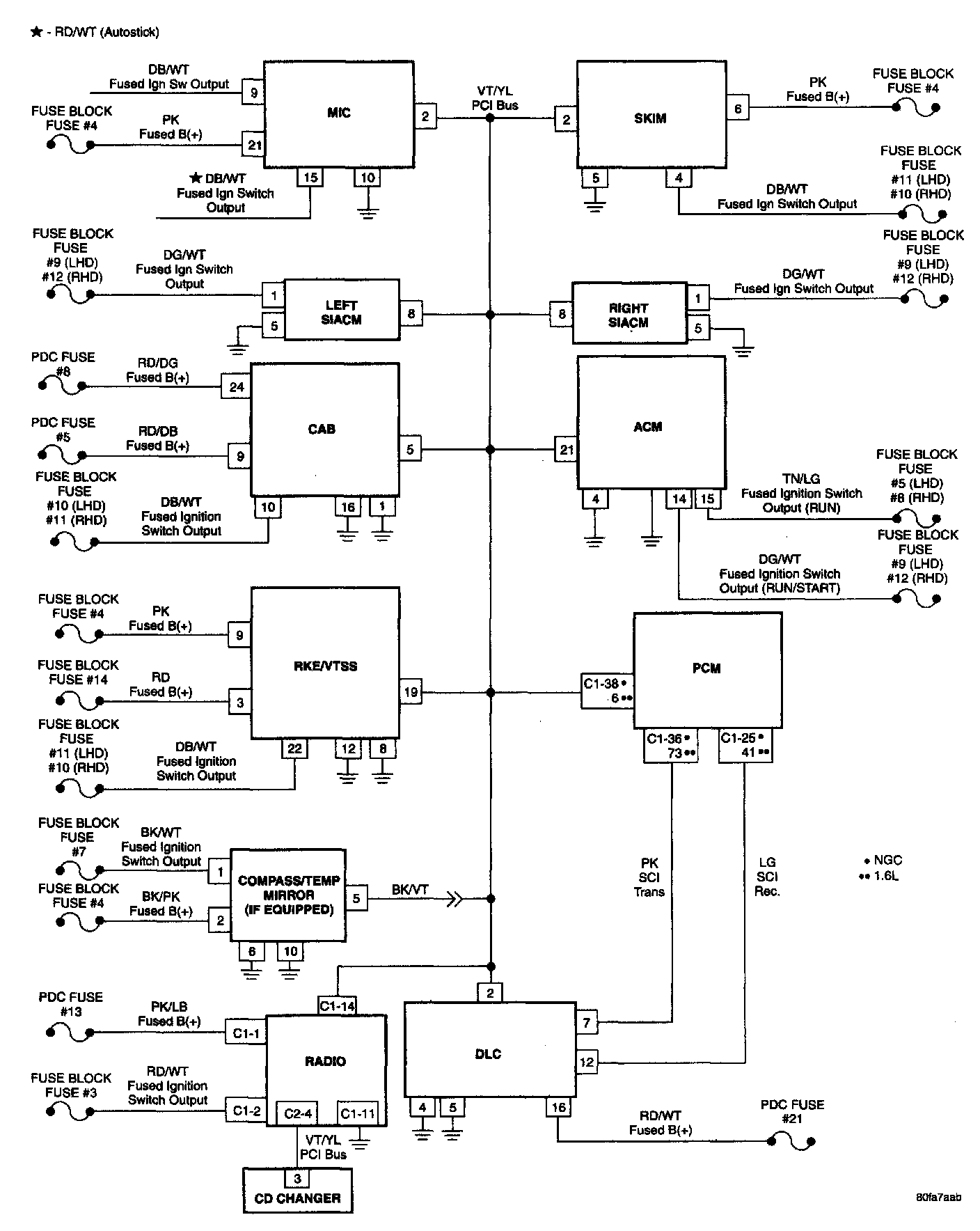

Vehicle Communication:




Vehicle Theft Security System:
