Connector Views

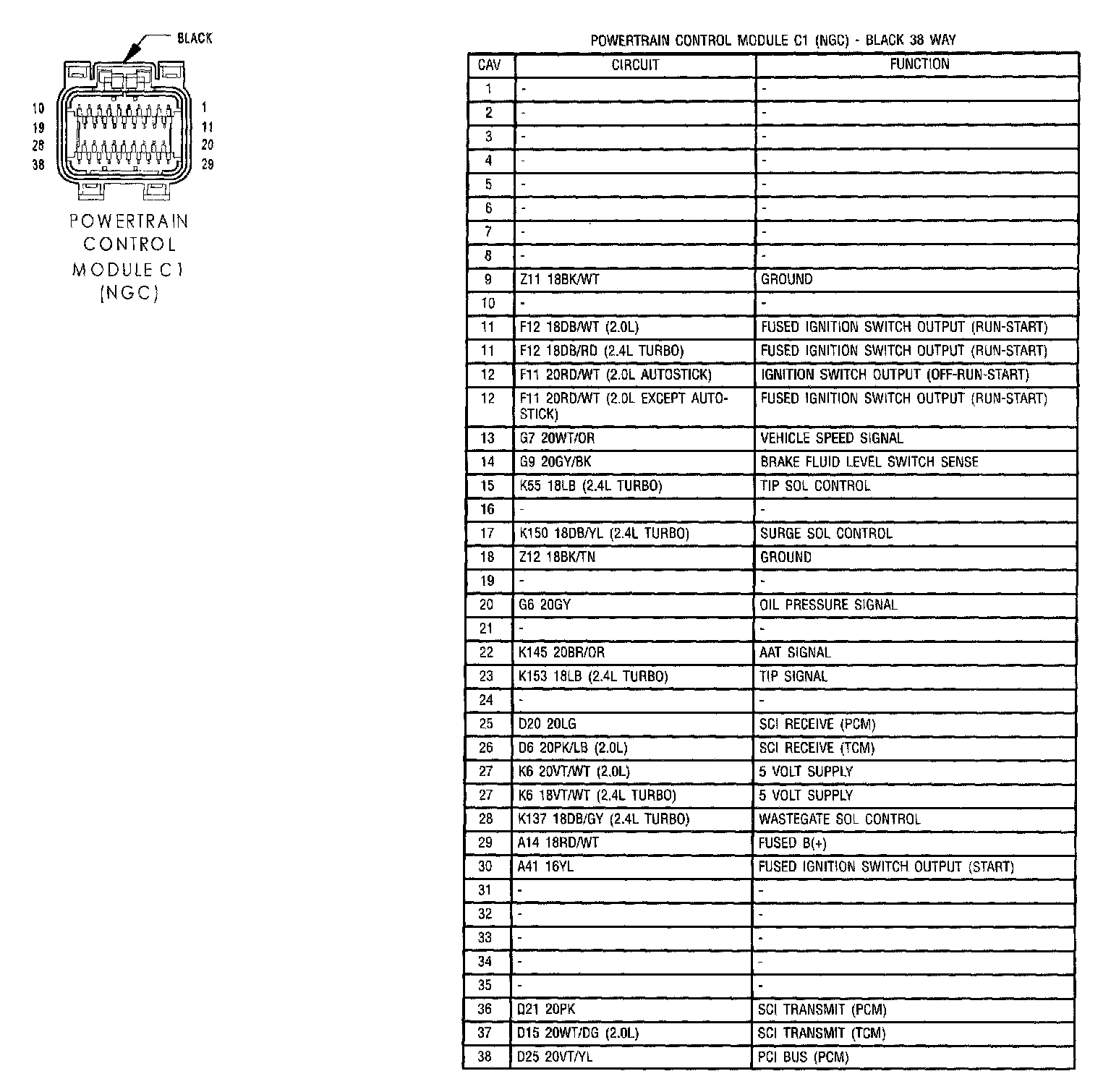

Powertrain Control Module C1 (NGC):

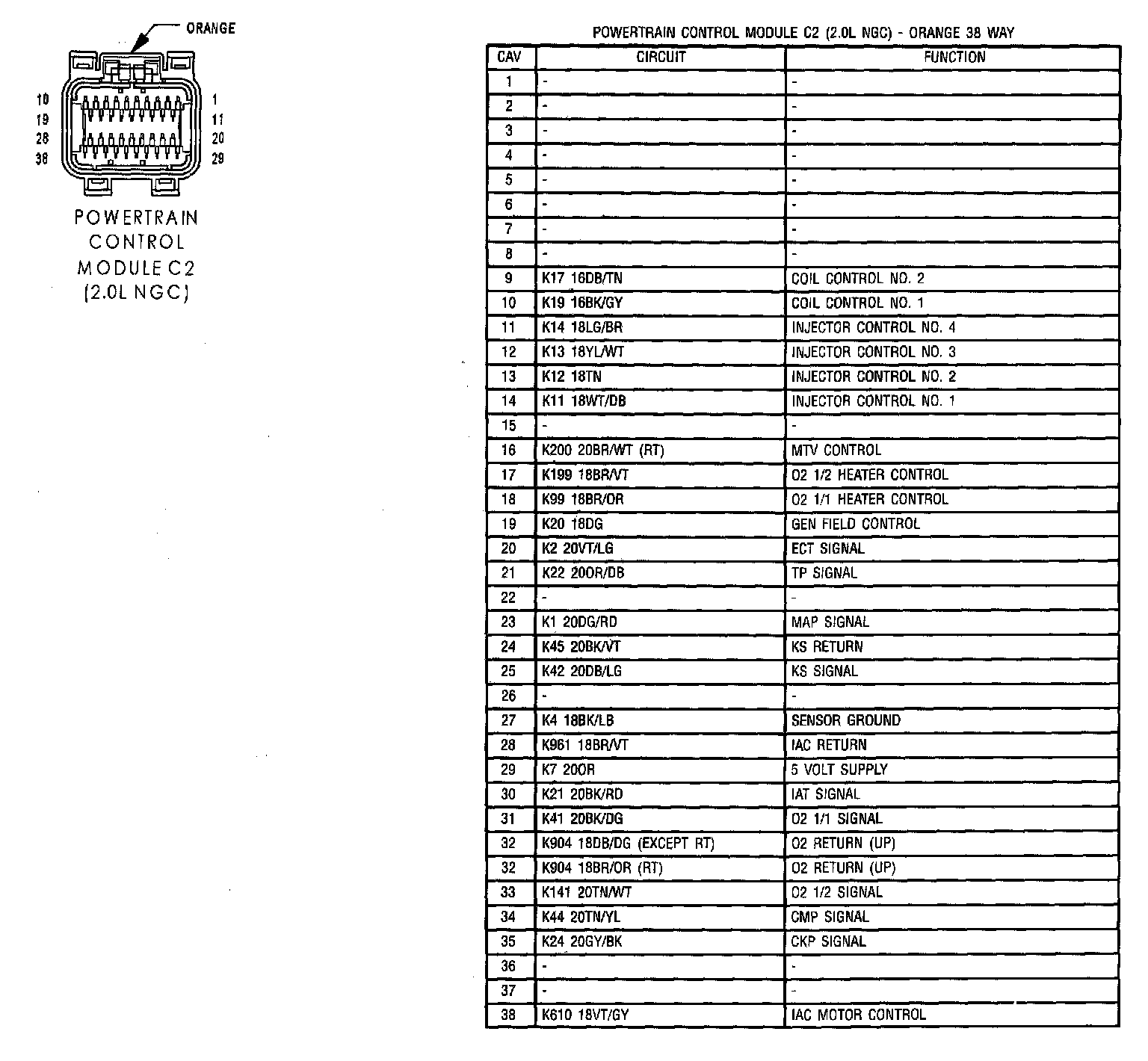

Powertrain Control Module C2 (2.0L NGC):

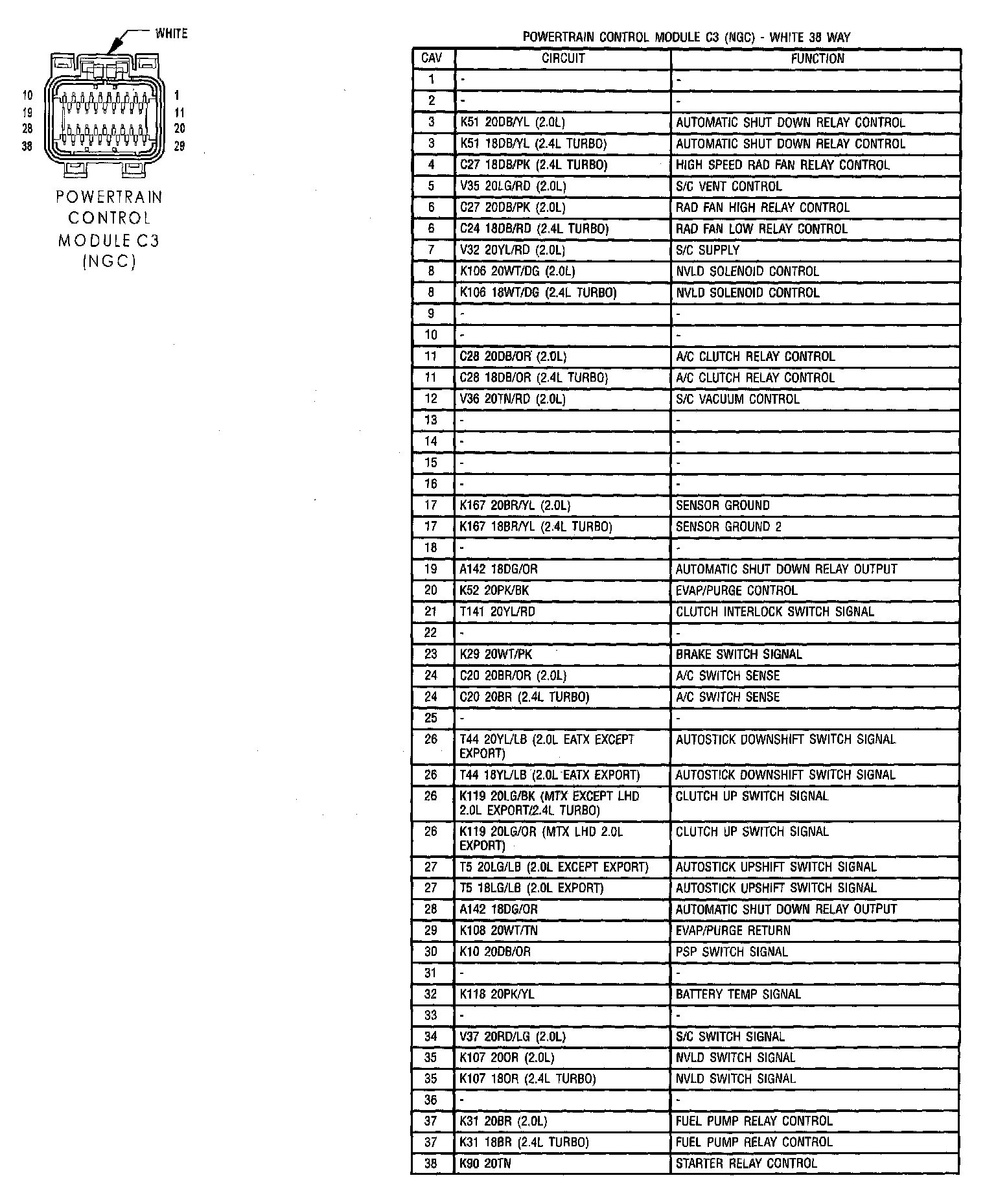

Powertrain Control Module C3 (NGC):

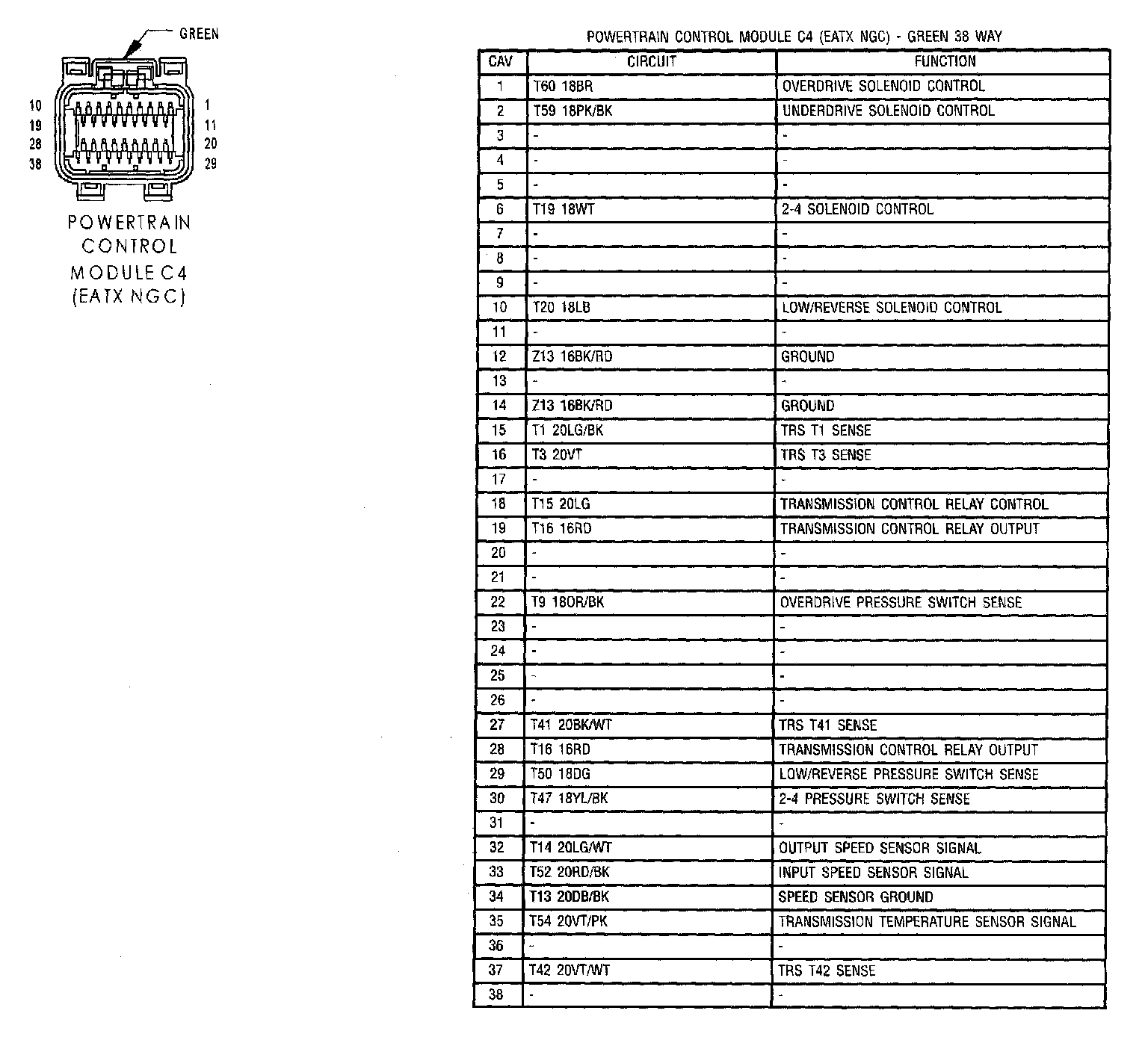

Powertrain Control Module C4 (EATX NGC):
