Connector Locations

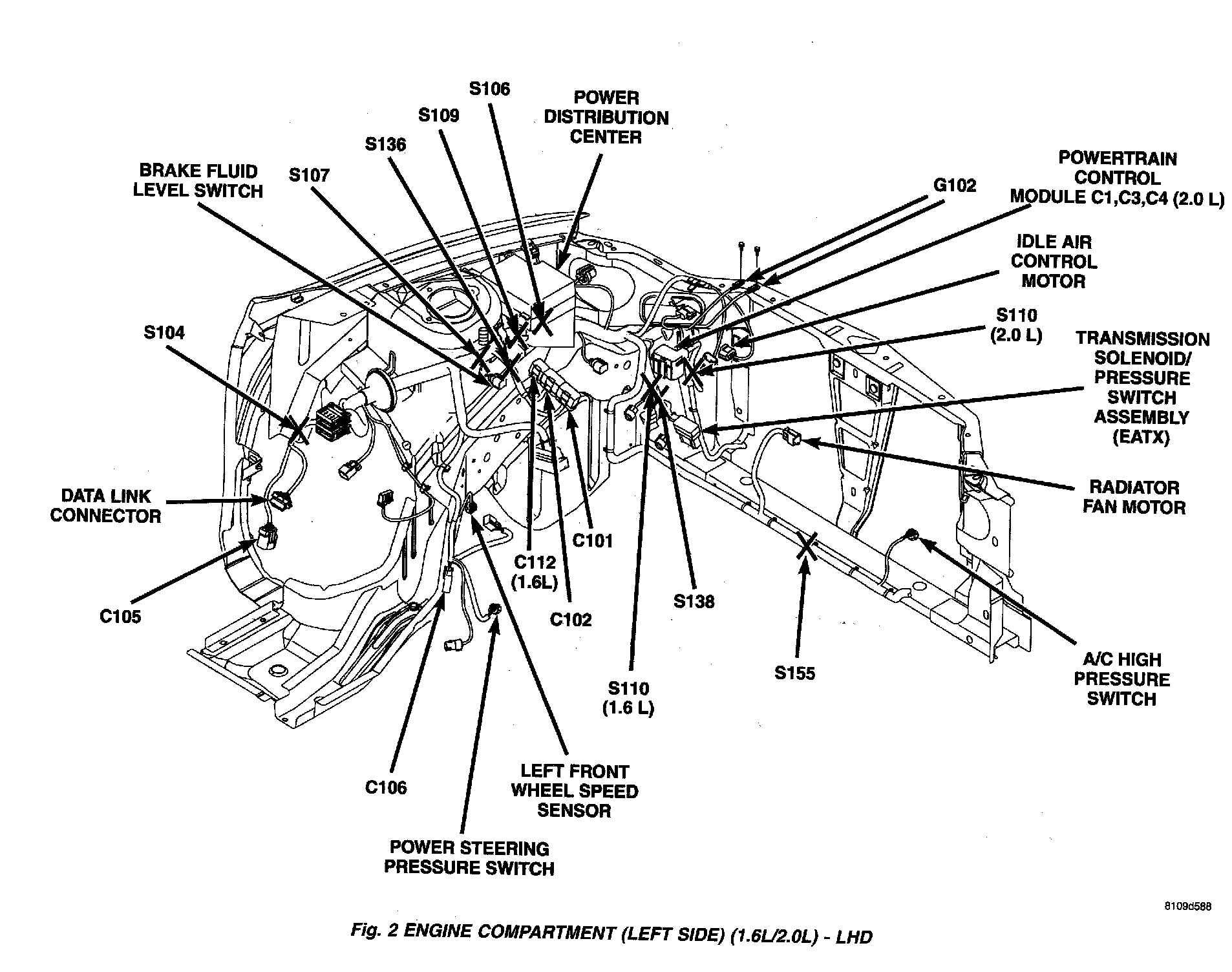

Fig. 2 Engine Compartment (Left Side) - LHD:

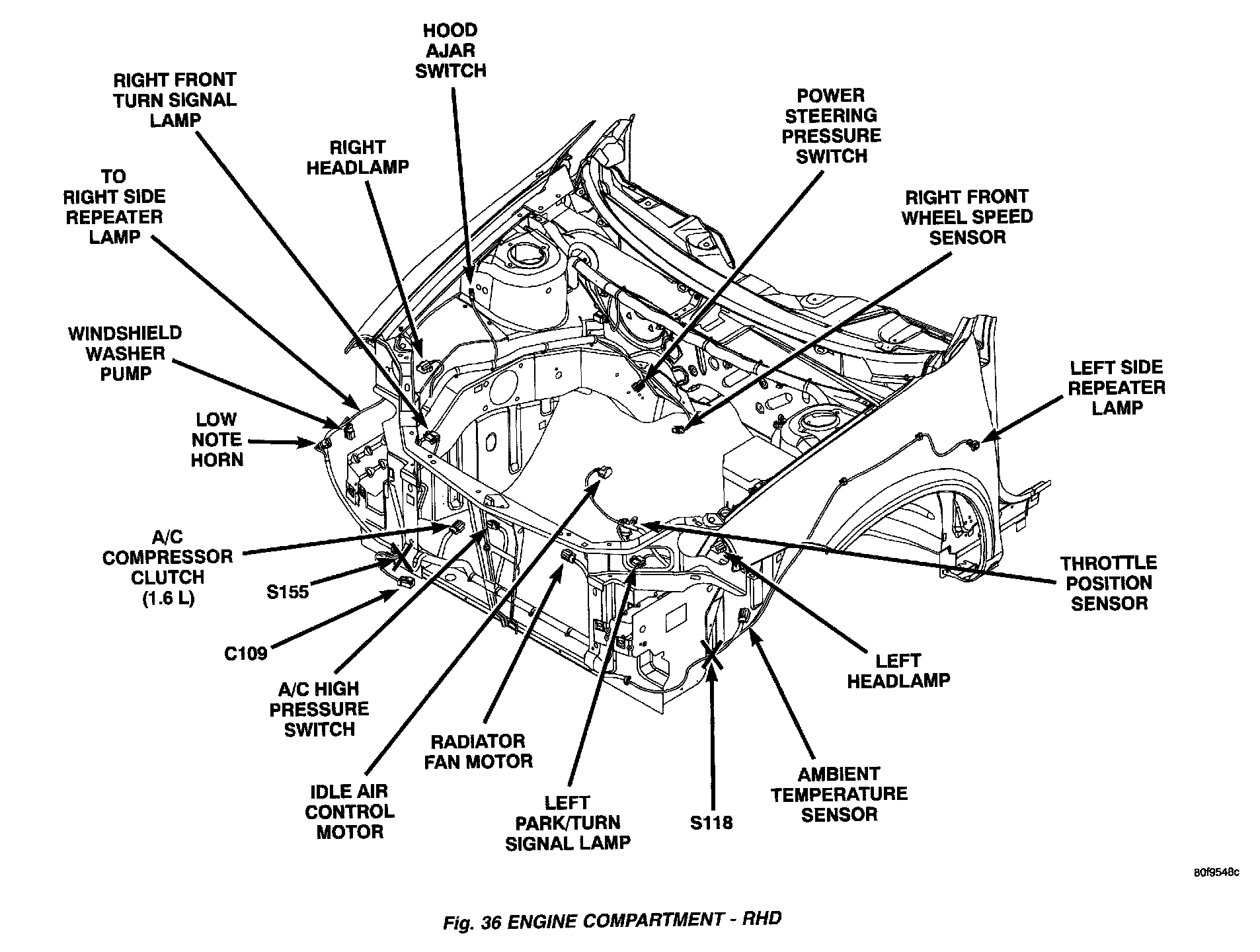

Fig. 36 Engine Compartment - RHD:

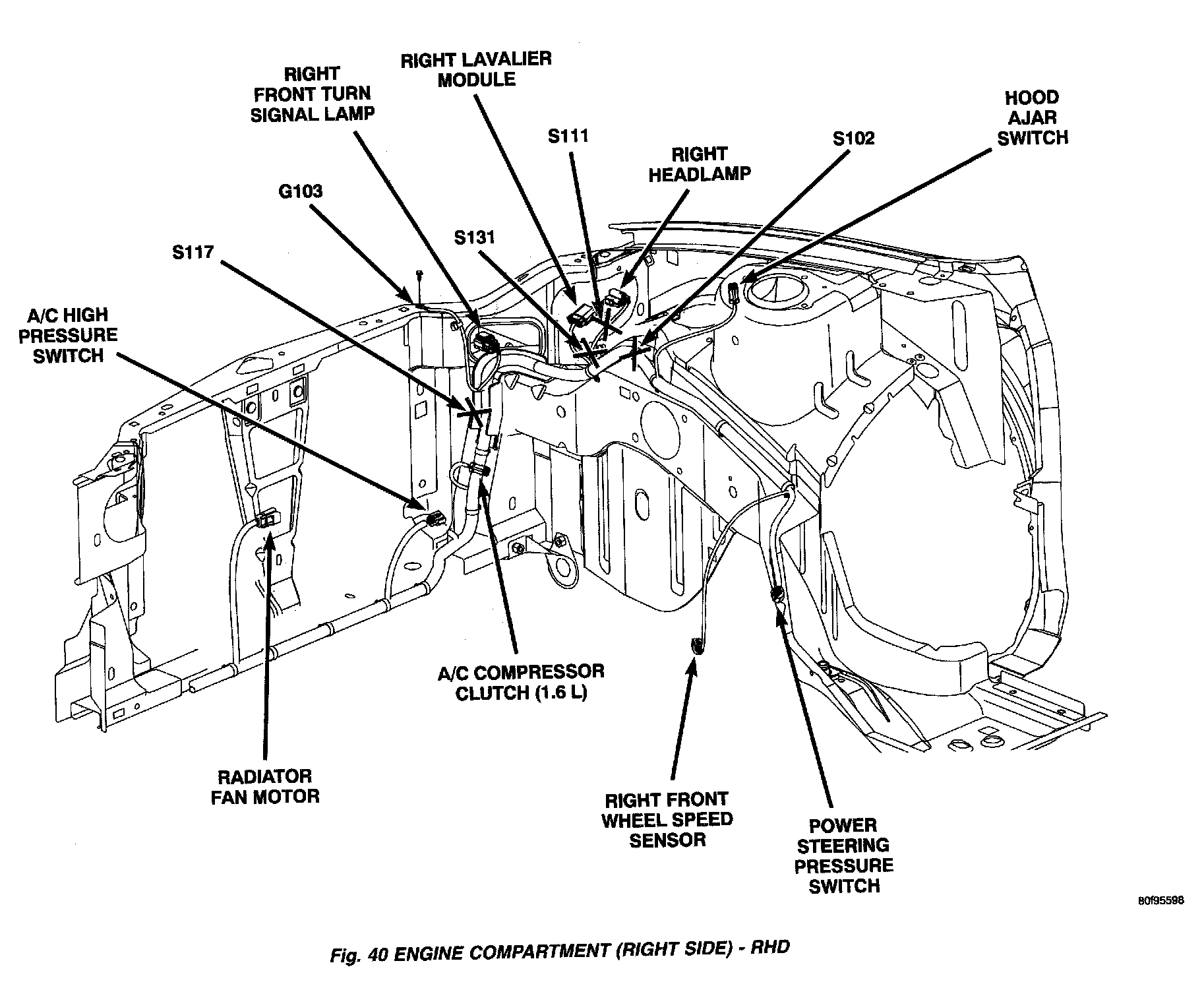

Fig. 40 Engine Compartment (Right Side) - RHD:
