Powertrain Control Module (2.4L Turbo Next Generation Controller) Connector End View (C2)

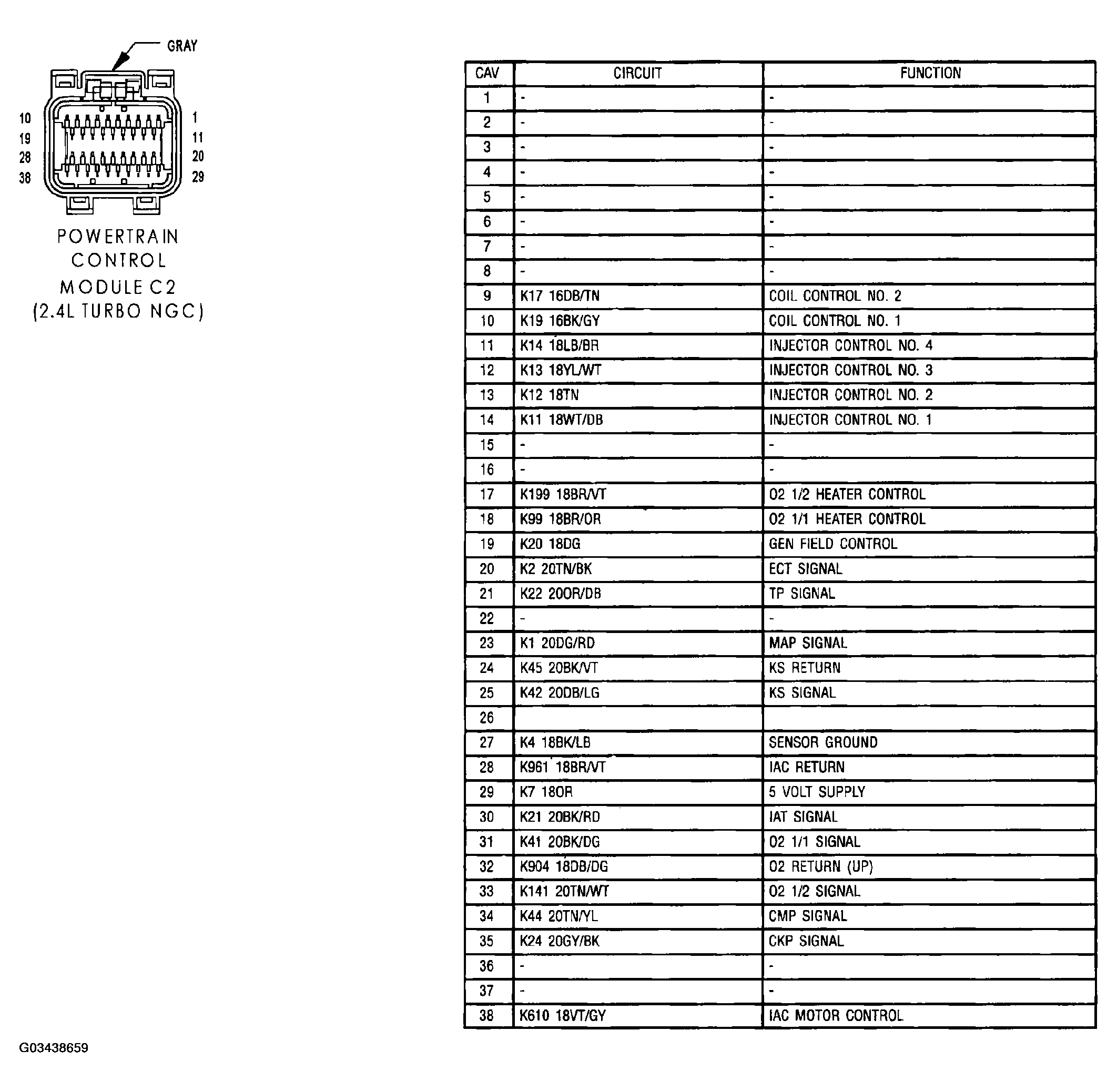

Fig 1: Powertrain Control Module (2.4L Turbo Next Generation Controller) Connector End View (C2)
G03438659Courtesy of DAIMLERCHRYSLER CORP.
