Power Window Switch Continuity

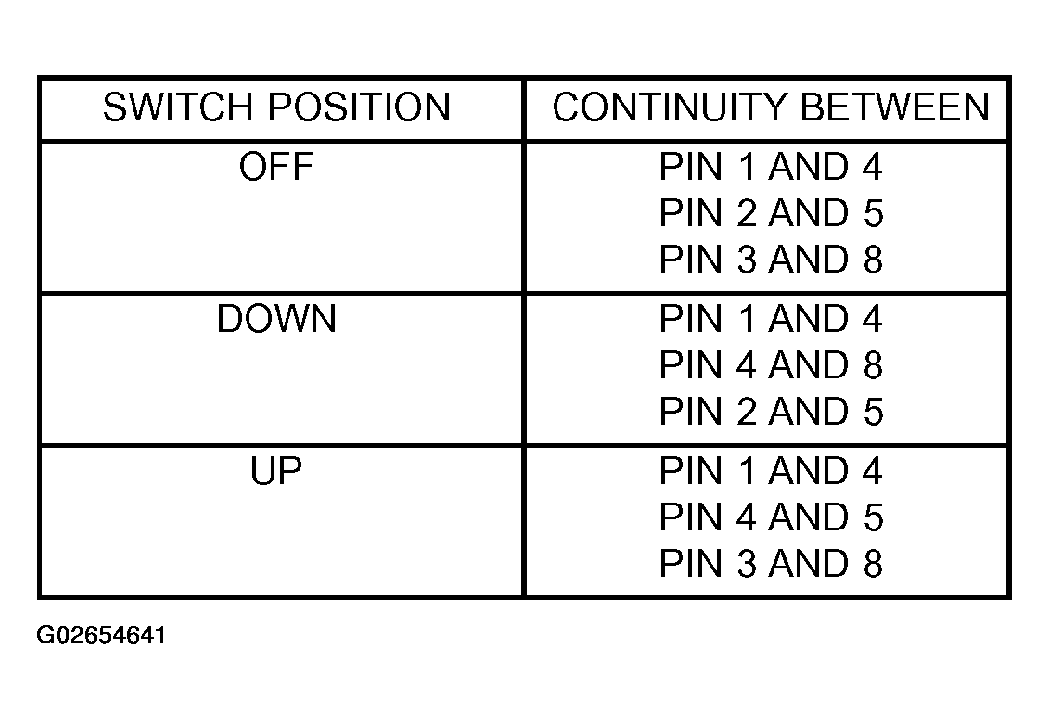

Fig 1: Identifying Power Window Switch Continuity
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
