Charts And Graphs

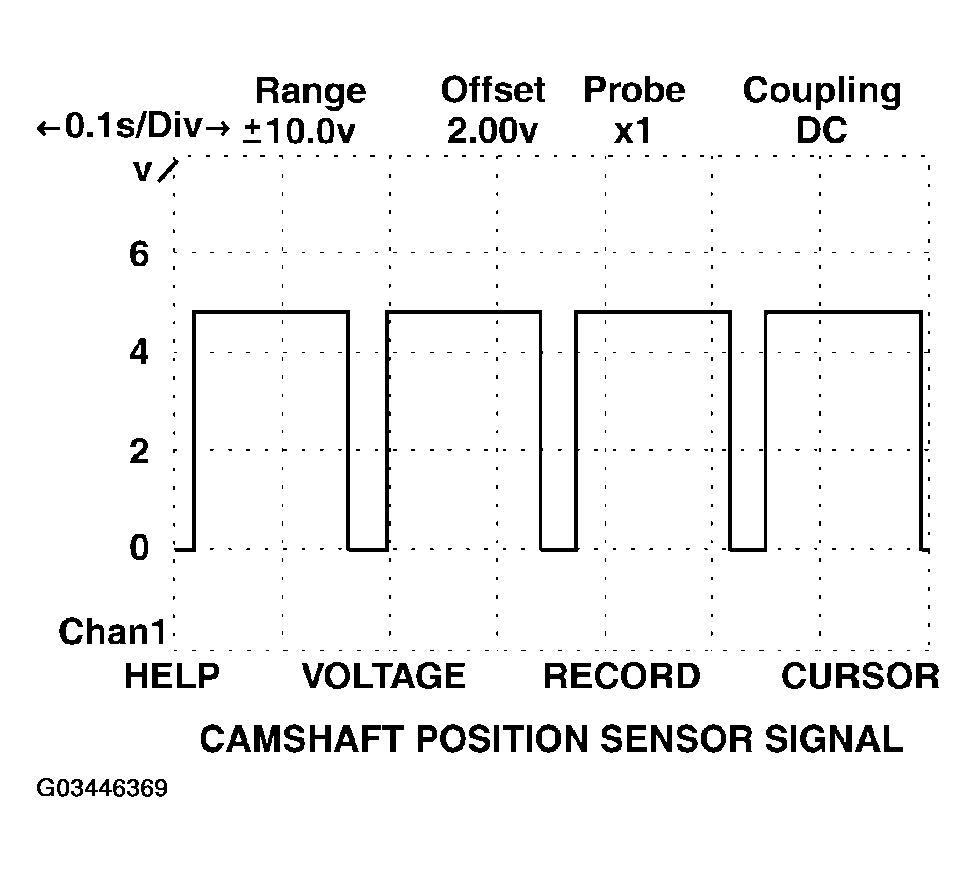

Fig 1: Camshaft Position Sensor Signal Graph
G03446369Courtesy of DAIMLERCHRYSLER CORP.

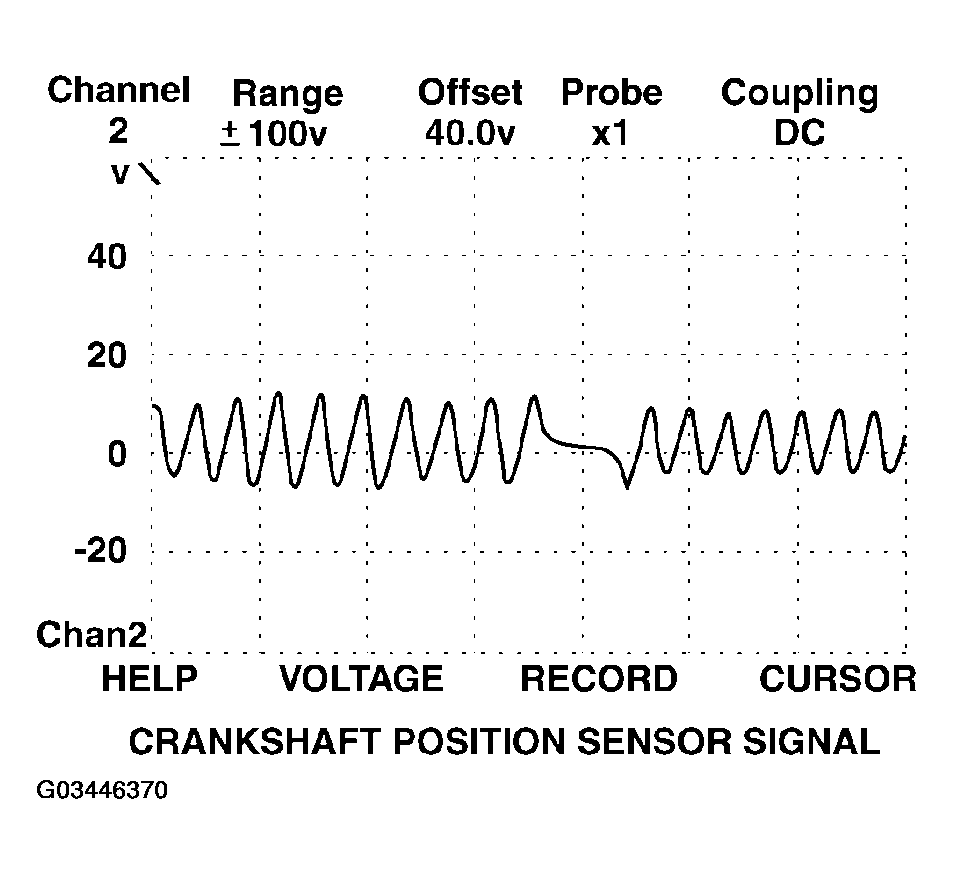

Fig 2: Crankshaft Position Sensor Signal Graph
G03446370Courtesy of DAIMLERCHRYSLER CORP.
