Engine Control Module

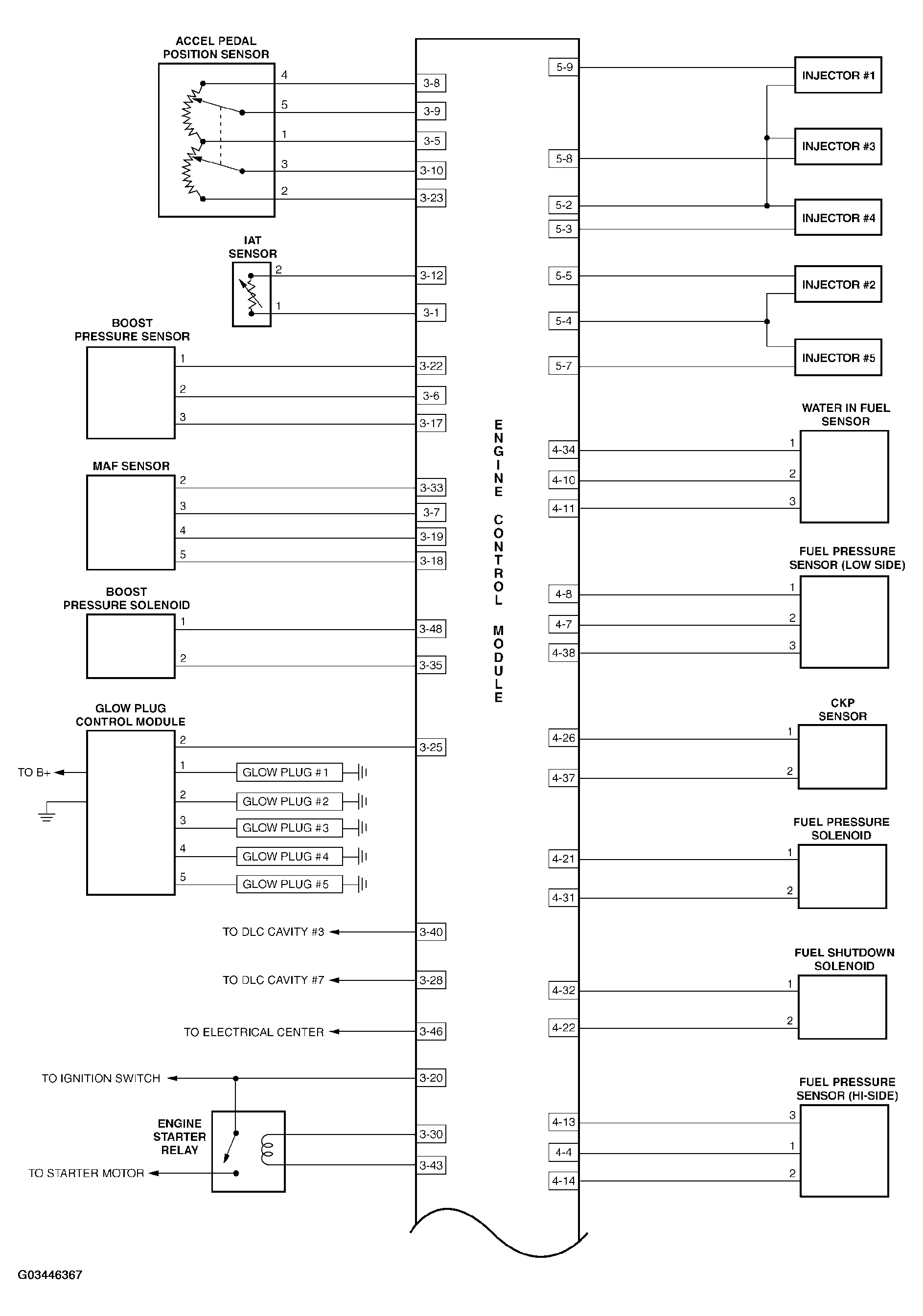

Fig 1: Engine Control Module Schematic Diagrams (1 Of 2)
G03446367Courtesy of DAIMLERCHRYSLER CORP.

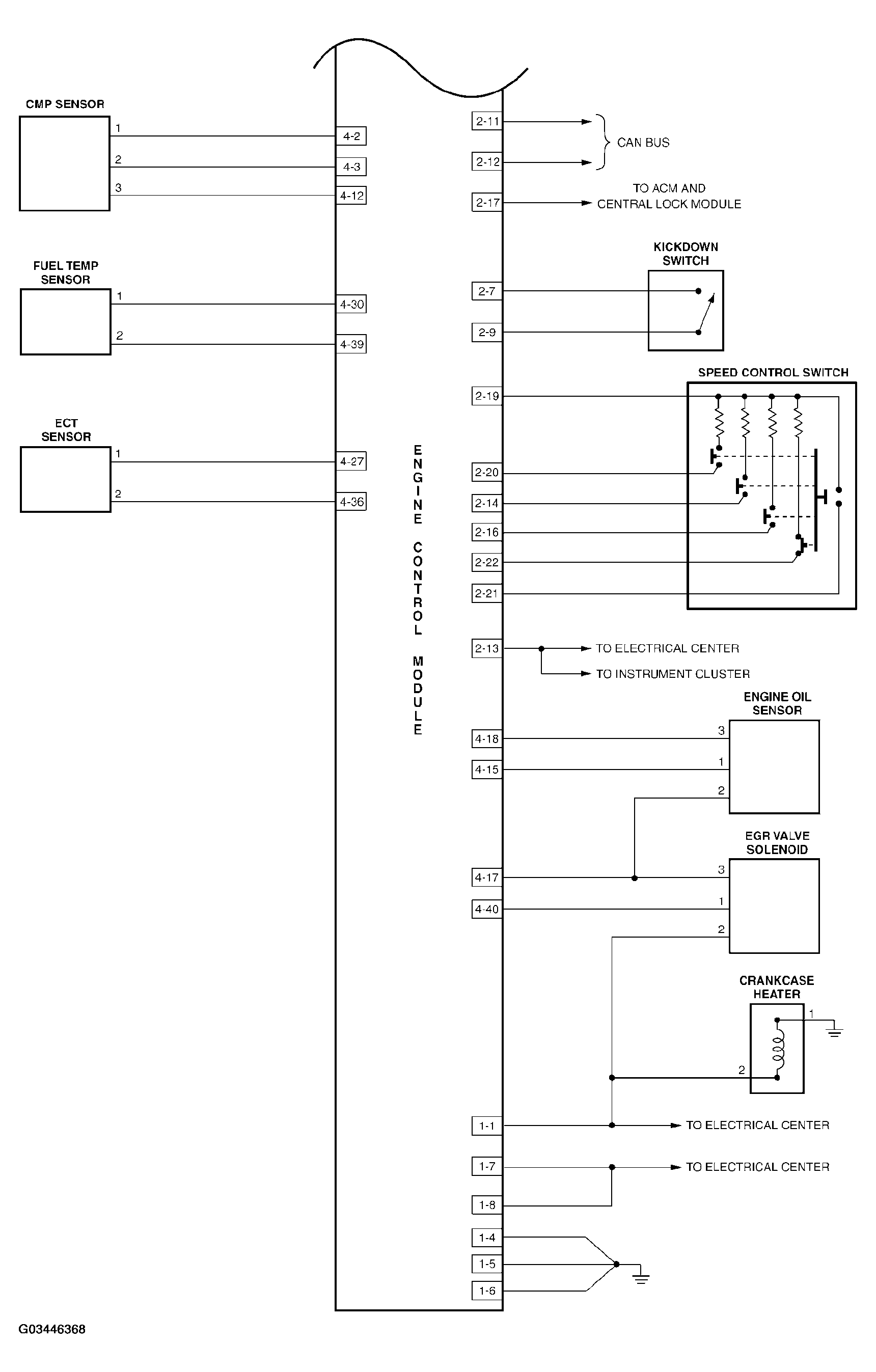

Fig 2: Engine Control Module Schematic Diagrams (2 Of 2)
G03446368Courtesy of DAIMLERCHRYSLER CORP.
