Fluid Level Switch Connector End View

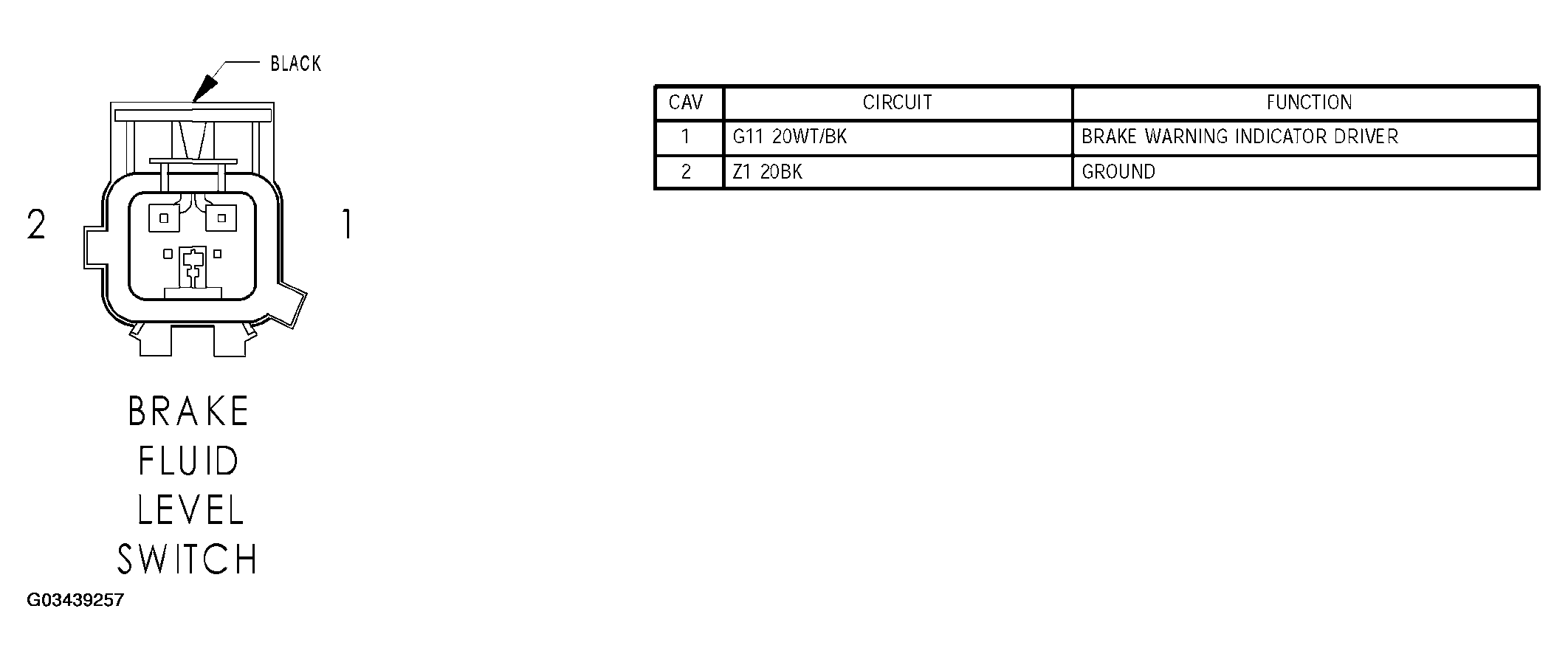

Fig 1: Fluid Level Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
