Throttle Body: Installation

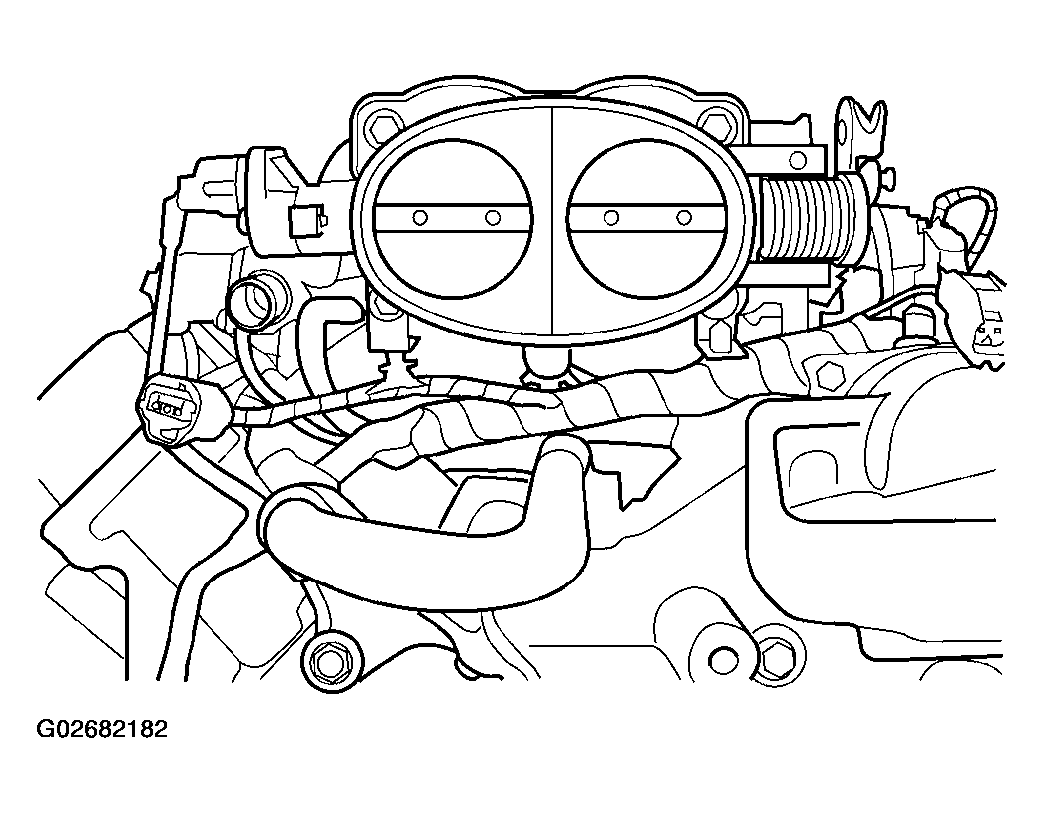

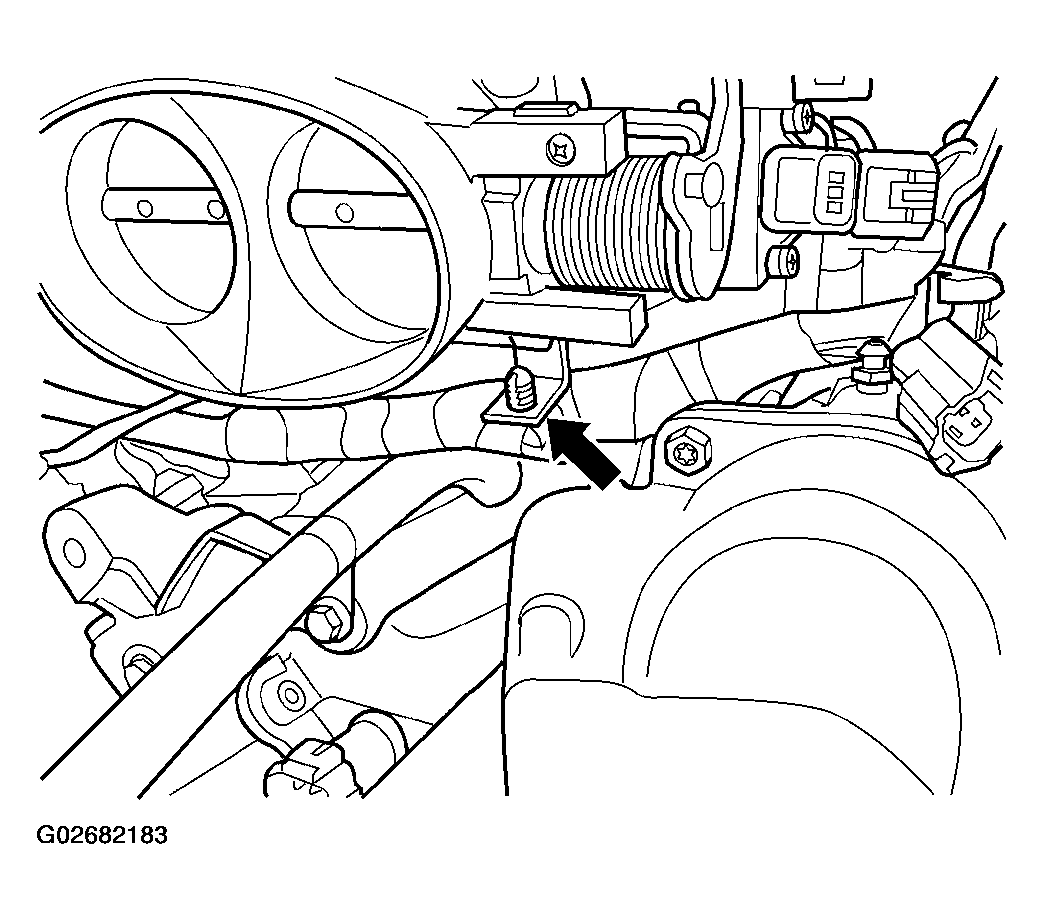

- Mount throttle body (Figure ) and wiring clips (Fig 1 ), tighten bolts to 12 N.m (105 in. lbs.).

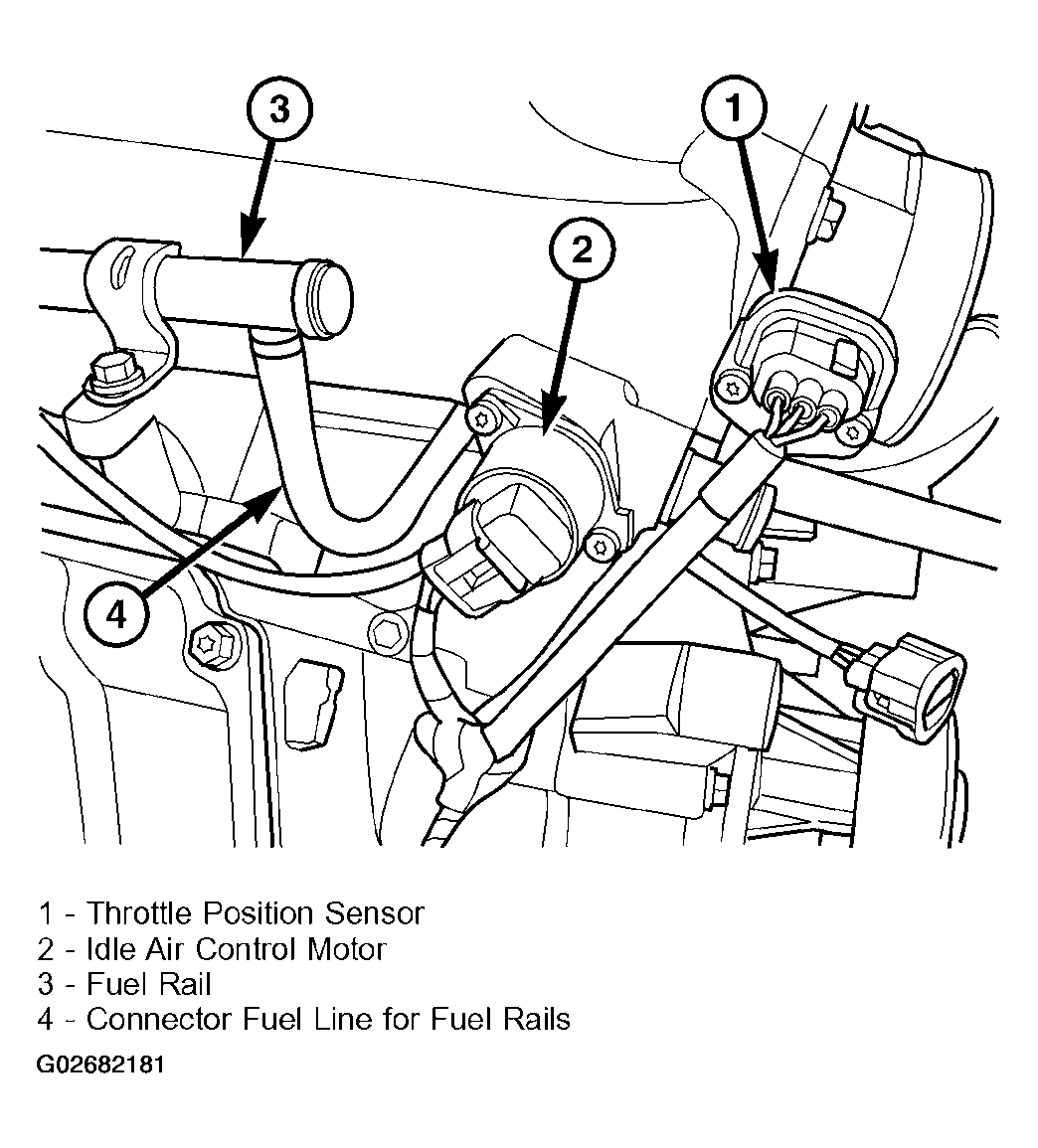

- Connect electrical connector to throttle position sensor (Figure ).

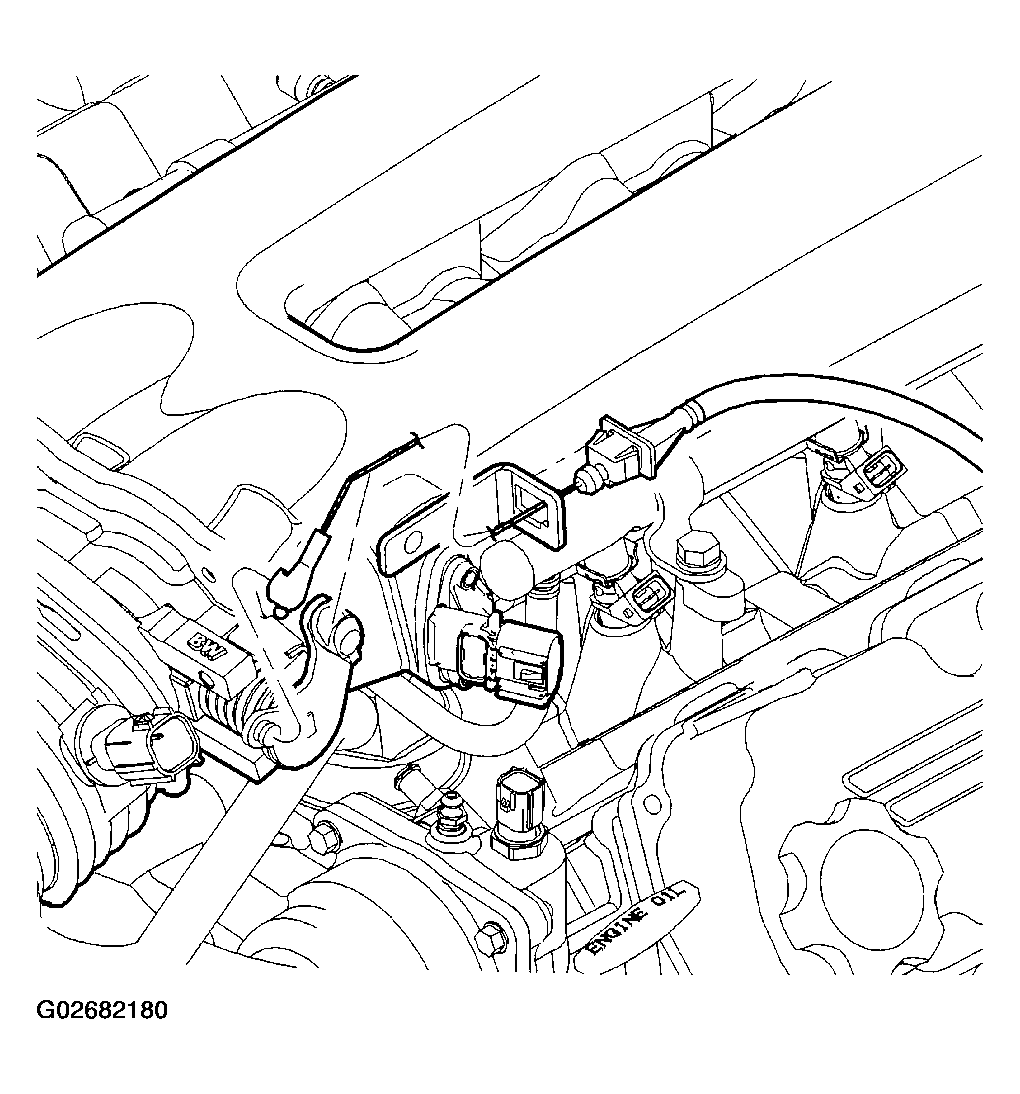

- Install the throttle cable (Figure ).
- Install the air cleaner housing, refer to AIR CLEANER HOUSING .
- Connect the negative battery cable and install the battery cover.
