Blend/Mode/Recirc Door Operation Improper

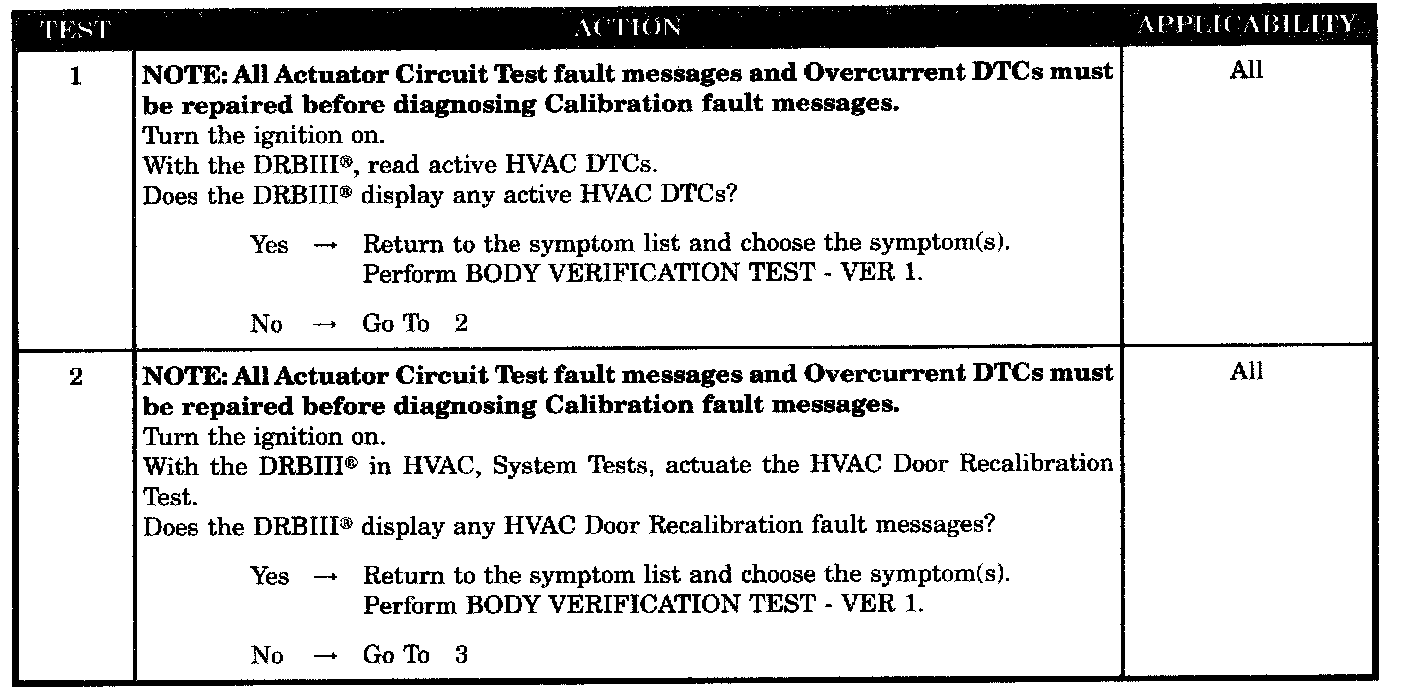

Test 1 - 2:

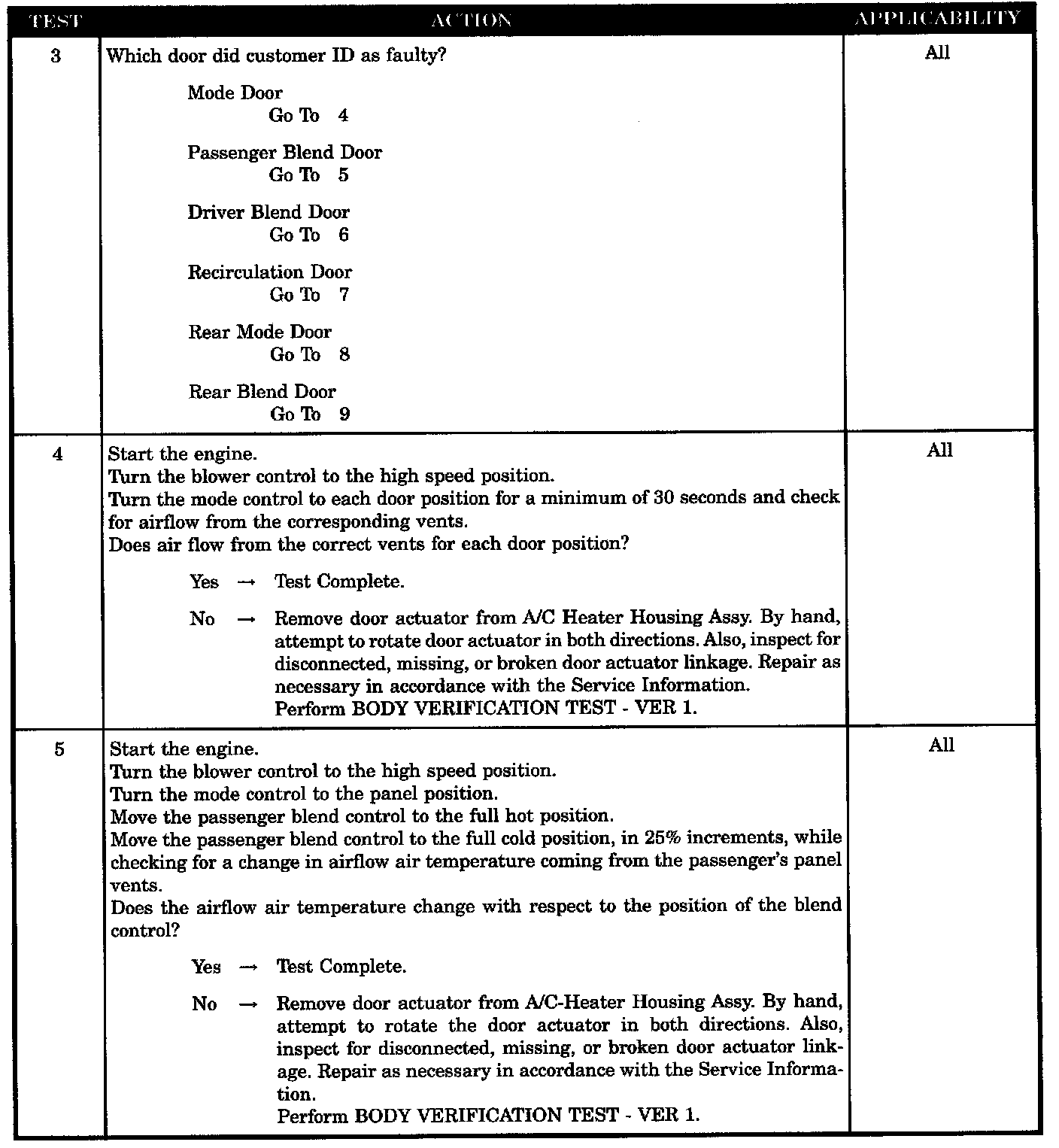

Test 3 - 5:

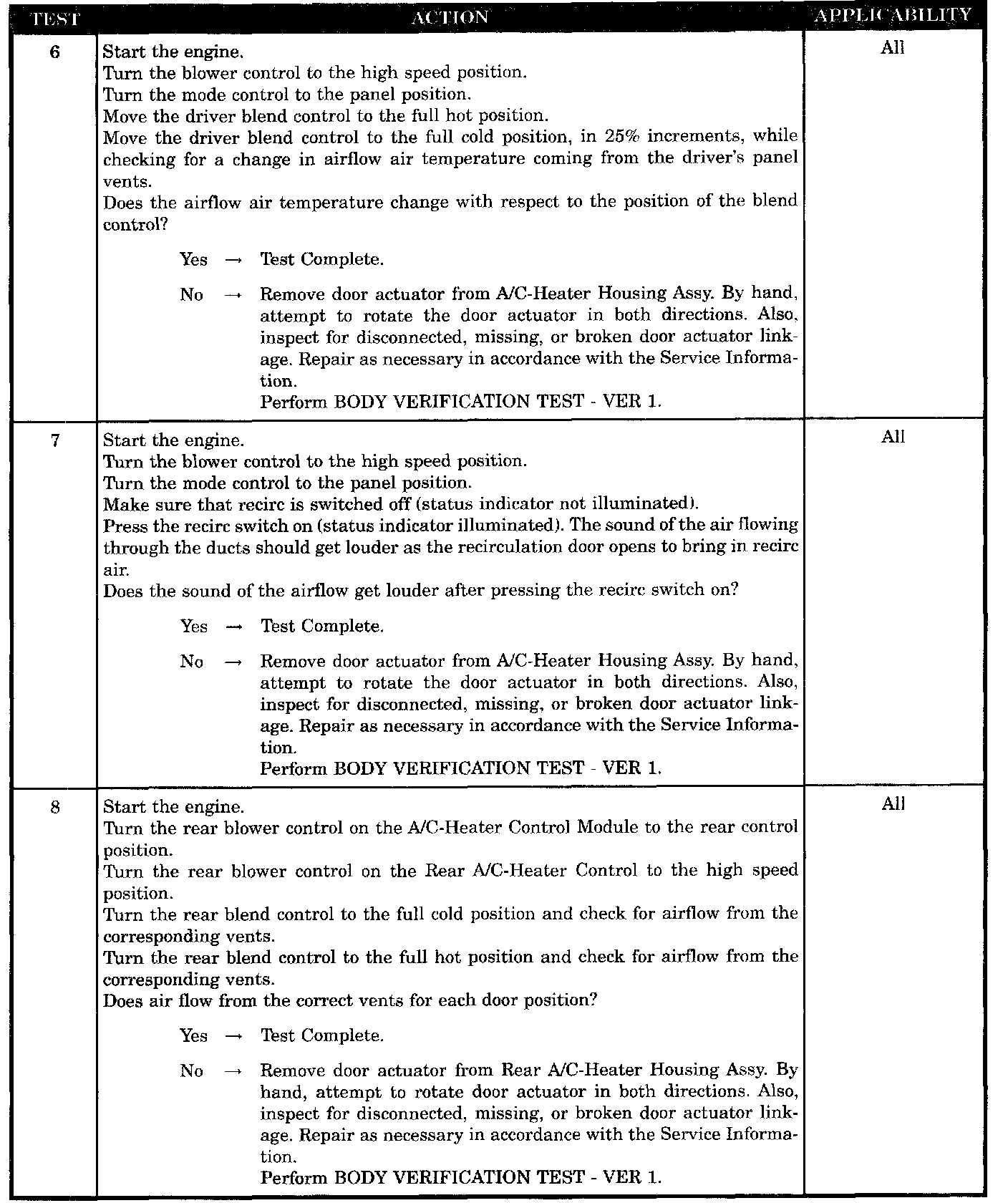

Test 6 - 8:

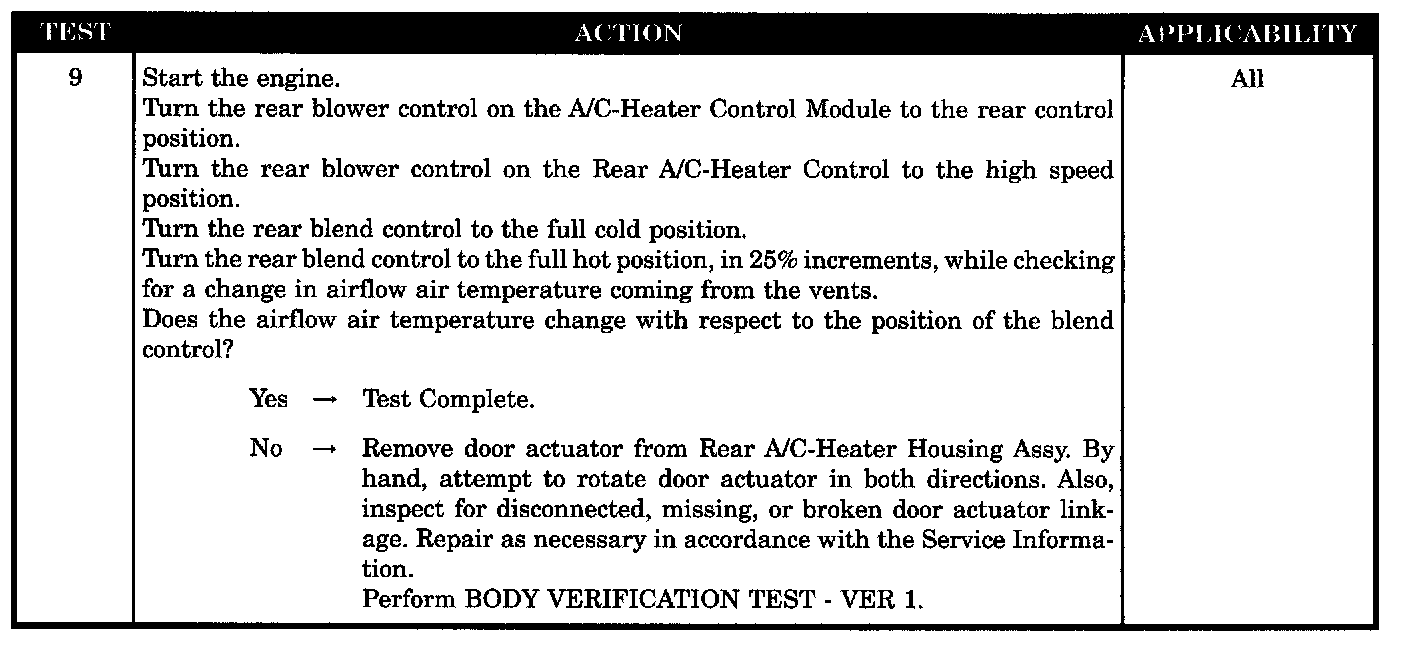

Test 9:

SYMPTOM
BLEND/MODE/RECIRC DOOR OPERATION IMPROPER -- DUAL & THREE-ZONE MTC

POSSIBLE CAUSES
- Check for active HVAC DTCs
- Check for HVAC door recalibration fault messages
- Mode door actuator/linkage/door
- Passenger blend door actuator/linkage/door
- Driver blend door actuator/linkage/door
- Recirculation door actuator/linkage/door
- Rear mode door actuator/linkage/door
- Rear blend door actuator/linkage/door
