Air Bag Control Module

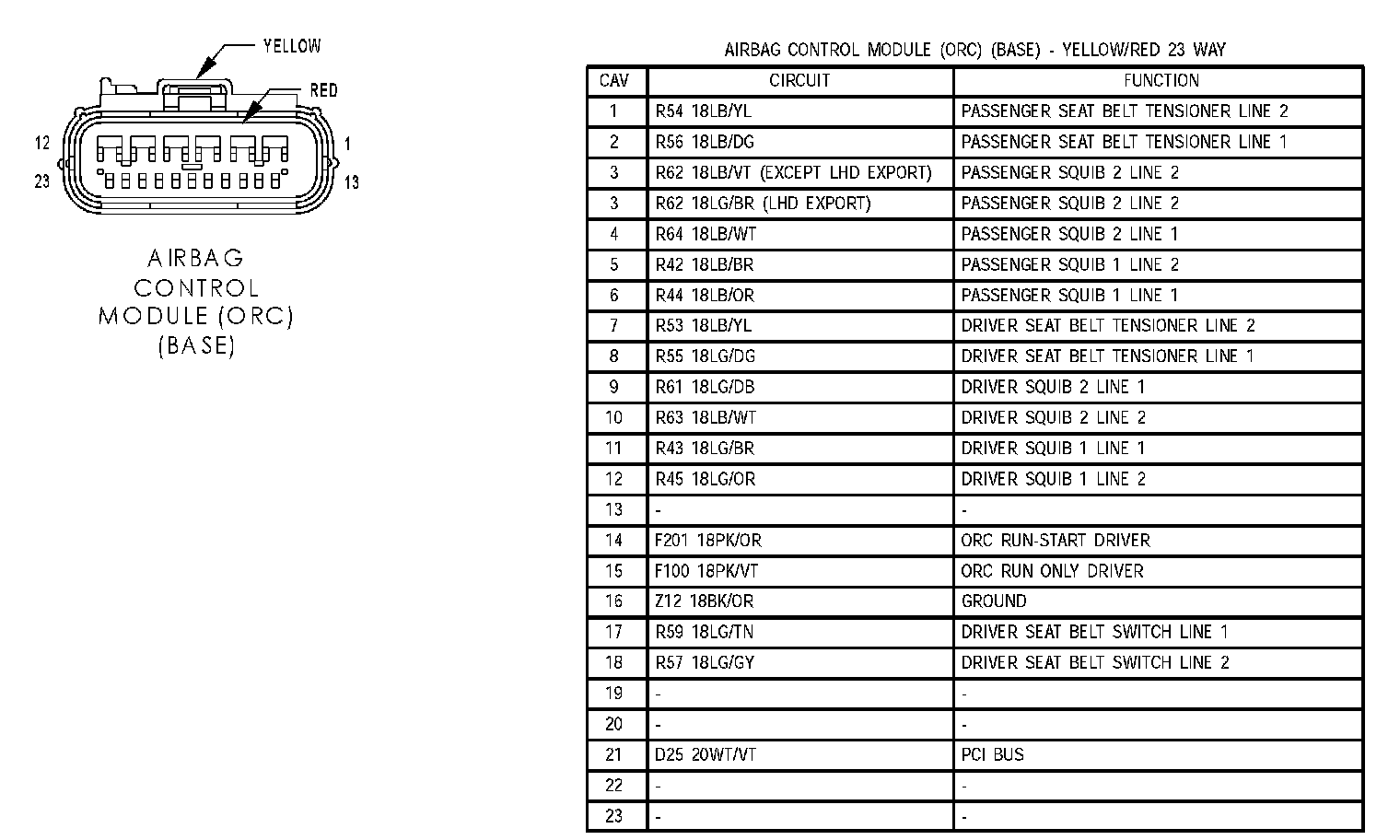

Airbag Control Module [ORC] (Base):

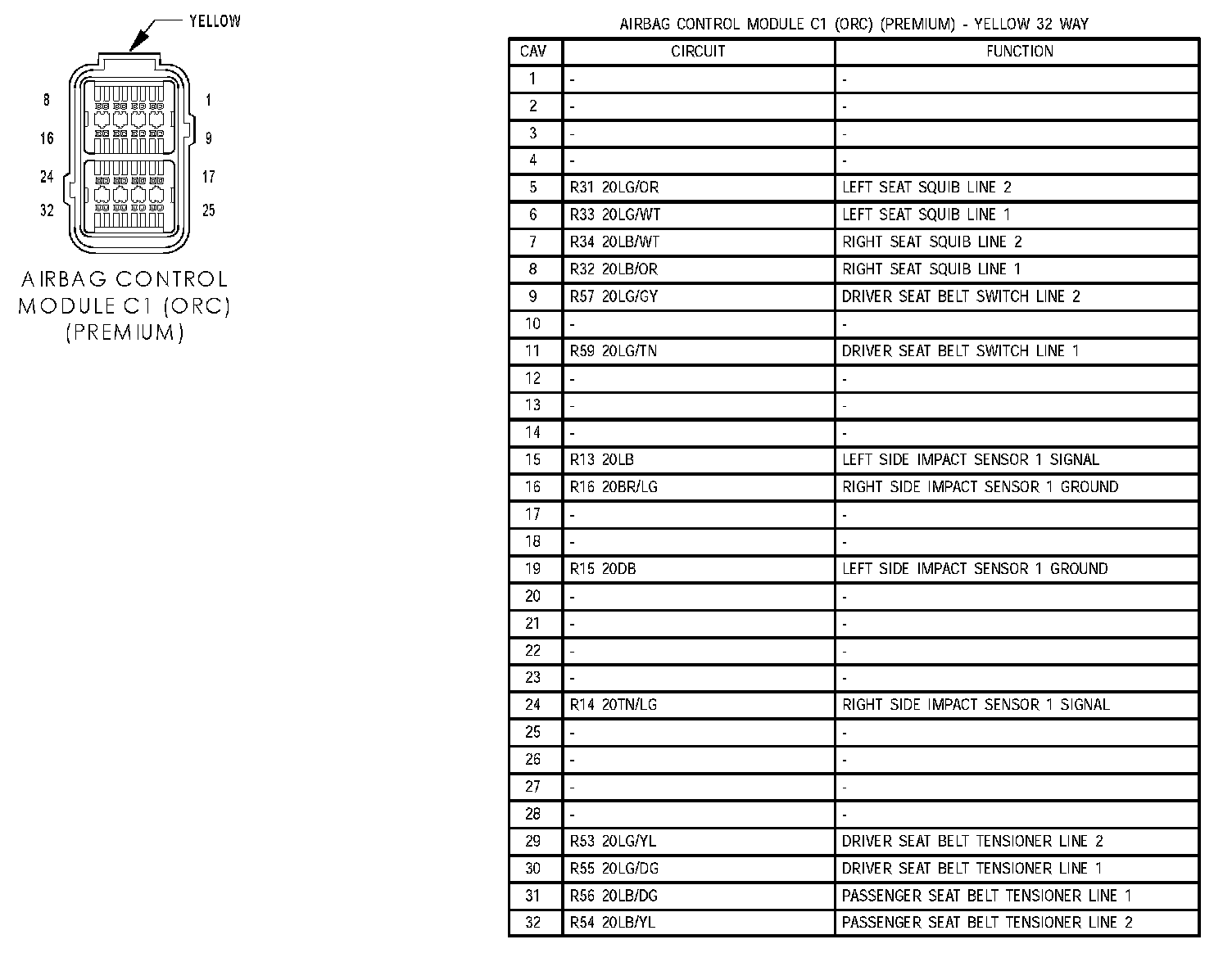

Airbag Control Module [ORC] (Premium):

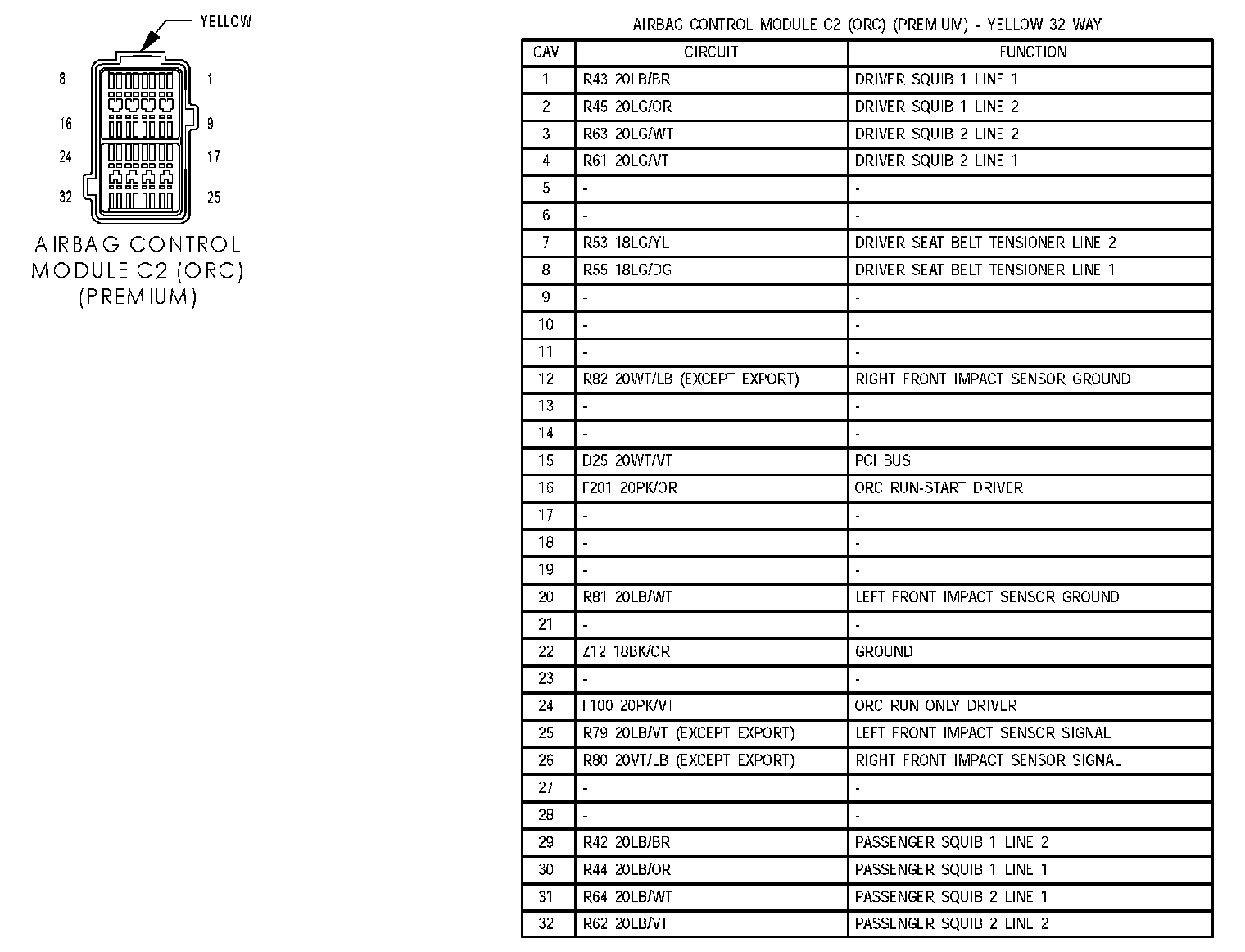

Airbag Control Module C2 [ORC] (Premium):
