Chime Inoperative

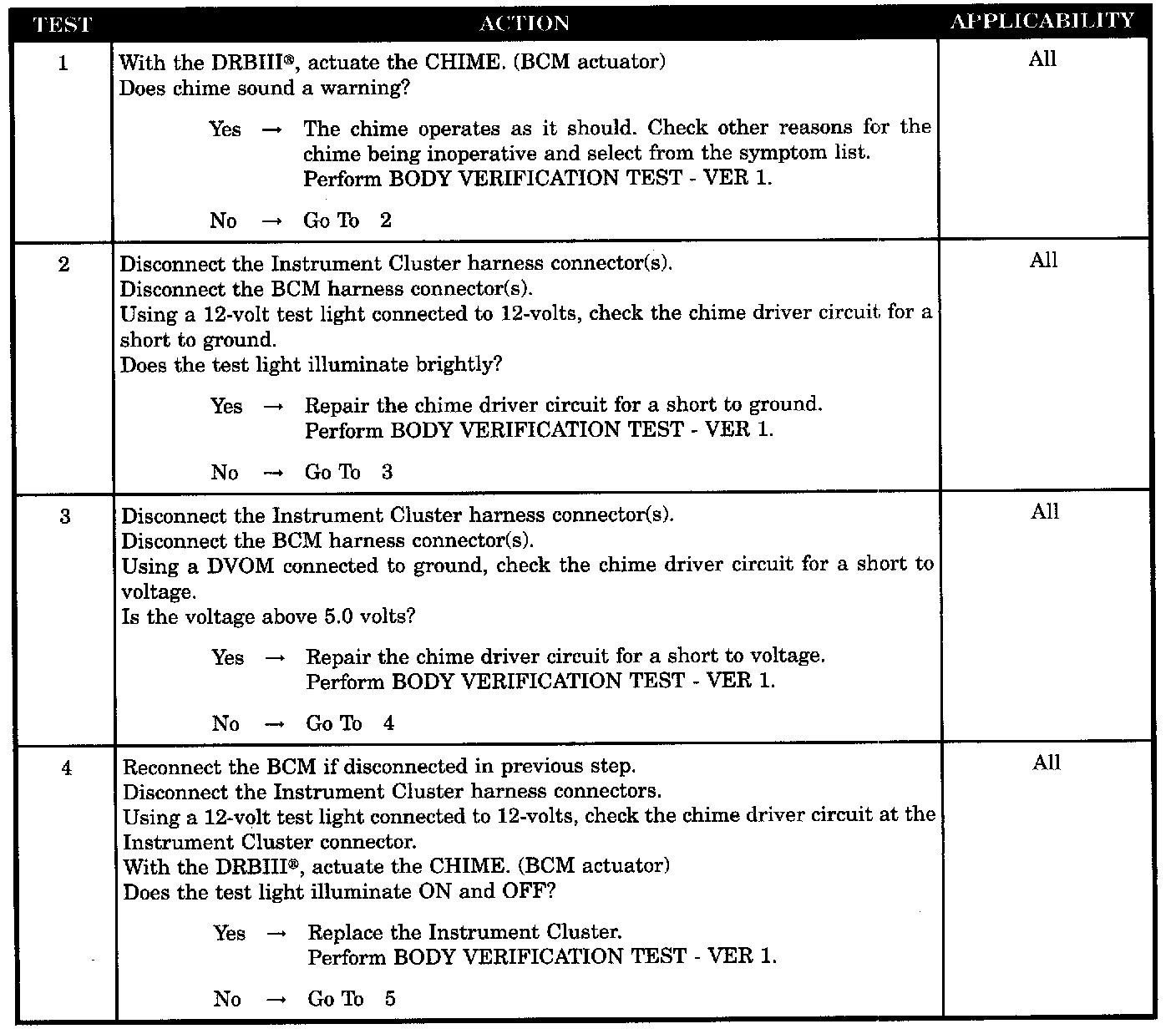

Test 1 - 4:




Test 5:






SYMPTOM
CHIME INOPERATIVE

POSSIBLE CAUSES
- Use DRB to actuate chime
- Chime driver circuit - open
- Chime driver circuit - short to ground
- Chime driver circuit - short to voltage
- Instrument cluster
- BCM
