Liftgate Ajar Circuit Open

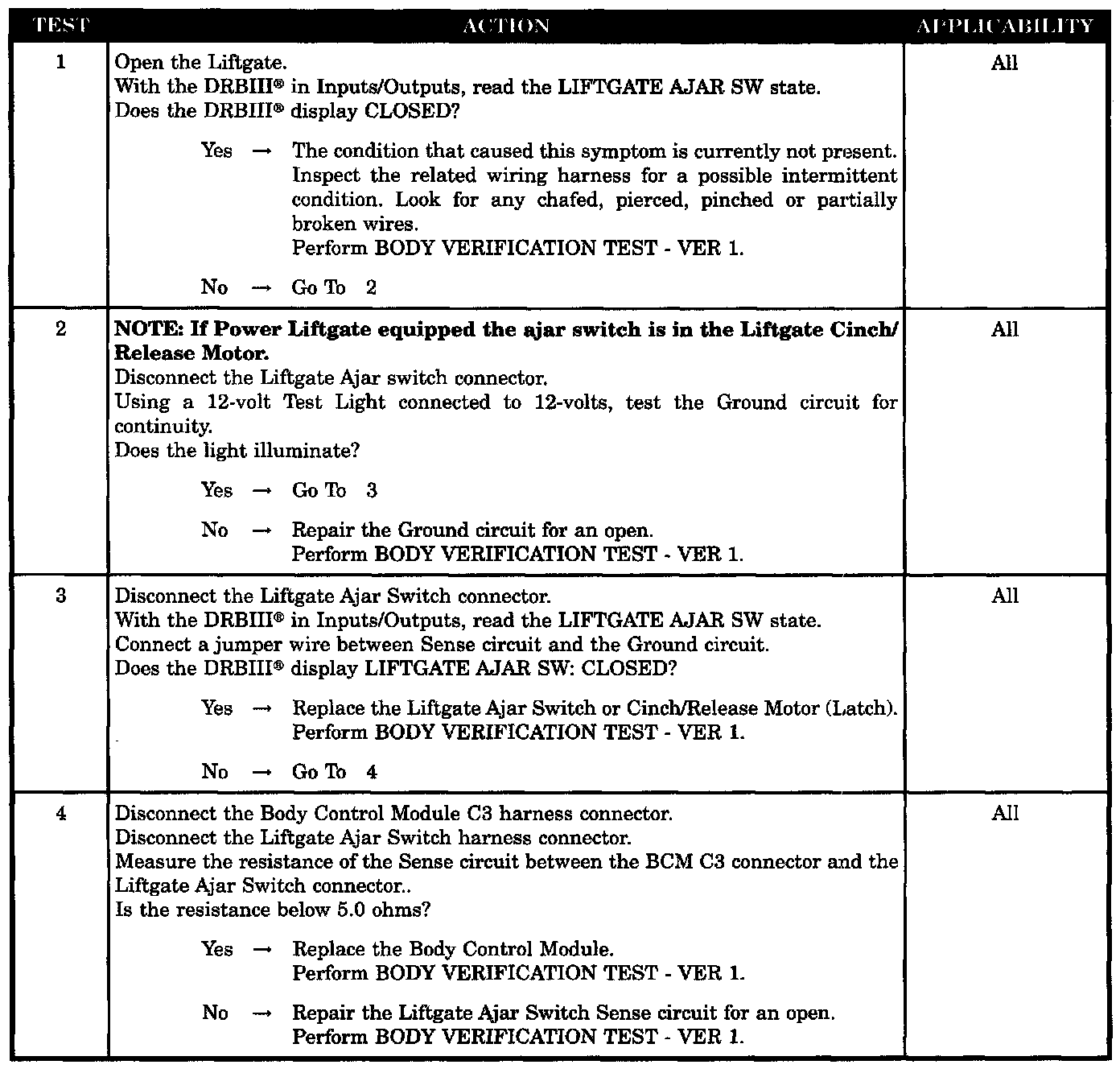

Test 1 - 4:






SYMPTOM
LIFTGATE AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Intermittent condition
- Liftgate ajar switch ground circuit open
- Liftgate ajar switch (cinch/release motor)
- Liftgate ajar switch sense circuit open
- Body control module internal malfunction
