Rear ATC Switch LED(s)/Backlighting Inoperative

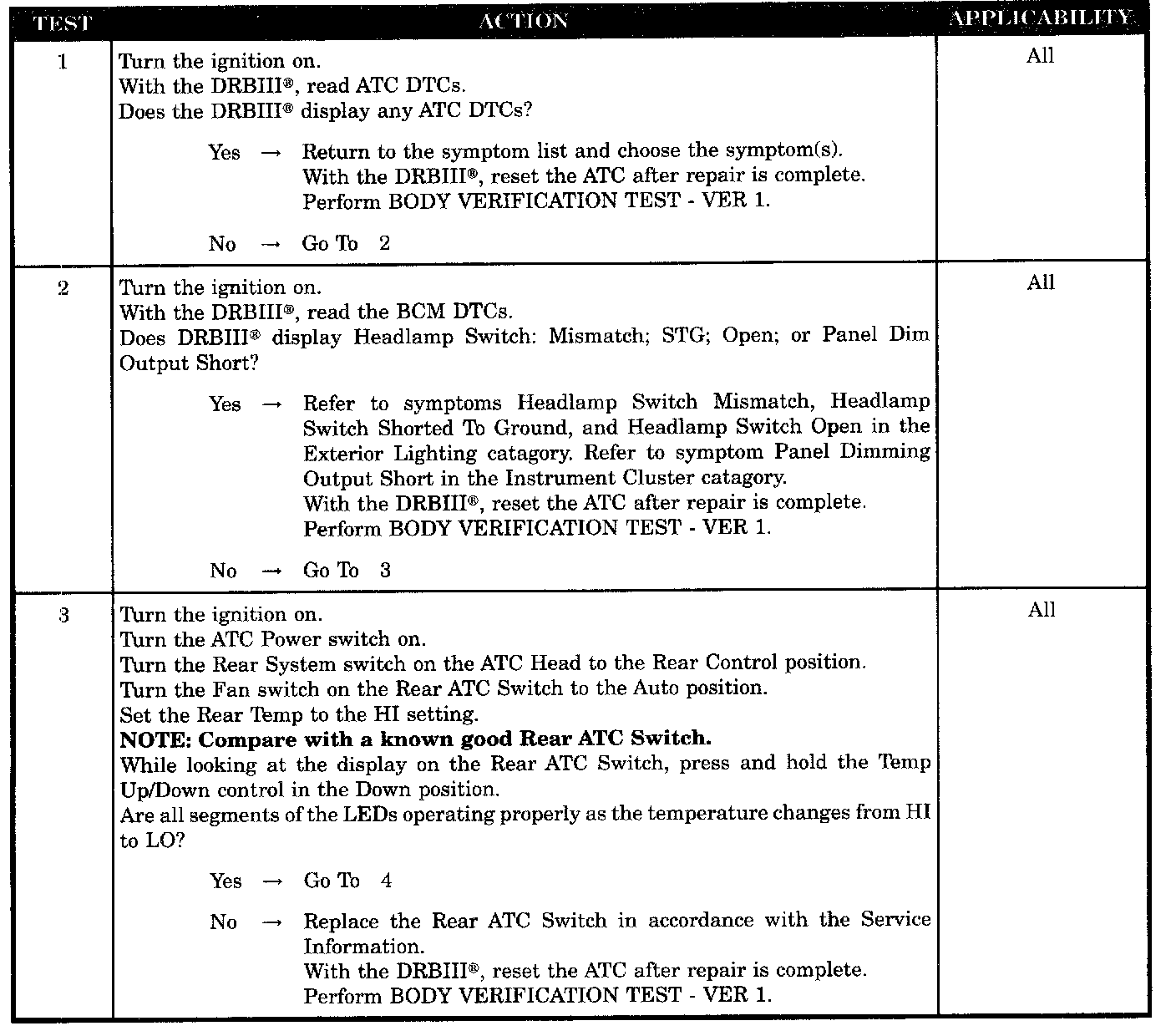

Test 1 - 3:

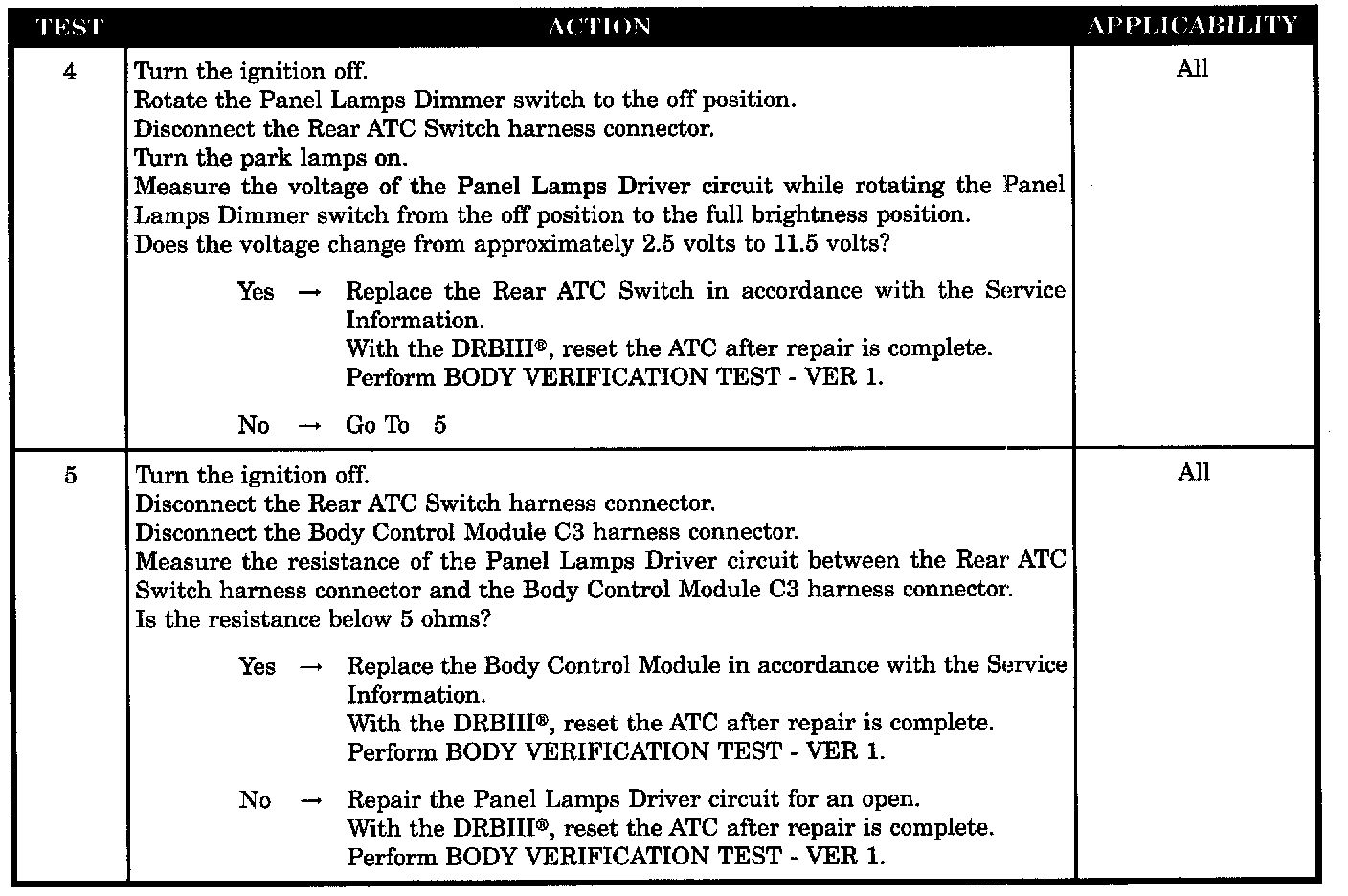

Test 4 - 5:

SYMPTOM
REAR ATC SWITCH LED(S)/BACK LIGHTING INOPERATIVE

POSSIBLE CAUSES
- Check for ATC DTCs
- Check for BCM DTCs
- Rear ATC switch - LED(S) inoperative
- Rear ATC switch - back lighting inoperative
- Panel lamps driver circuit open
- Body control module - panel lamps driver open
