Any PCI Bus Indicator Inoperative

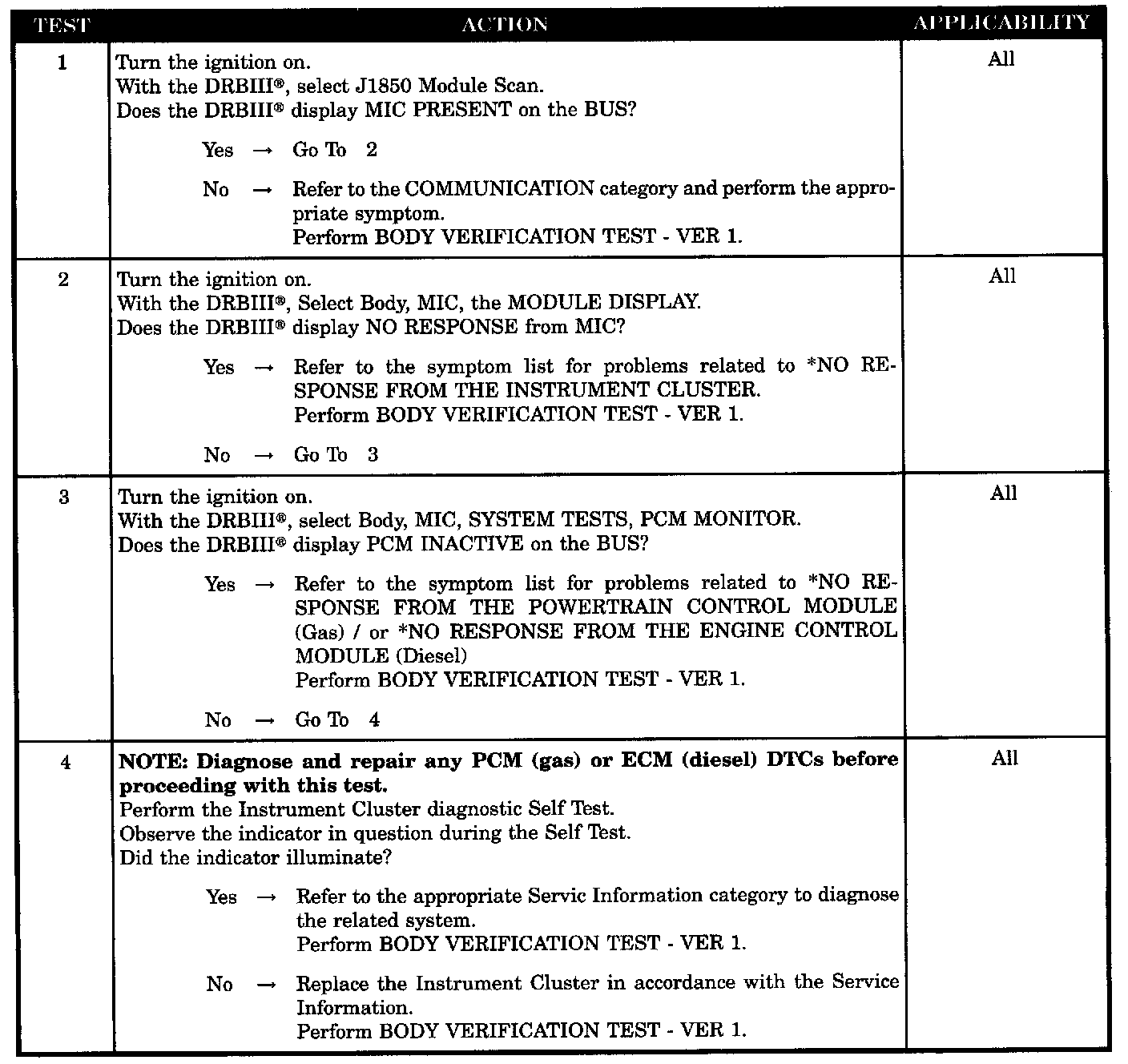

Test 1 - 4:






SYMPTOM
ANY PCI BUS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- No response - PCI bus
- No response - instrument cluster
- No response - ECM/PCM
- Indicator inoperative
- Instrument cluster
