Remote Radio Controls Inoperative

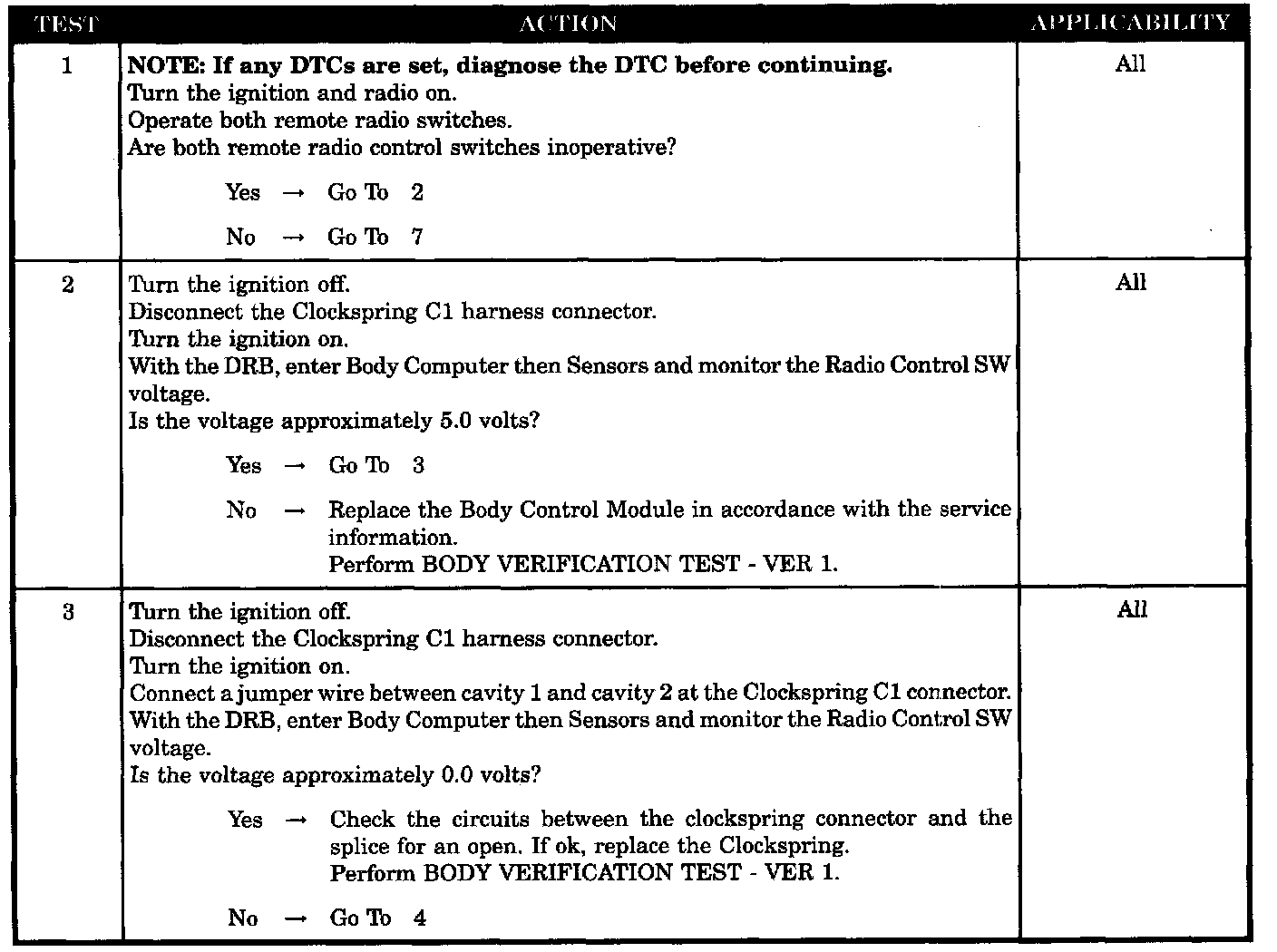

Test 1 - 3:

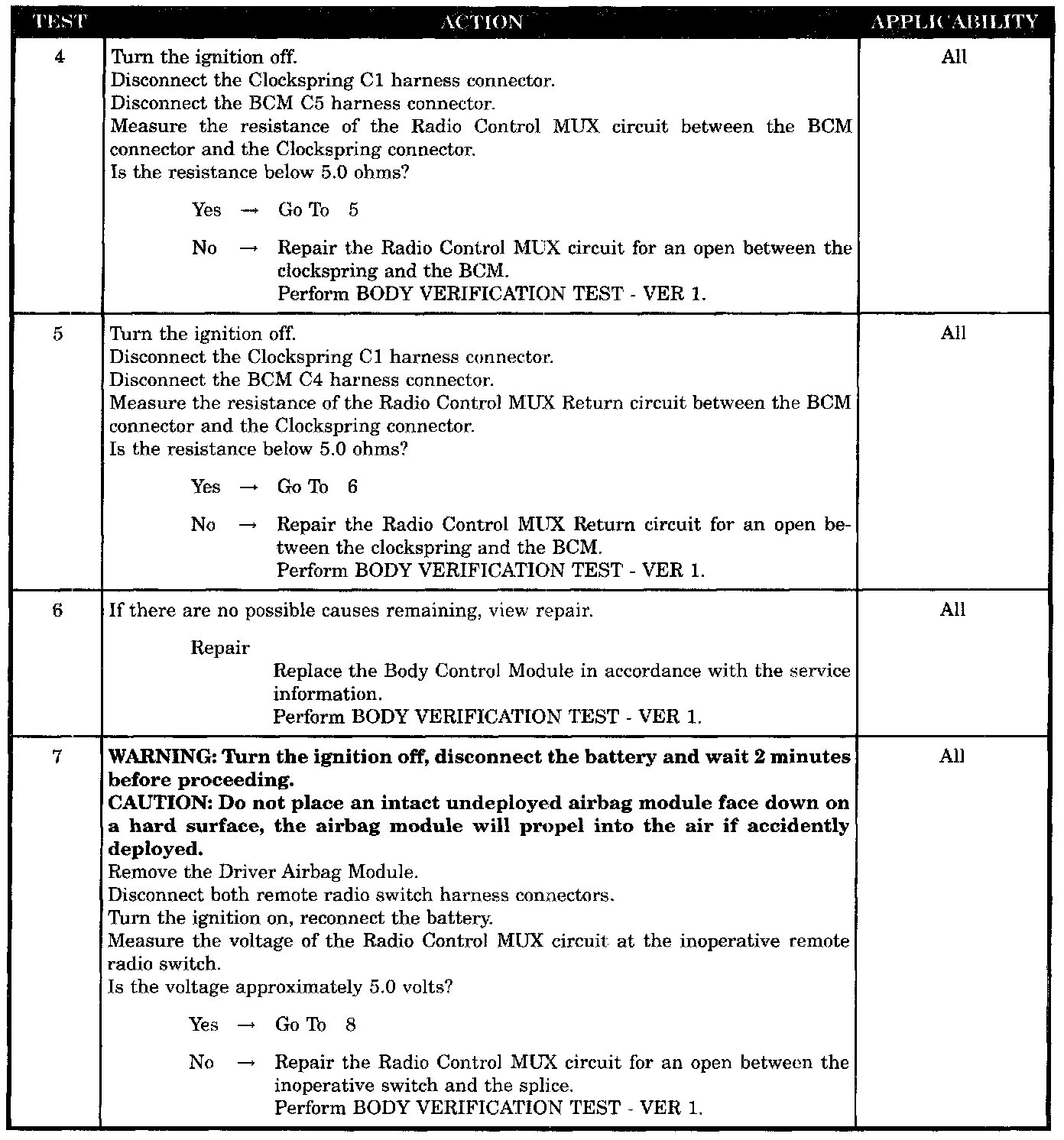

Test 4 - 7:

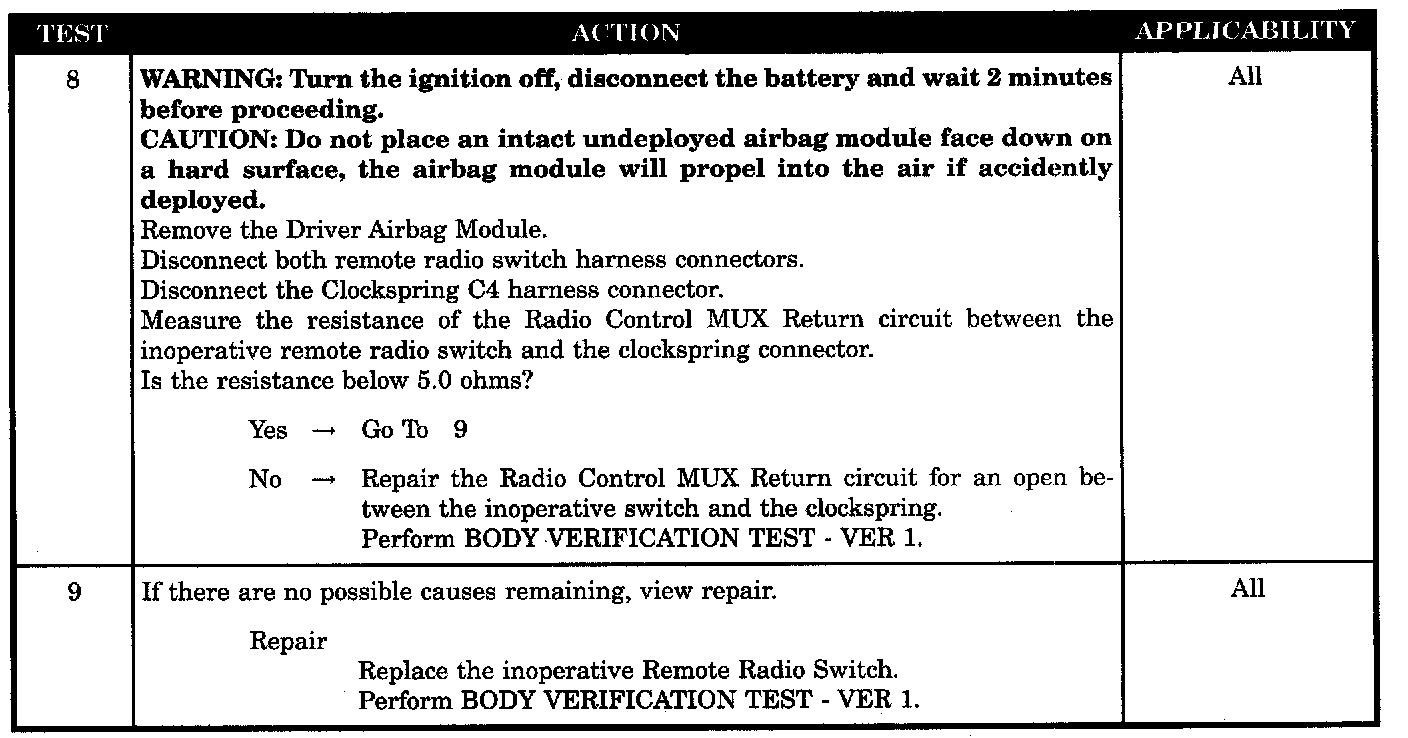

Test 8 - 9:

SYMPTOM
REMOTE RADIO CONTROLS INOPERATIVE

POSSIBLE CAUSES
- Open radio control MUX circuit at the switch
- Open radio control MUX return circuit at the switch
- Remote radio switch
- Body control module - internal short
- Open clockspring
- Open radio control MUX circuit
- Open radio control MUX return circuit
- Body control module - open internal
