HVAC System Test

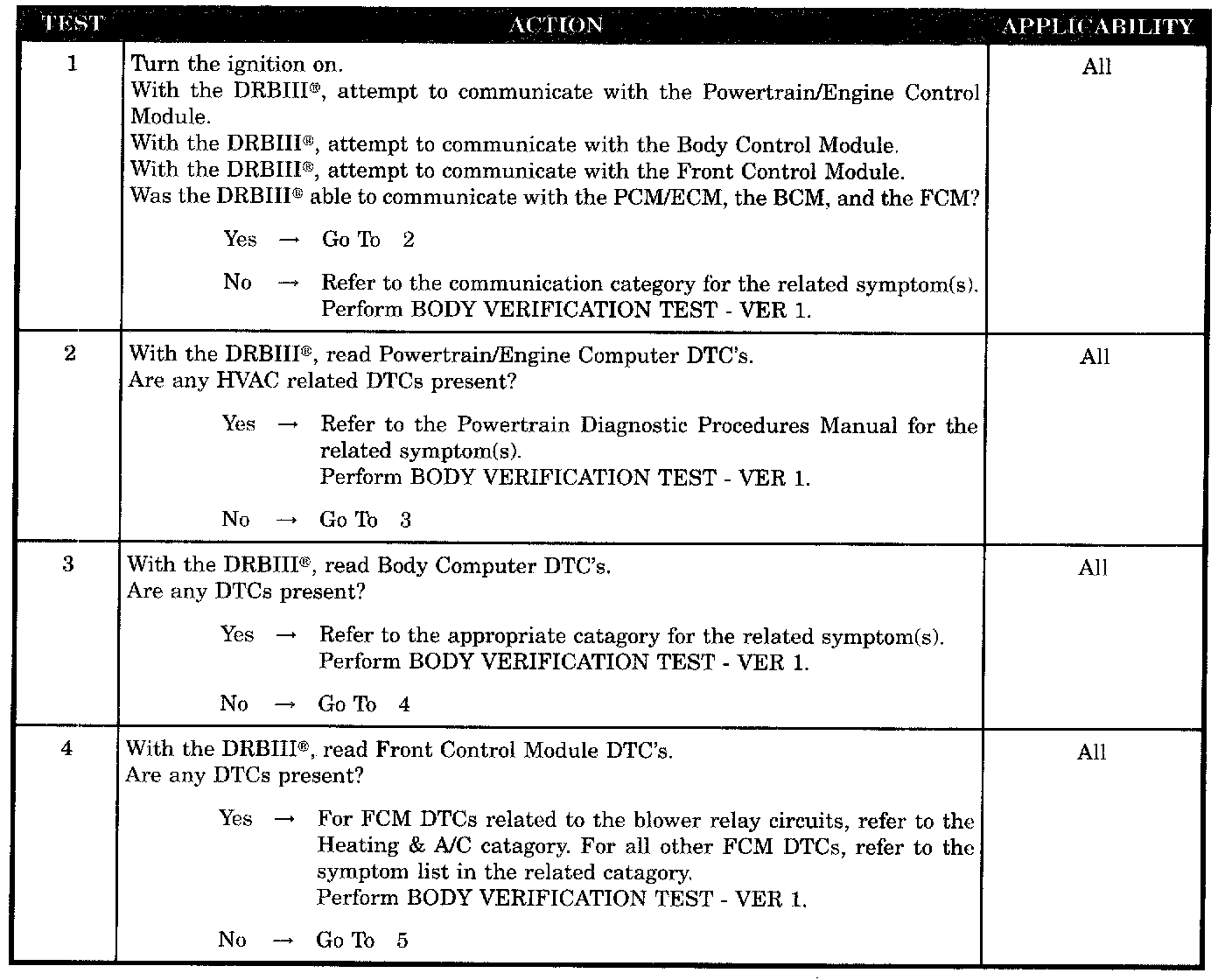

Test 1 - 4:

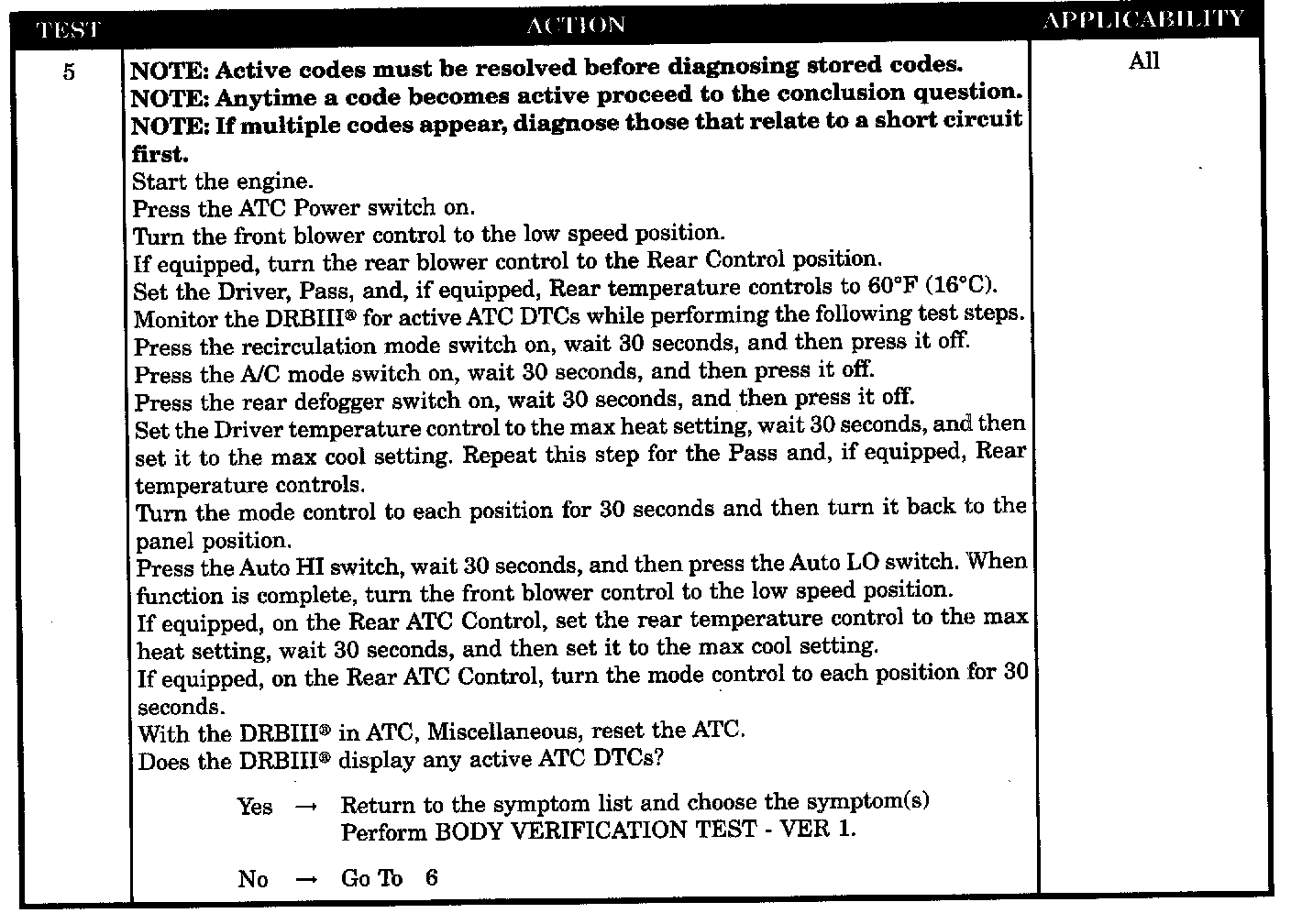

Test 5:

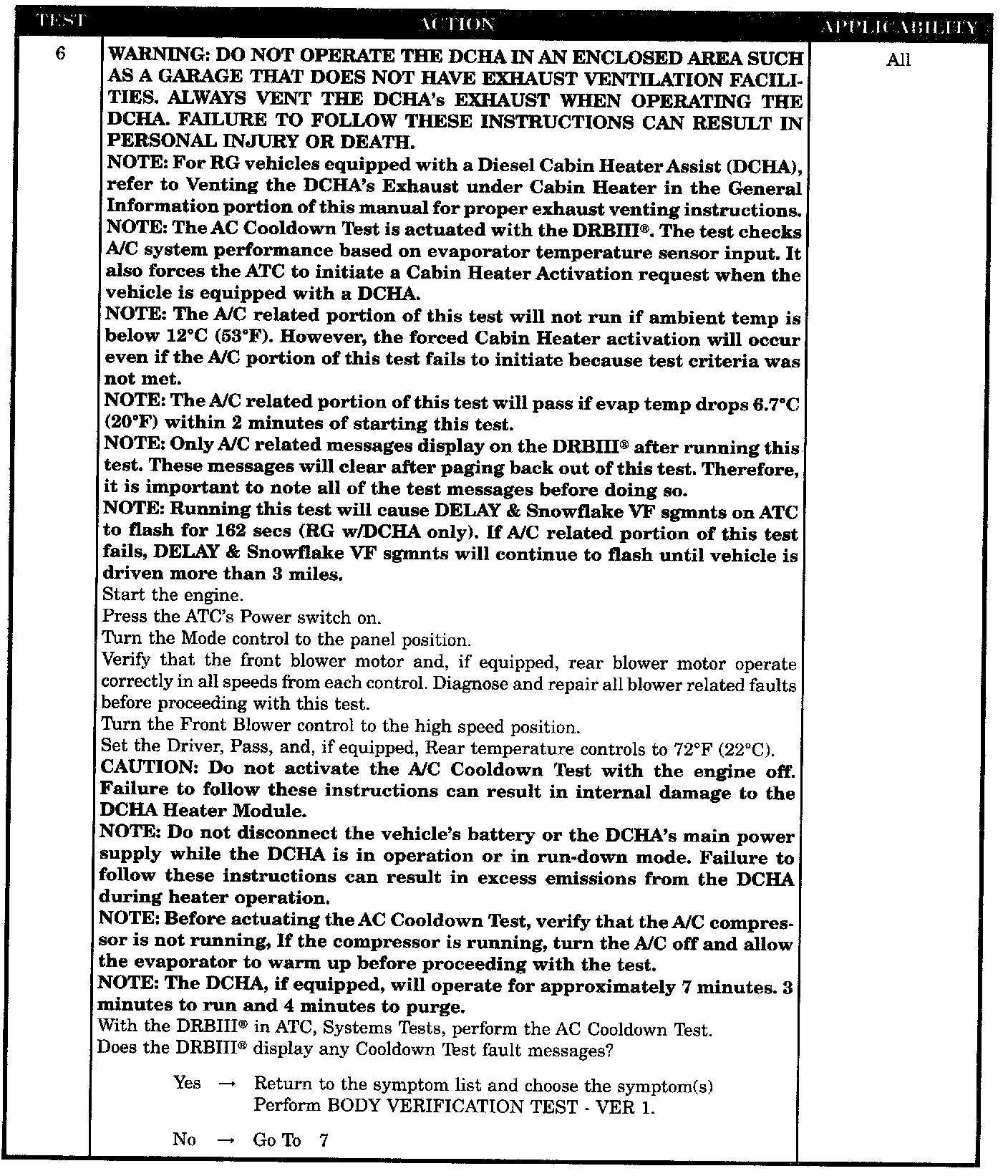

Test 6:

Test 7:

SYMPTOM
HVAC SYSTEM TEST

POSSIBLE CAUSES
- Attempt to communicate with the PCM/ECM, the BCM, and the FCM
- Check for HVAC related DTCs in the PCM/ECM
- Check for BCM DTCs
- Check for FCM DTCs
- Check for ACTIVE ATC DTCs
- Check for AC cooldown test fault messages
- Check for HVAC related DTCs in the PCM/ECM
- Manual A/C system test
