Connector Identification

For connector identification, see Fig 1 .

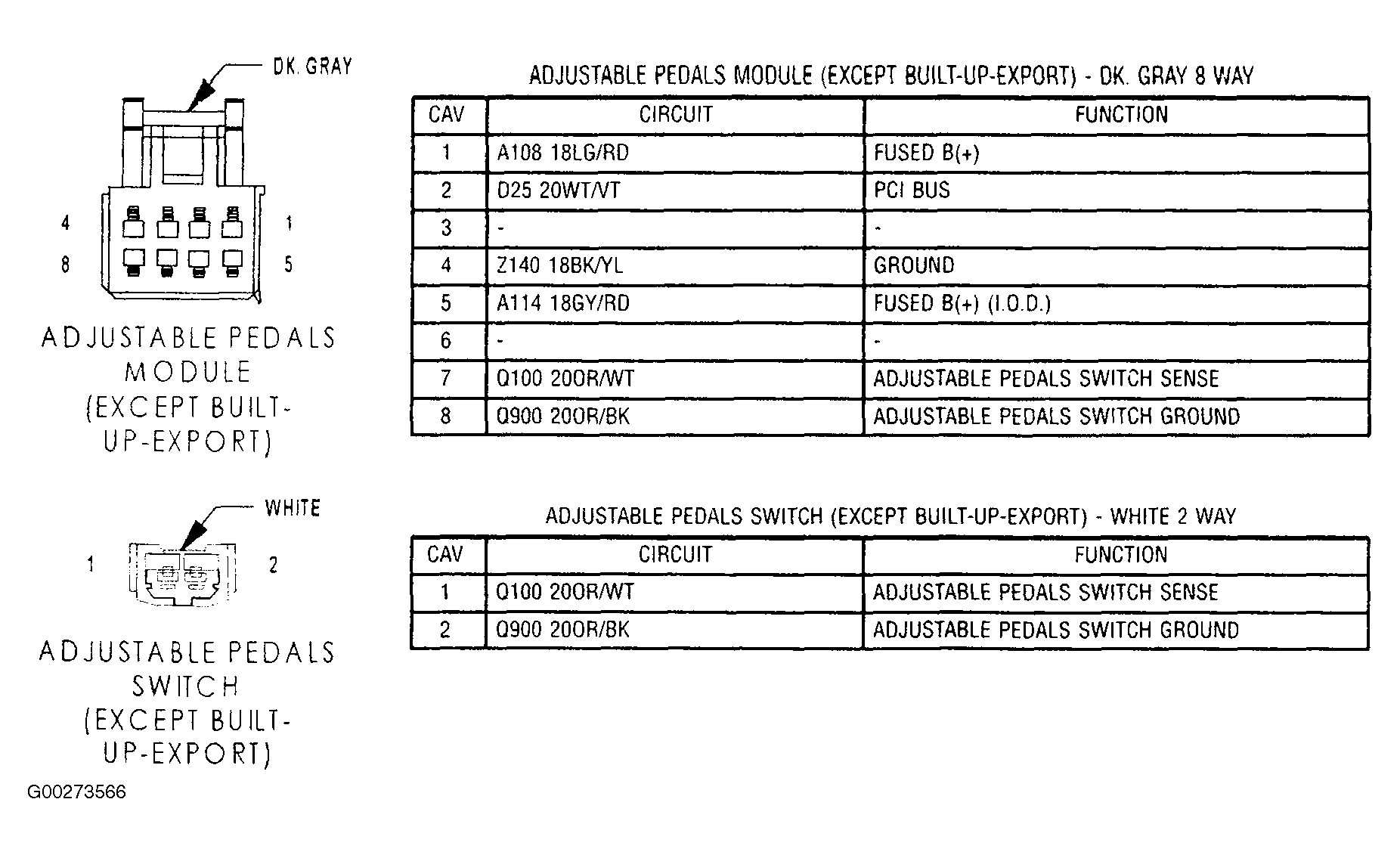

Fig 1: Identifying Adjustable Pedal Module Connector
G00273566Courtesy of CHRYSLER CORP.
