Verification Tests

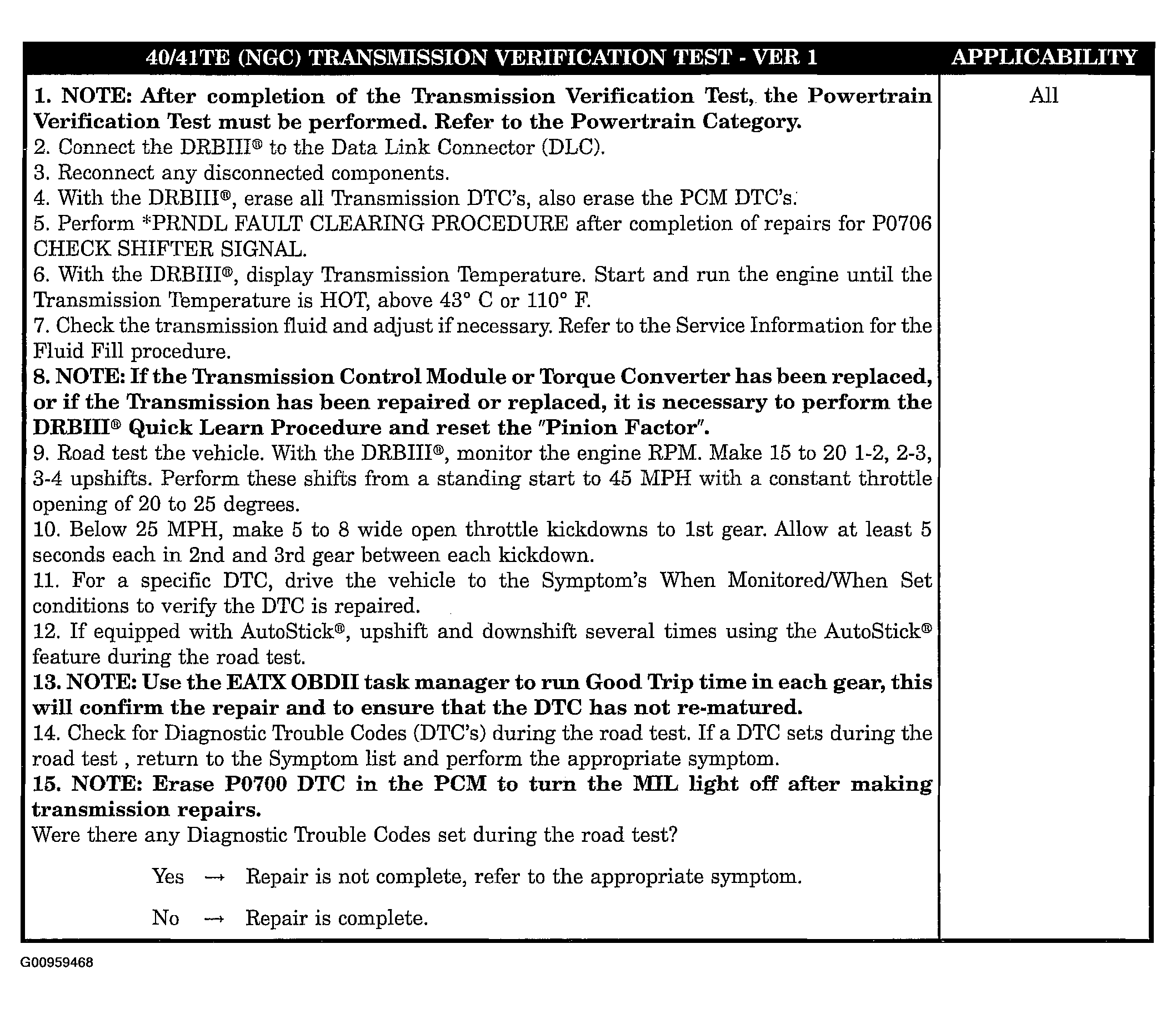

Fig 1: Transmission Verification Test - VER 1
G00959468Courtesy of DAIMLERCHRYSLER CORP.

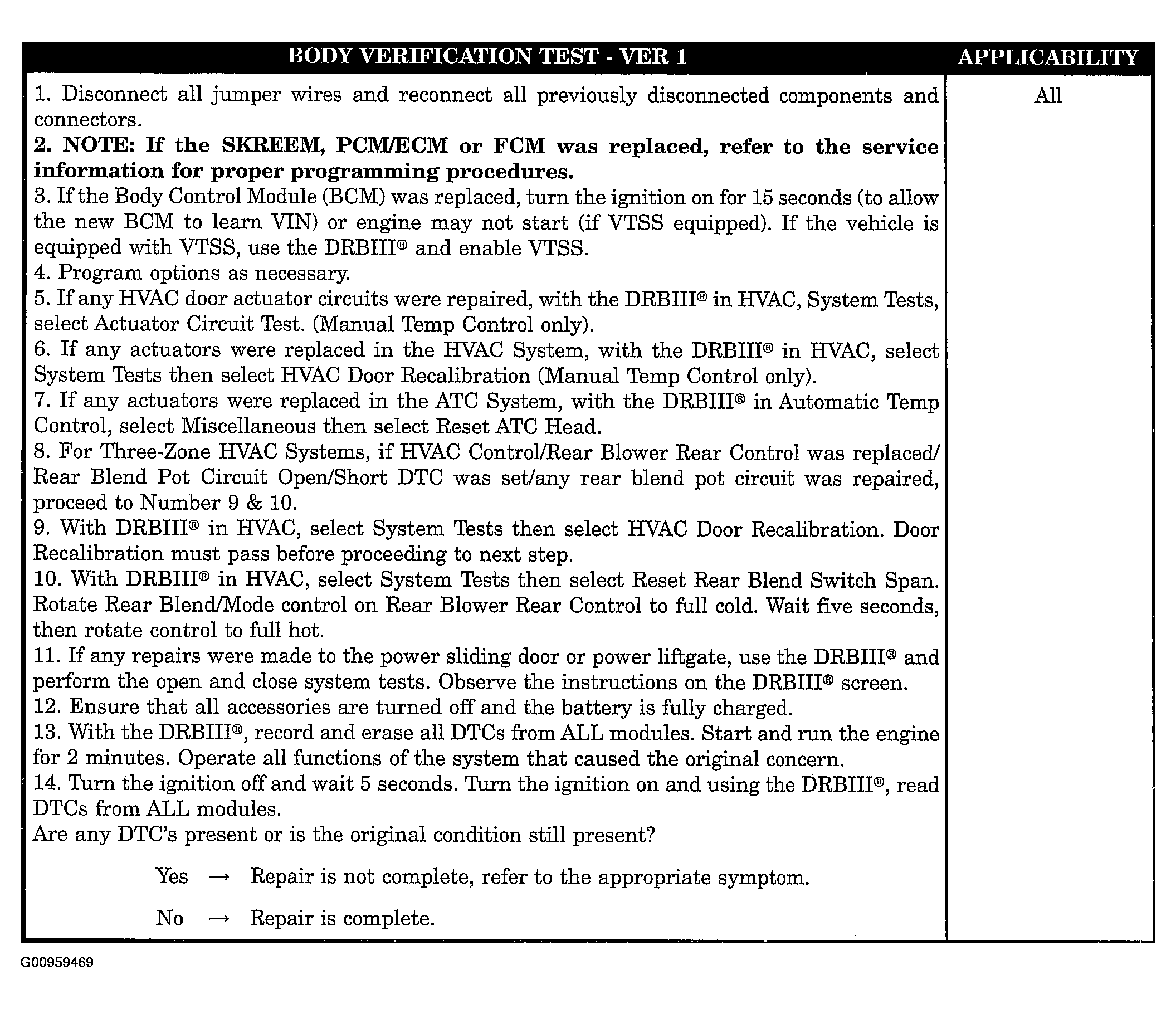

Fig 2: Body Verification Test - VER 1
G00959469Courtesy of DAIMLERCHRYSLER CORP.

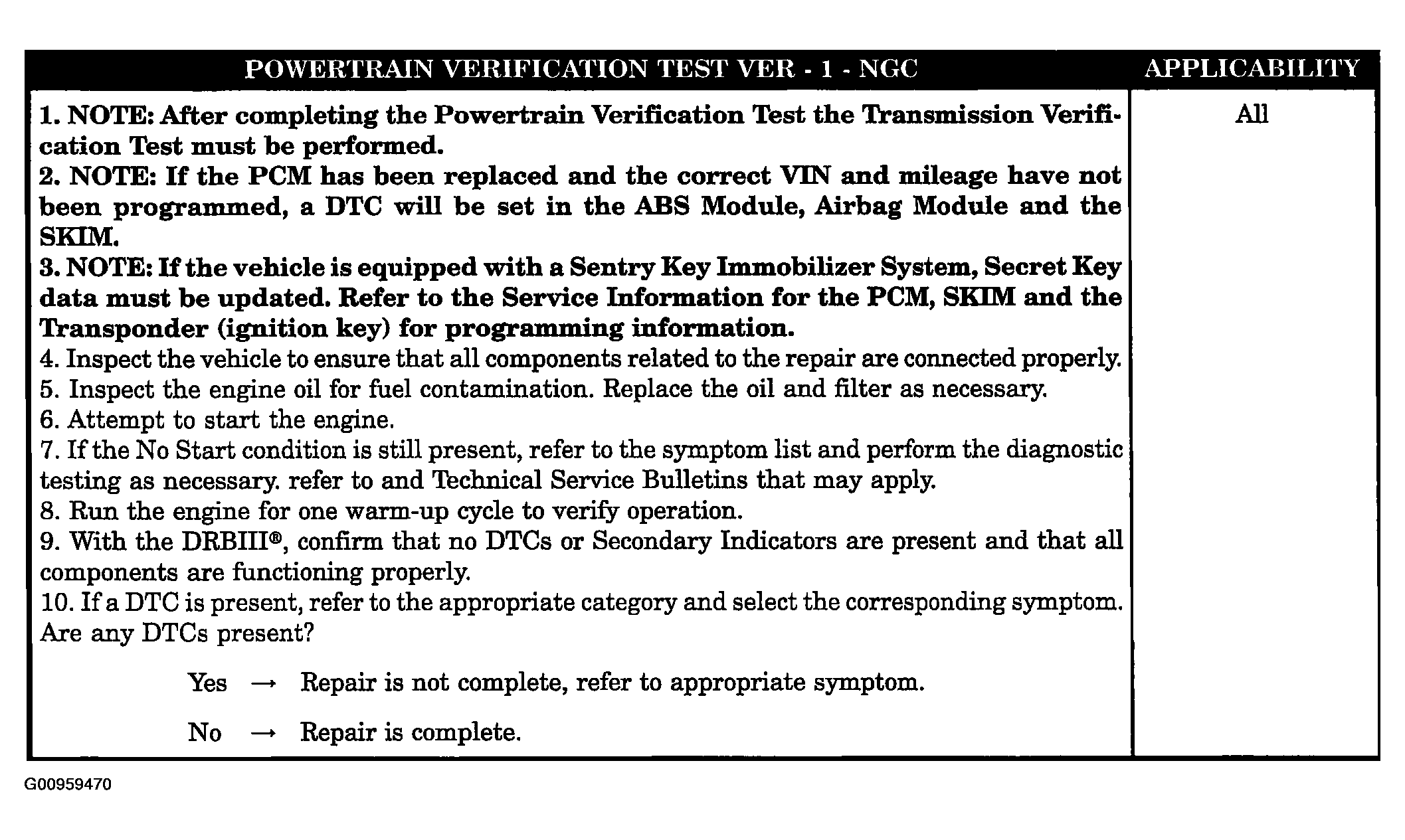

Fig 3: Powertrain Verification Test - VER 1
G00959470Courtesy of DAIMLERCHRYSLER CORP.

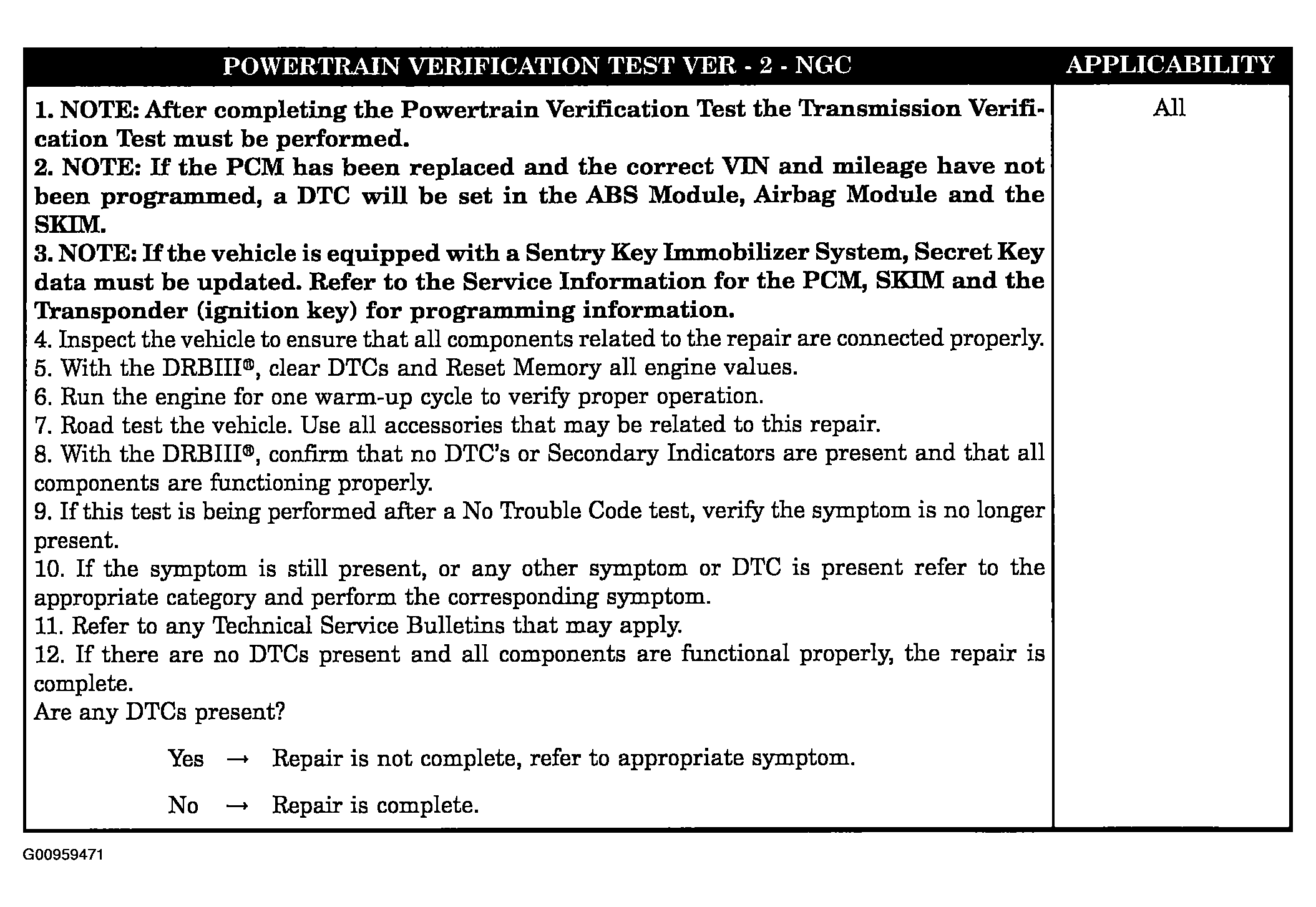

Fig 4: Powertrain Verification Test - VER 2
G00959471Courtesy of DAIMLERCHRYSLER CORP.

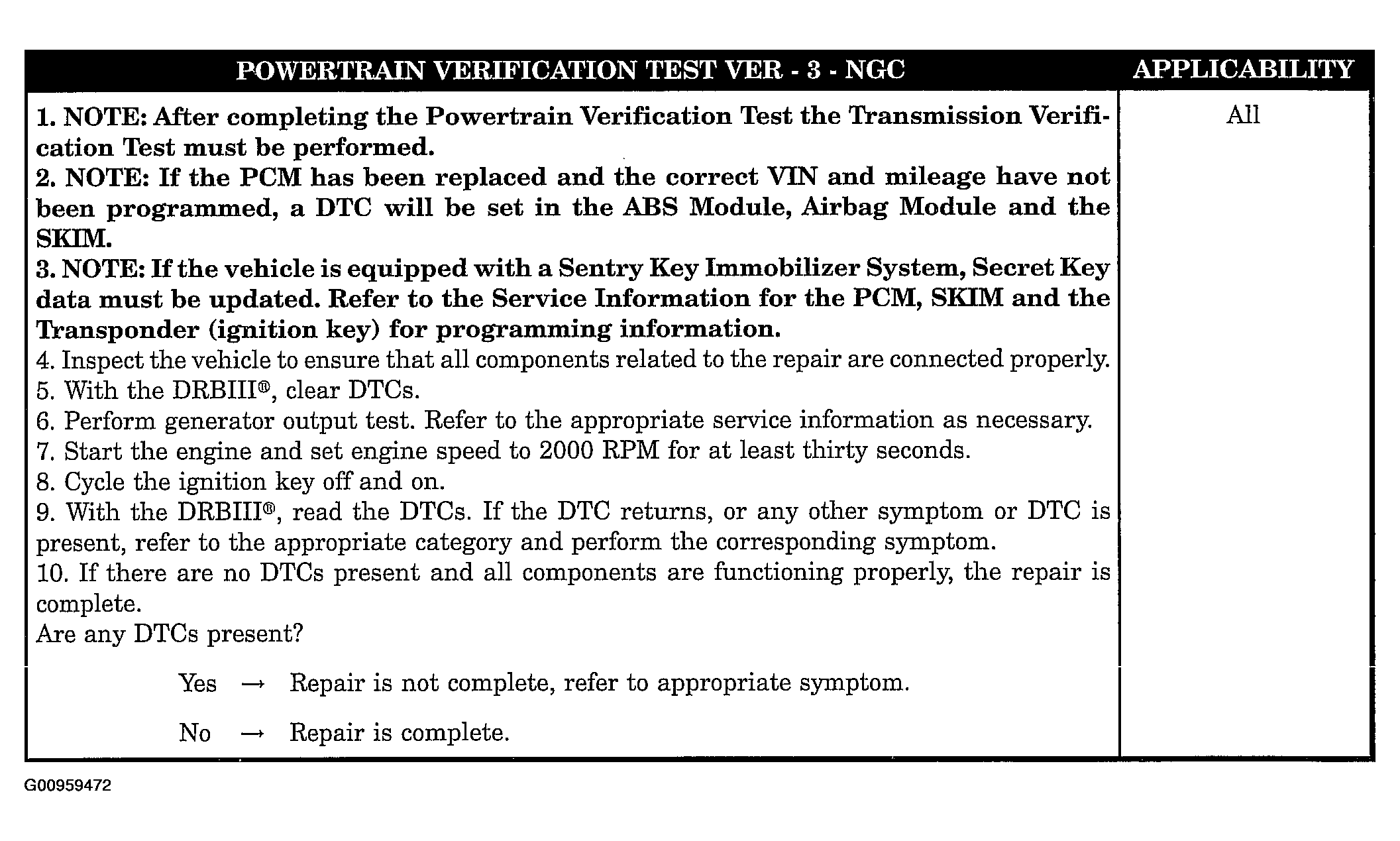

Fig 5: Powertrain Verification Test - VER 3
G00959472Courtesy of DAIMLERCHRYSLER CORP.

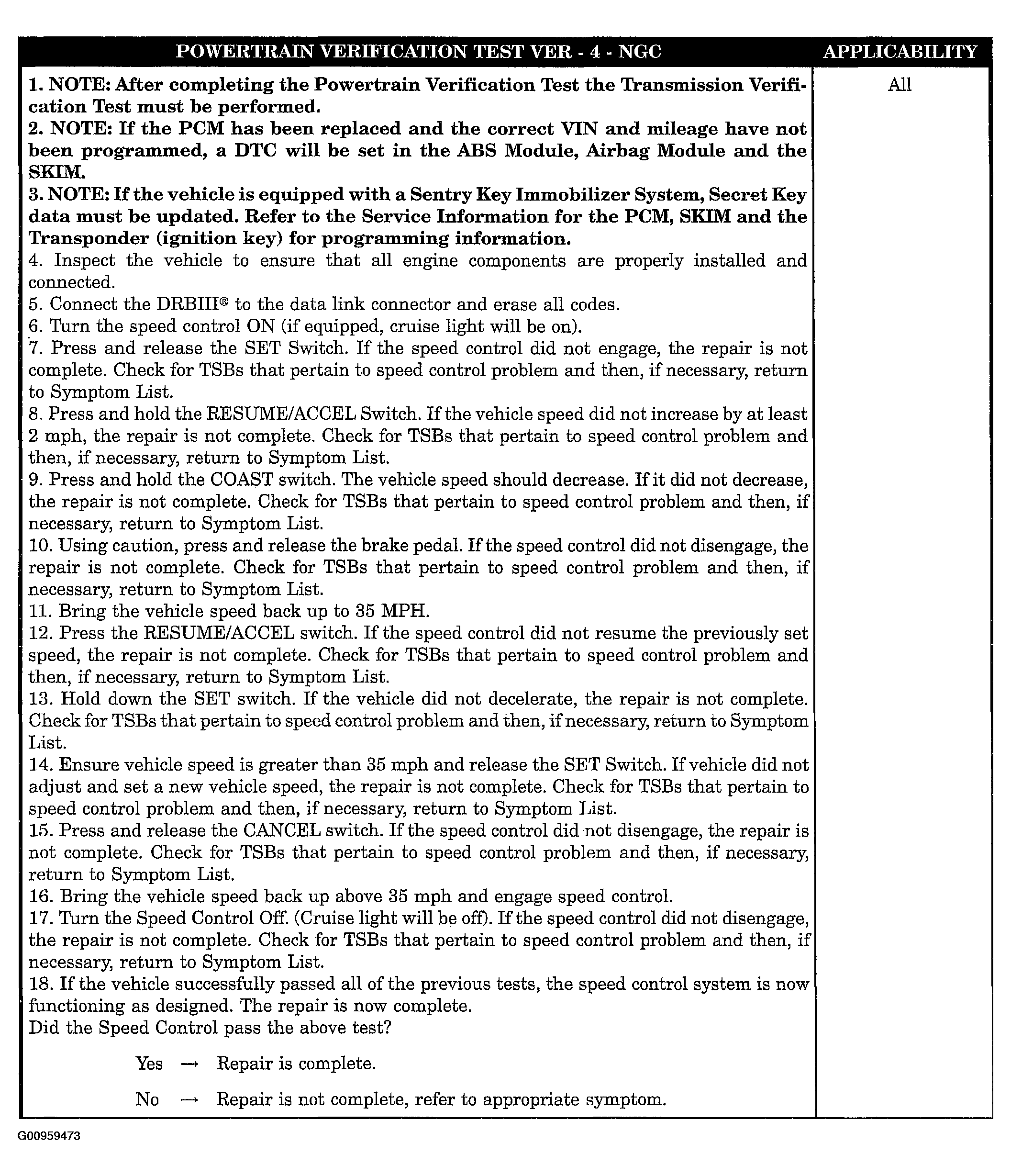

Fig 6: Powertrain Verification Test - VER 4
G00959473Courtesy of DAIMLERCHRYSLER CORP.

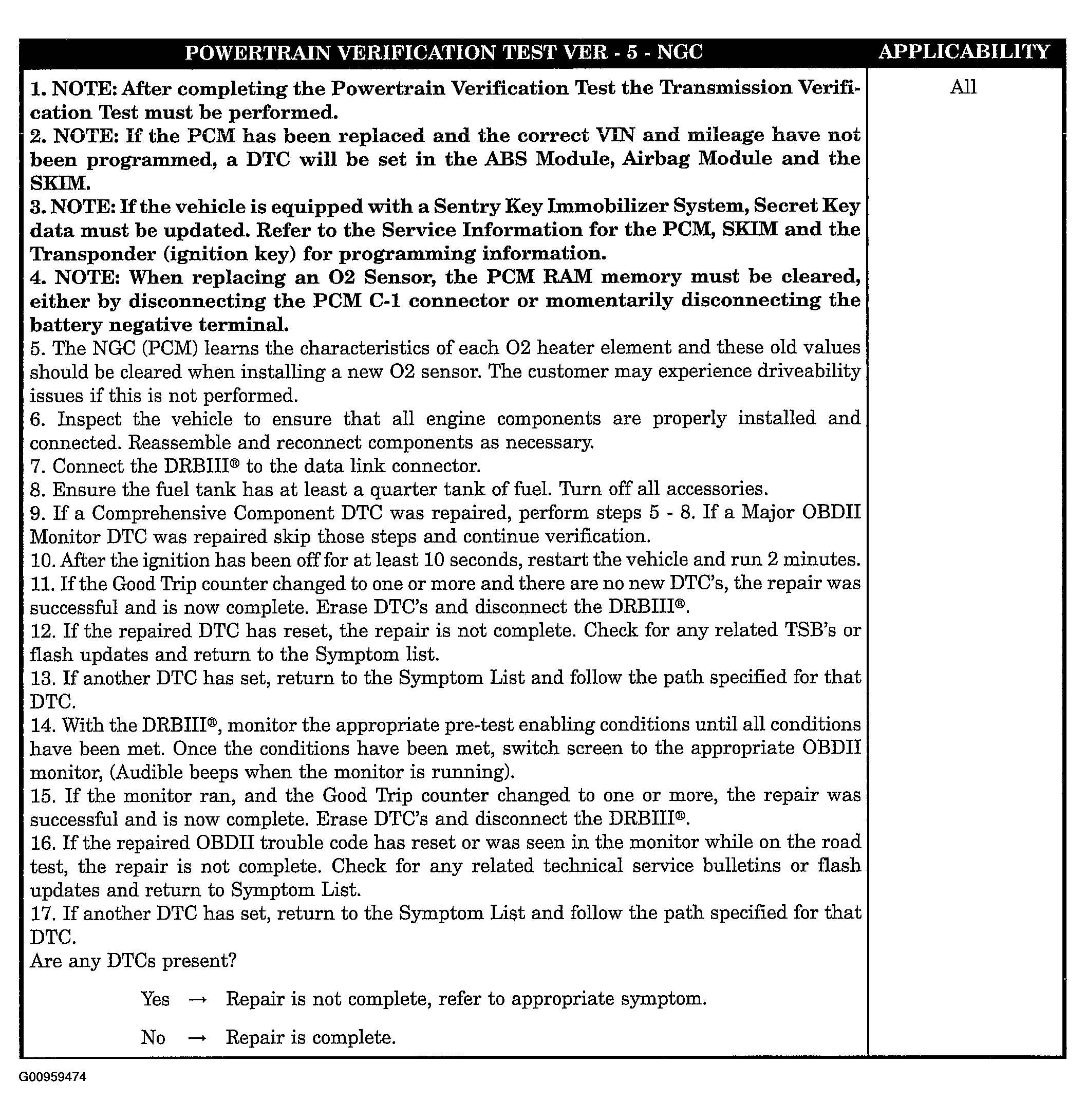

Fig 7: Powertrain Verification Test - VER 5
G00959474Courtesy of DAIMLERCHRYSLER CORP.

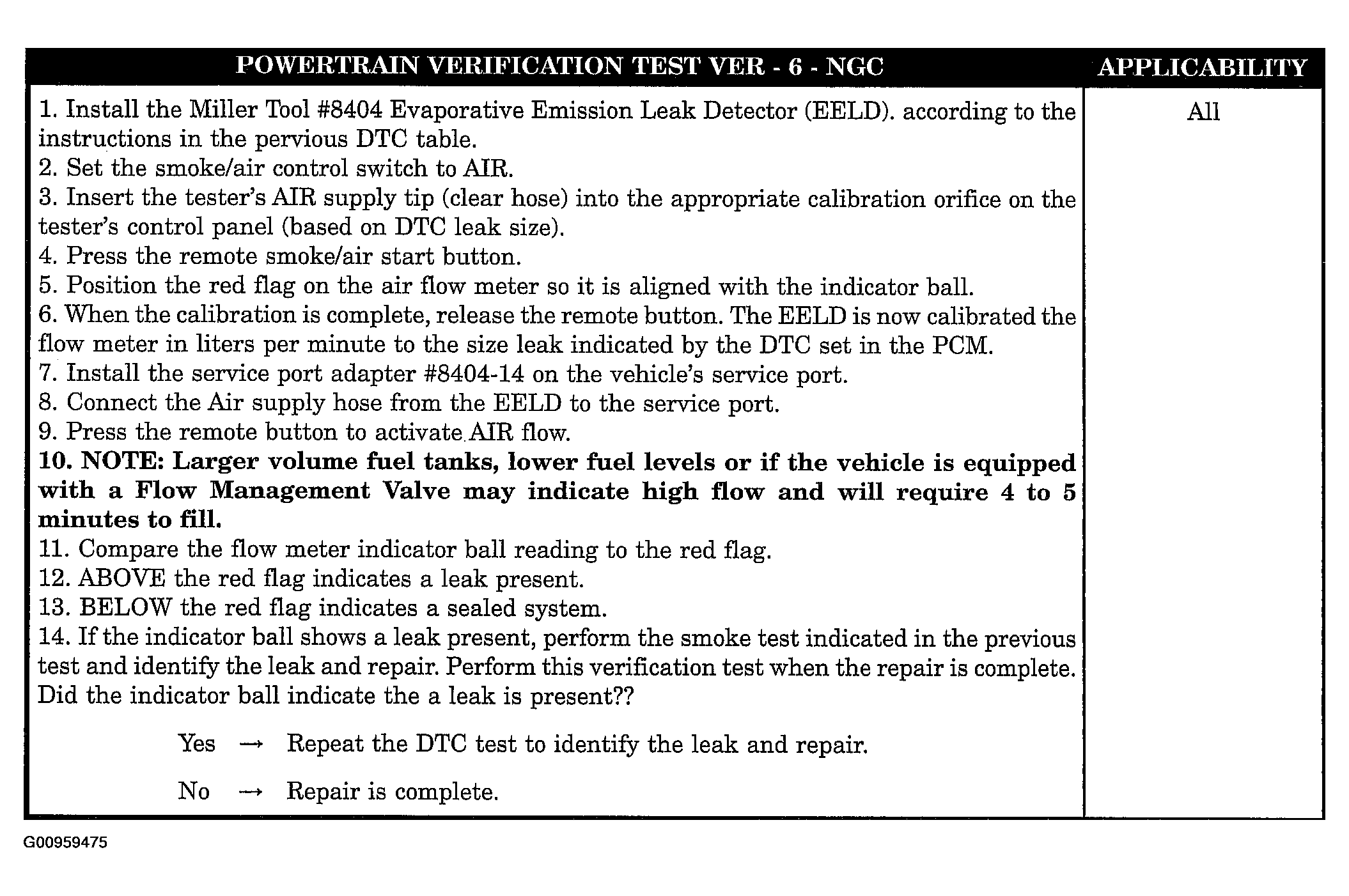

Fig 8: Powertrain Verification Test - VER 6
G00959475Courtesy of DAIMLERCHRYSLER CORP.

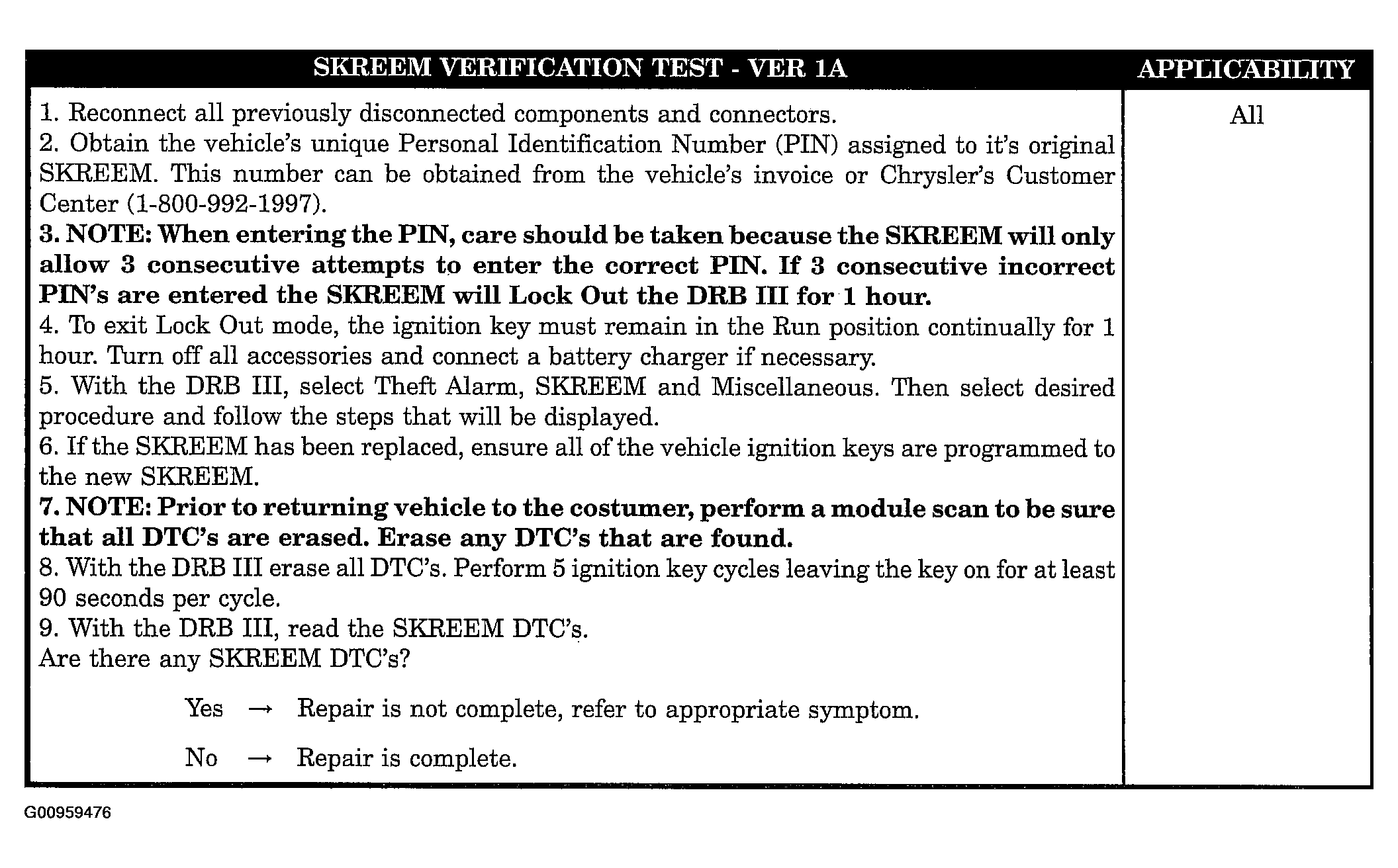

Fig 9: SKREEM Verification Test - VER 1A
G00959476Courtesy of DAIMLERCHRYSLER CORP.
