LHD

REMOVAL
1. Disconnect the negative battery cable.

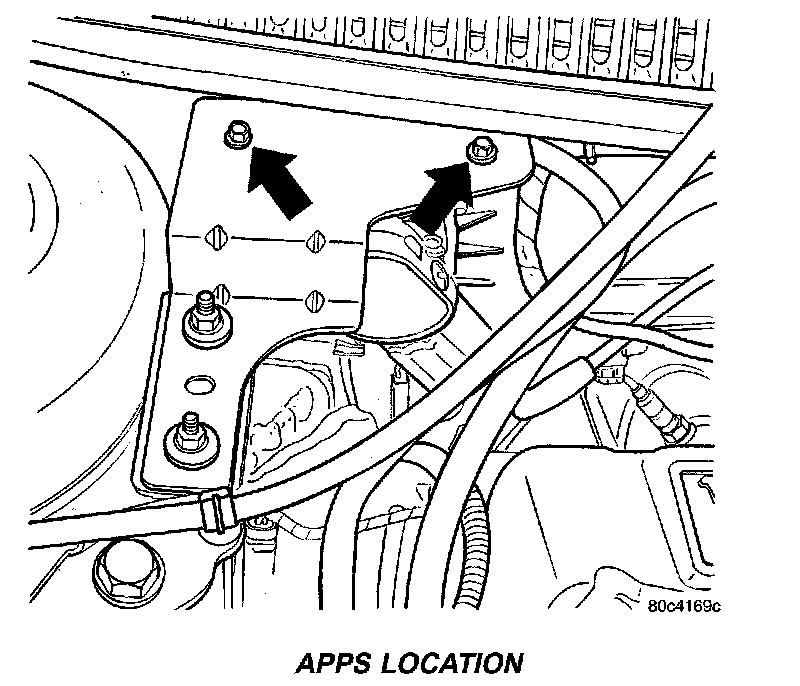

APPS Location:

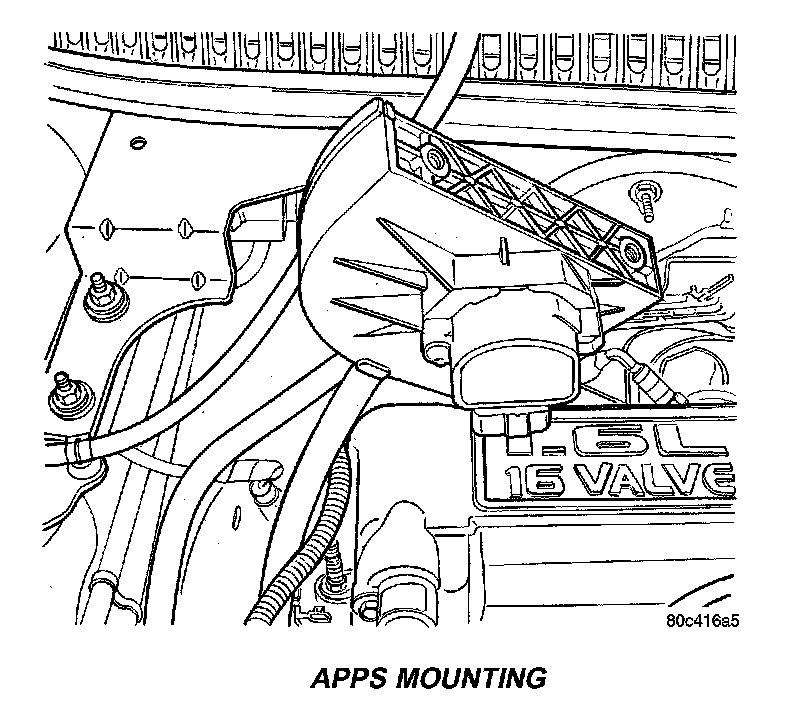

APPS Mounting:

2. Remove the 2 mounting bolts.
3. Open APPS module and disconnect the cable.
4. Remove APPS module.

INSTALLATION

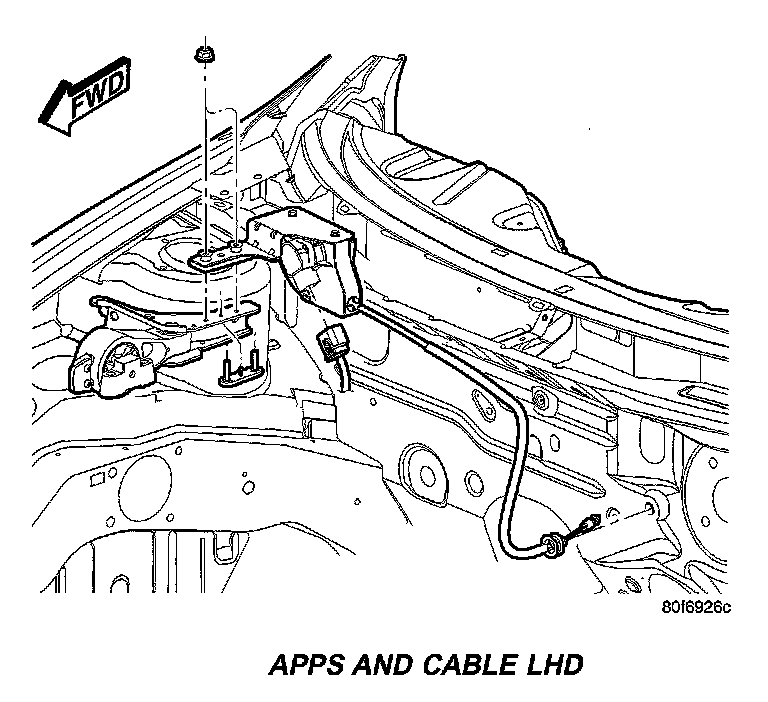

AAPS And Cable LHD:

1. Open APPS module and connect the cable.
2. Install APPS module.
3. Tighten the 2 mounting bolts.
4. Connect the negative battery cable.
