Engine Control Module

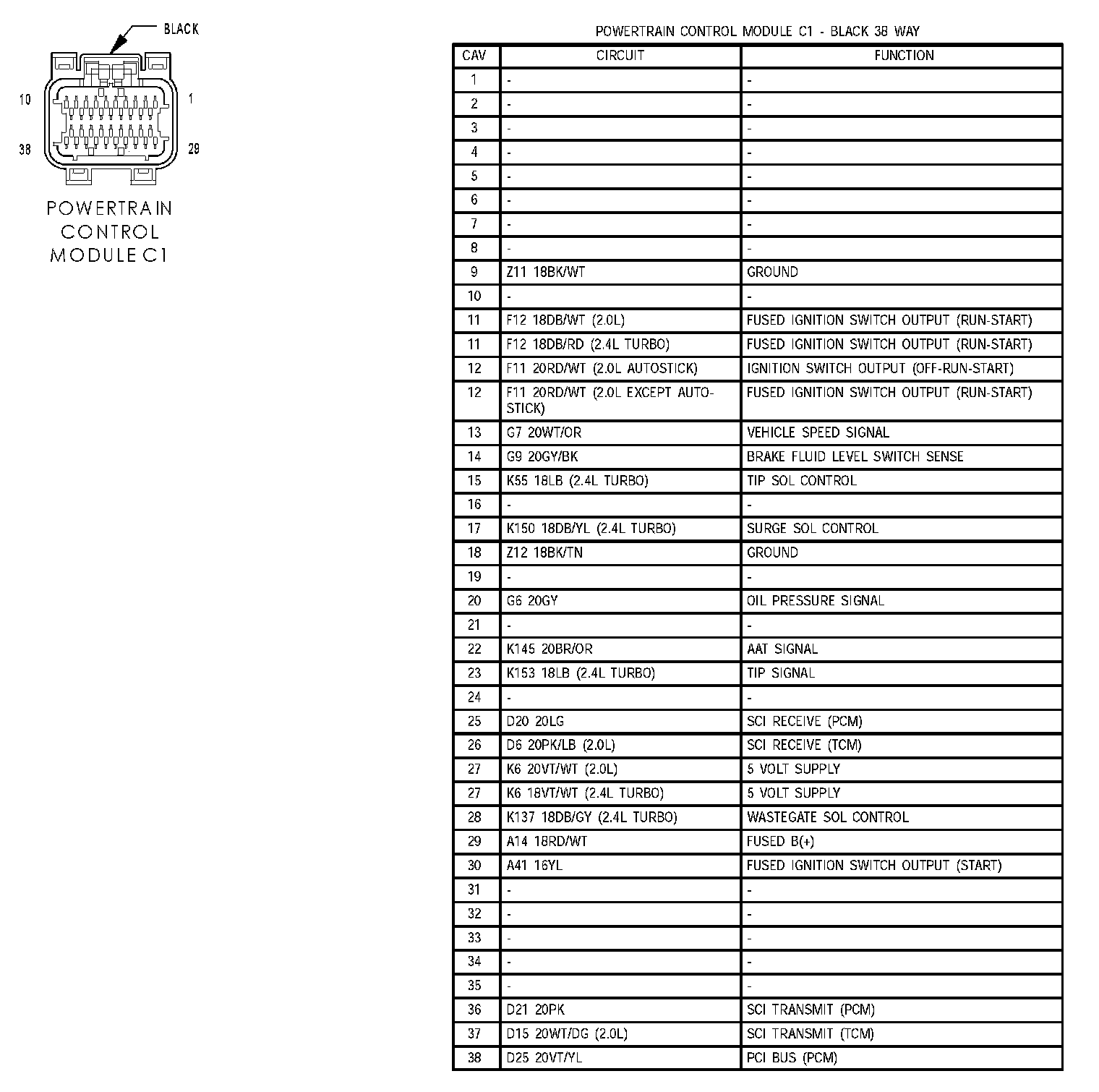

Power Train Control Module C1:

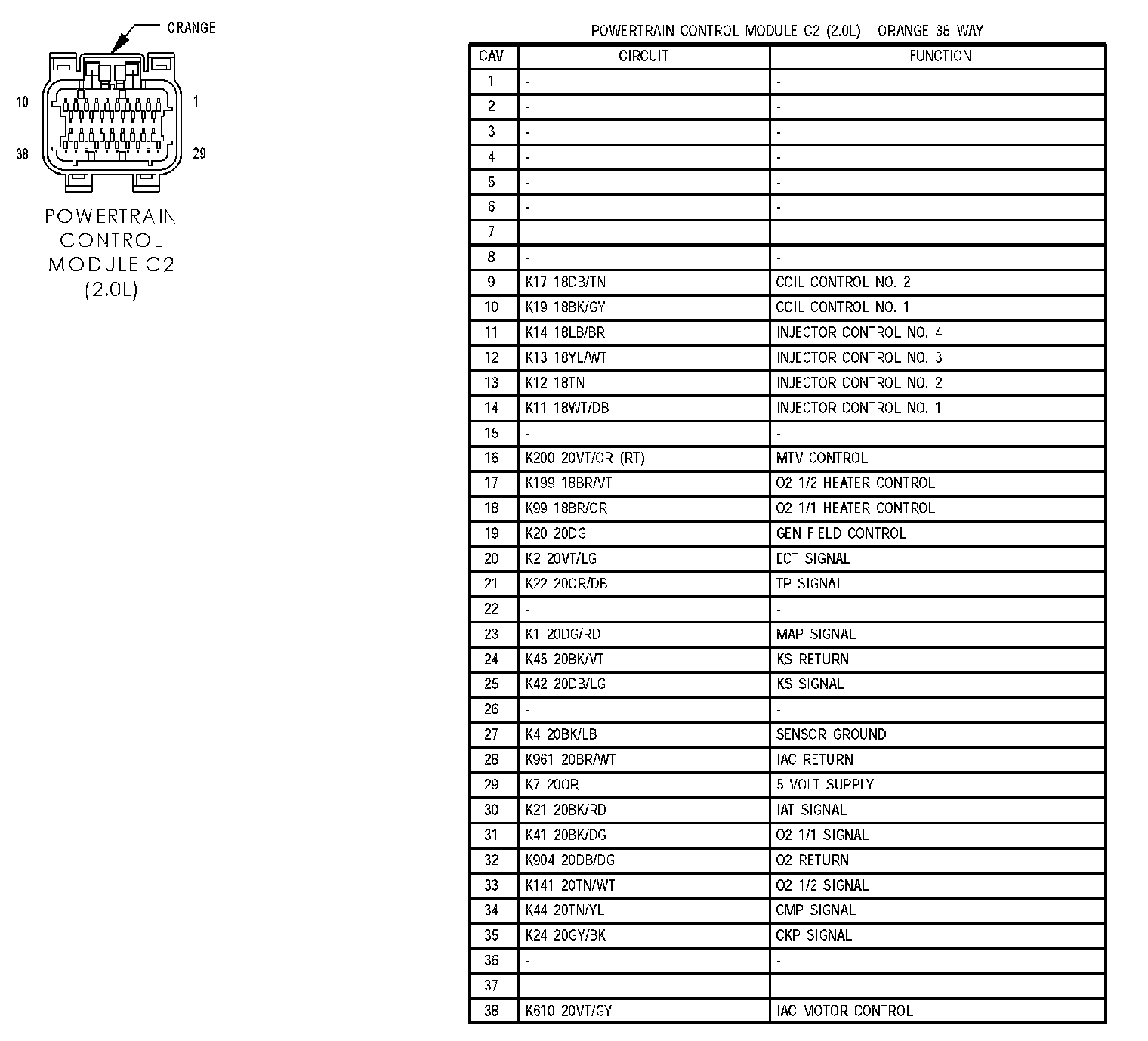

Power Train Control Module C2:

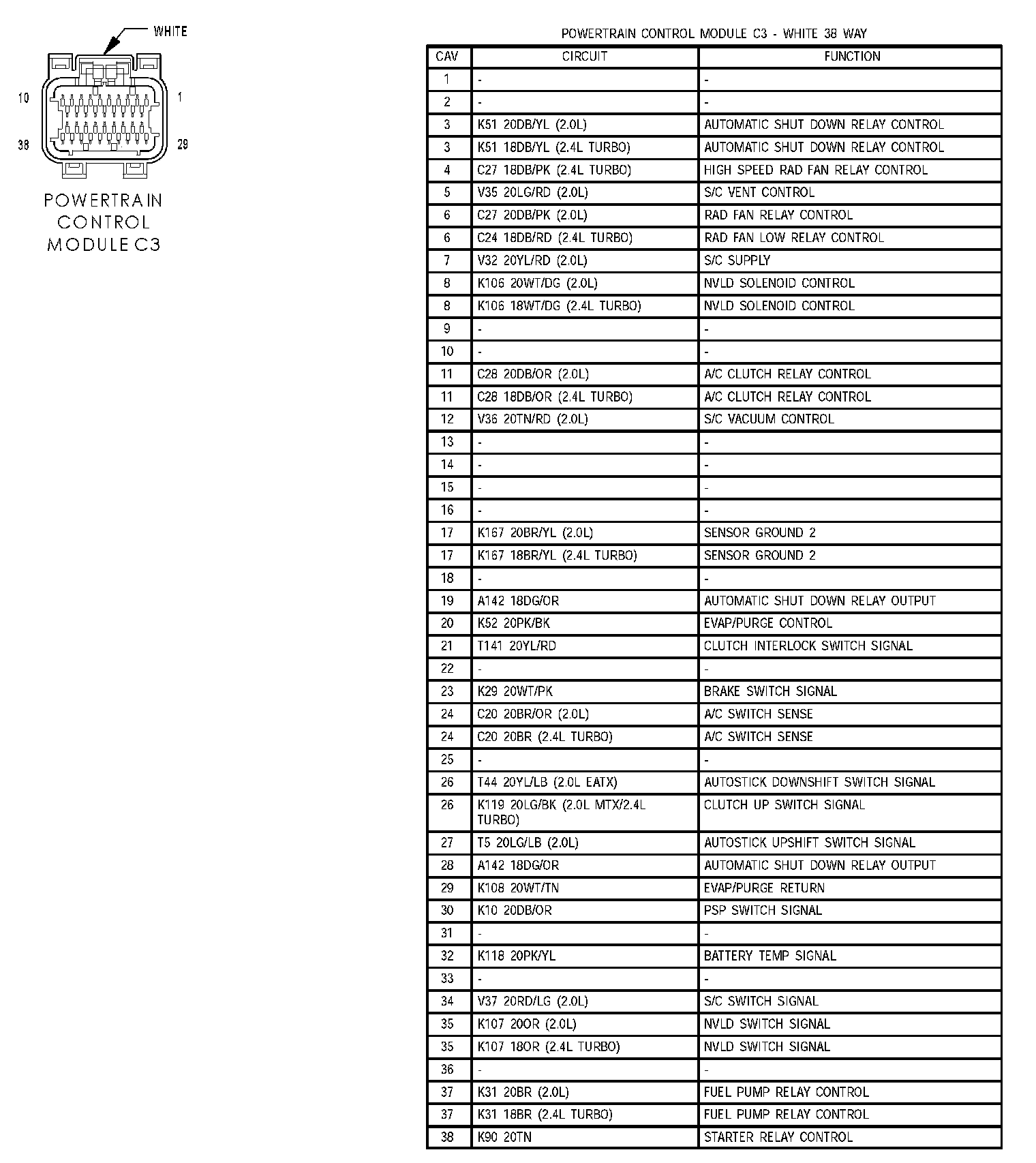

Power Train Control Module C3:

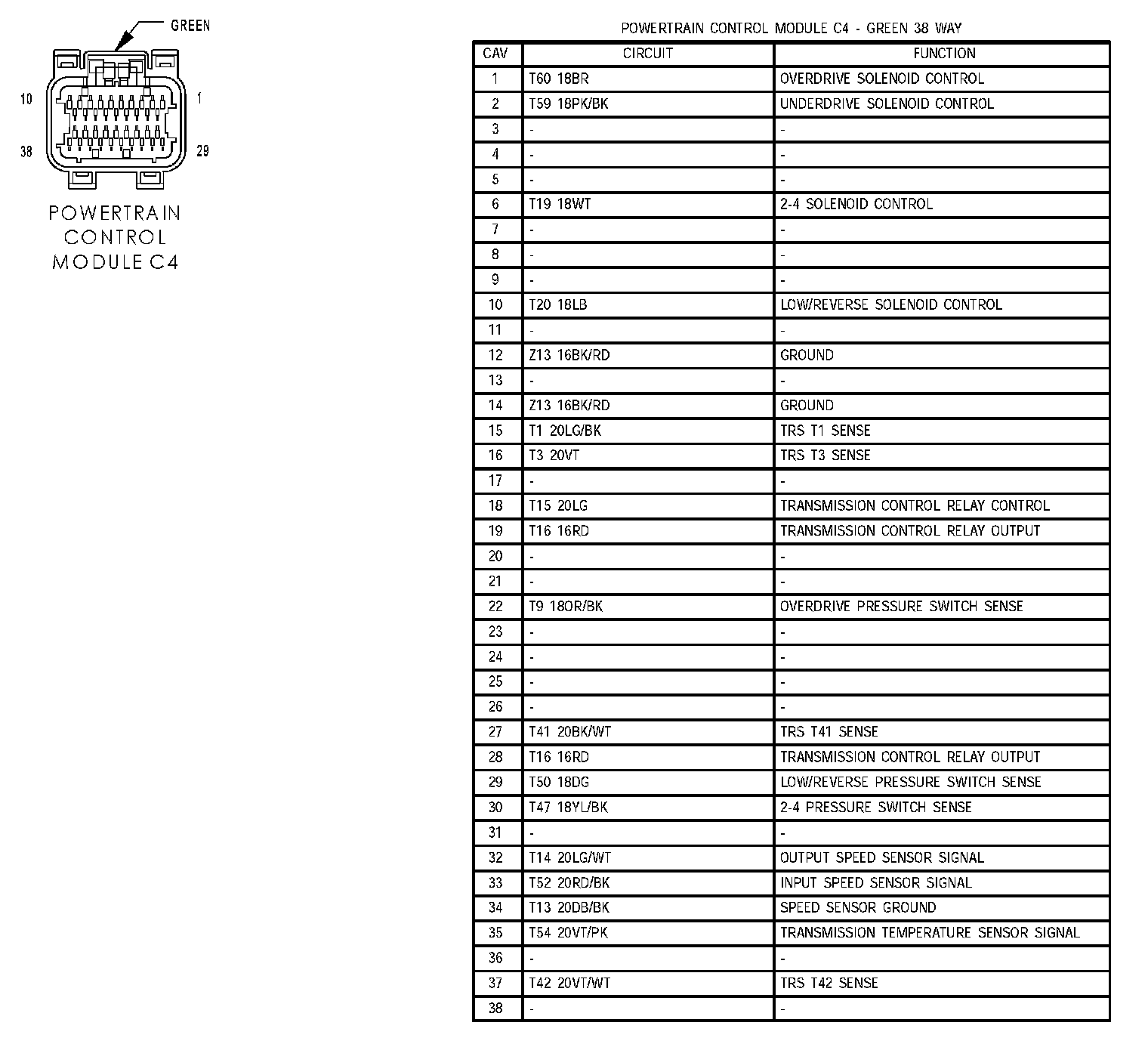

Power Train Control Module C4:
