Automatic Transmission/Transaxle

40TE AUTOMATIC TRANSAXLE

DESCRIPTION

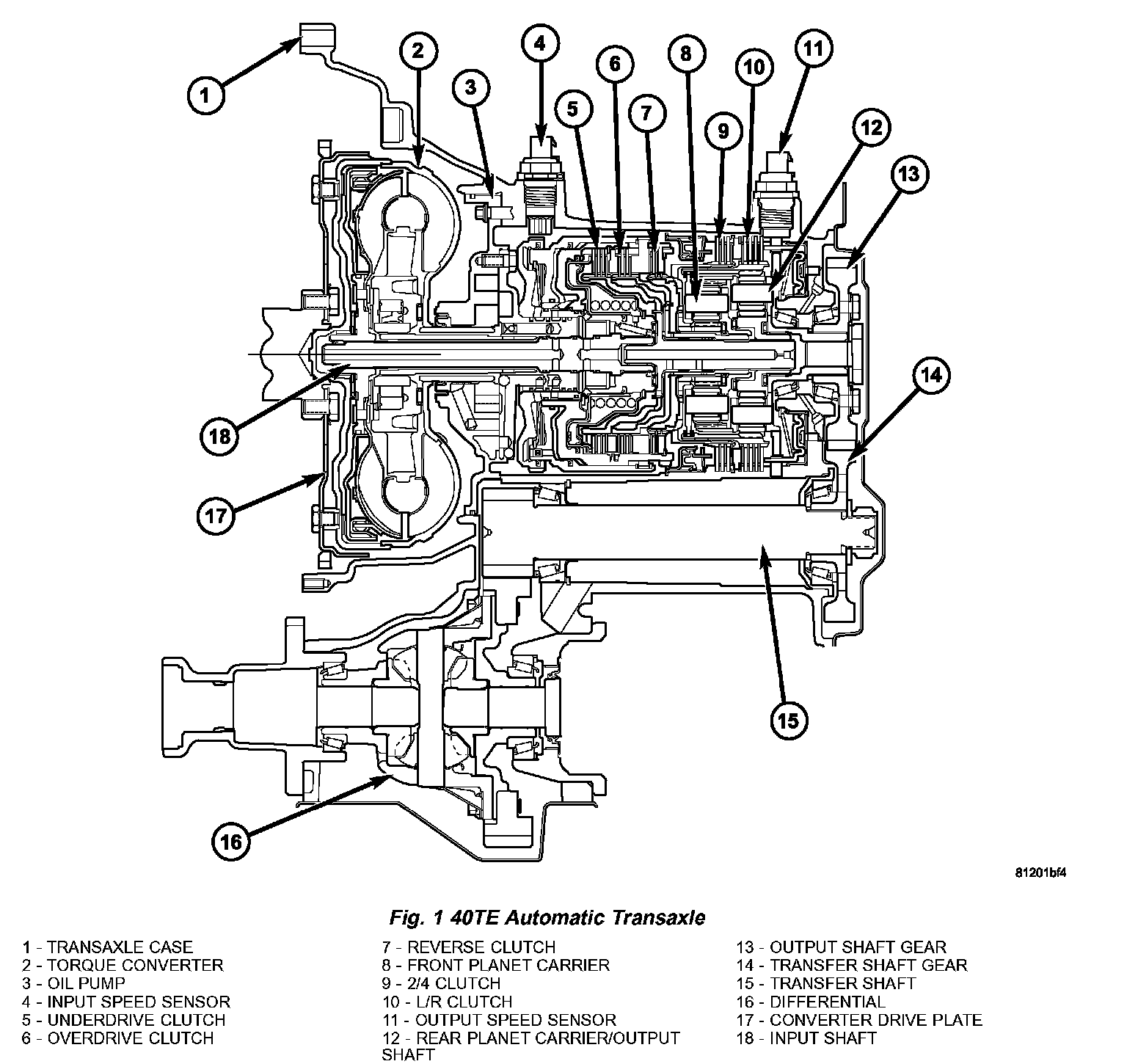

The 40TE (Fig. 1) is a four-speed transaxle
