Air Bag System

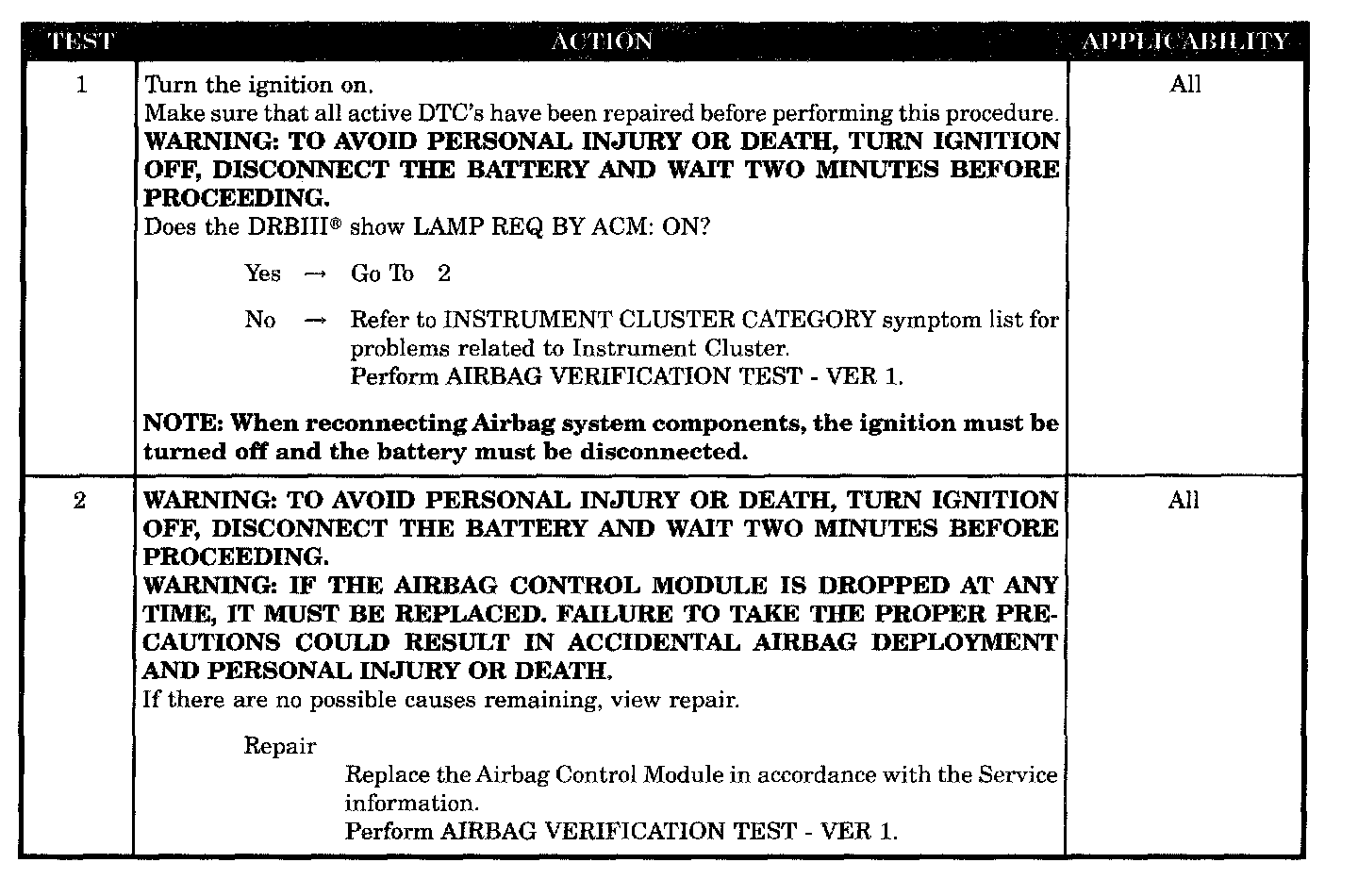

Test 1 - 2:






SYMPTOM
AIRBAG INDICATOR ON WITHOUT ACM TROUBLE CODES

POSSIBLE CAUSES
- Instrument cluster problems
- ACM, indicator on no codes
