Temperature Display Inoperative or Wrong

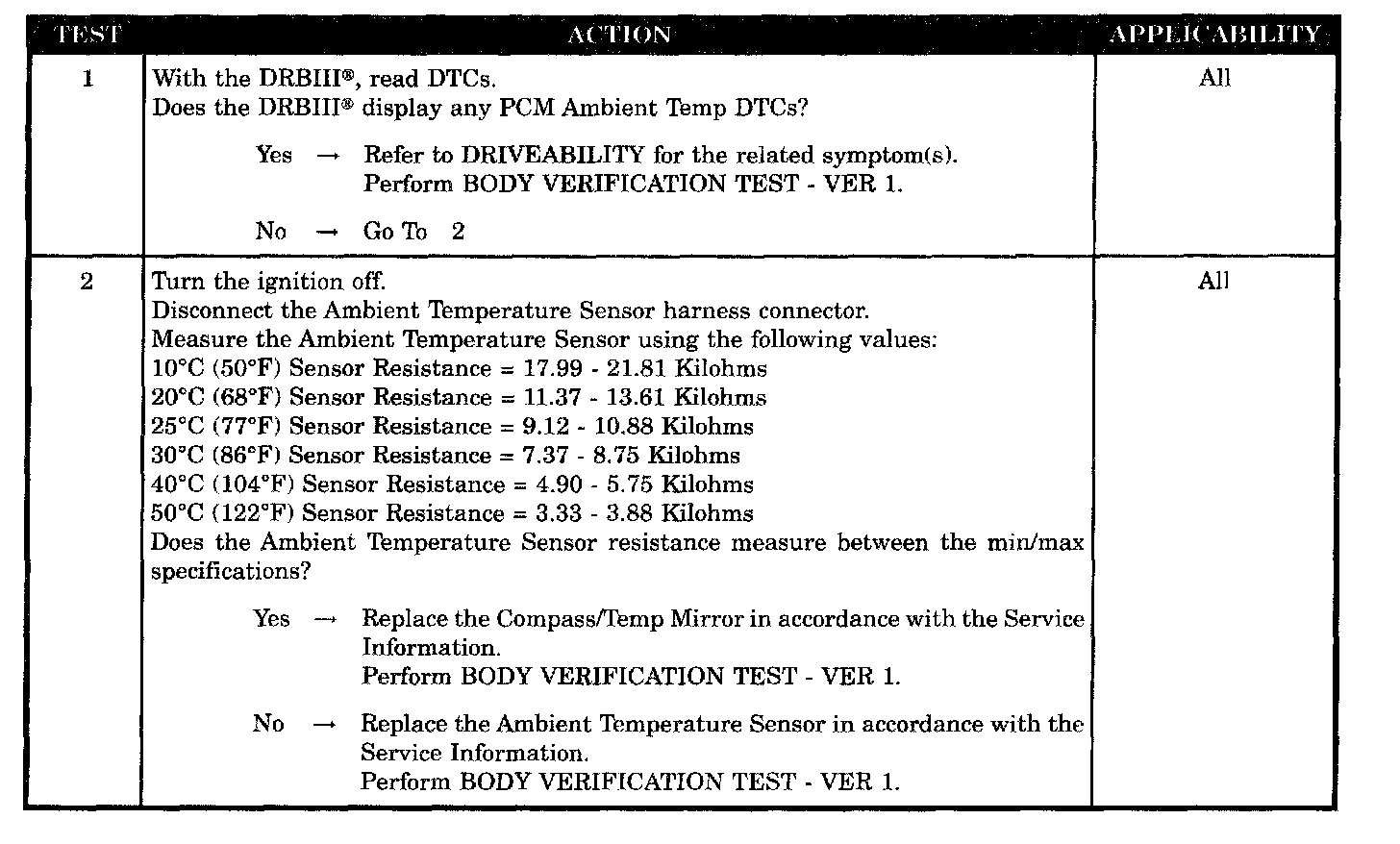

Test 1 - 2:






SYMPTOM
TEMPERATURE DISPLAY INOPERATIVE OR WRONG (2.0L ONLY)

POSSIBLE CAUSES
- DTC present in PCM
- Ambient temperature sensor
- Compass/temperature mirror
