Connector Locations

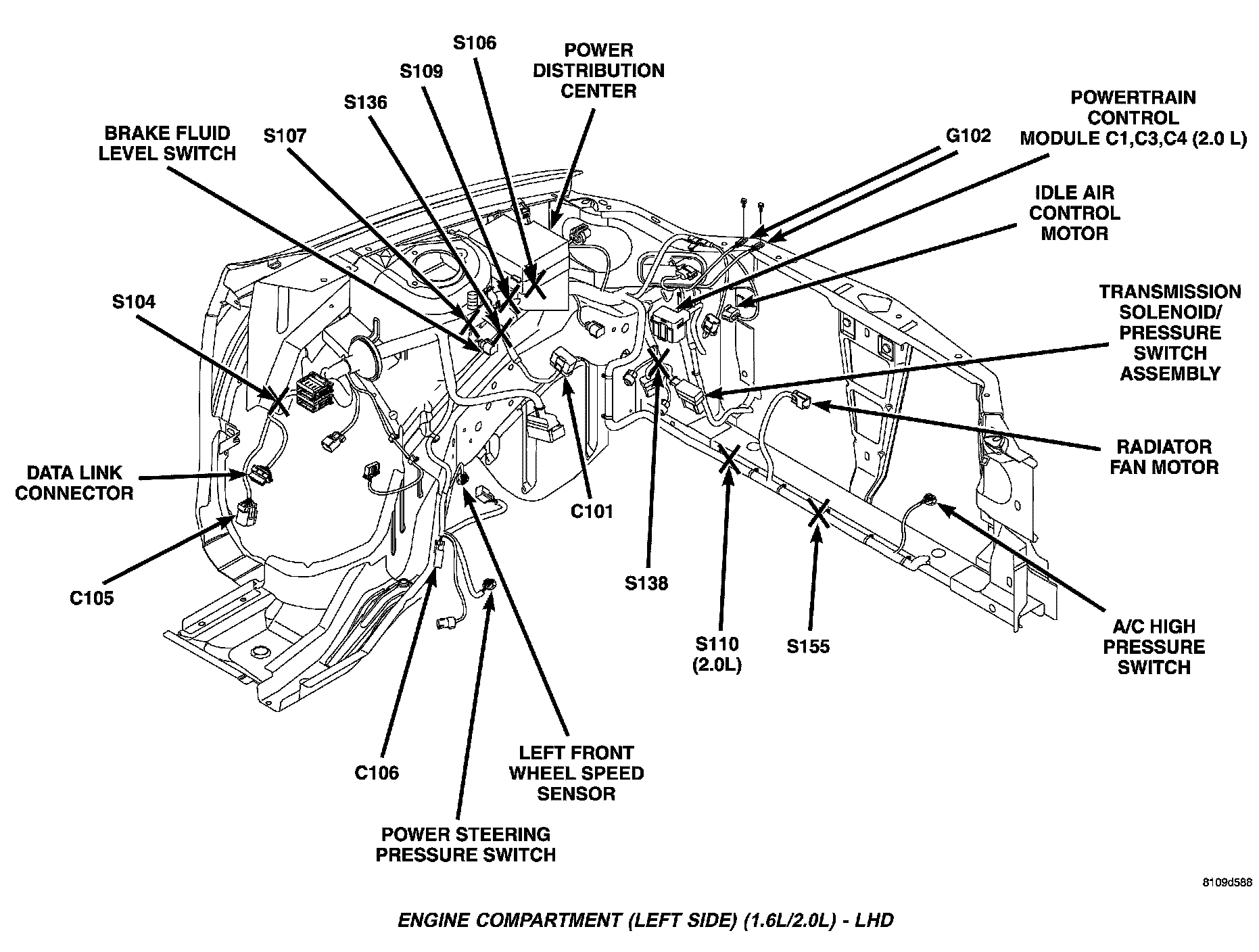

Engine Compartment (Left Side) (1.6L/2.0L) LHD:

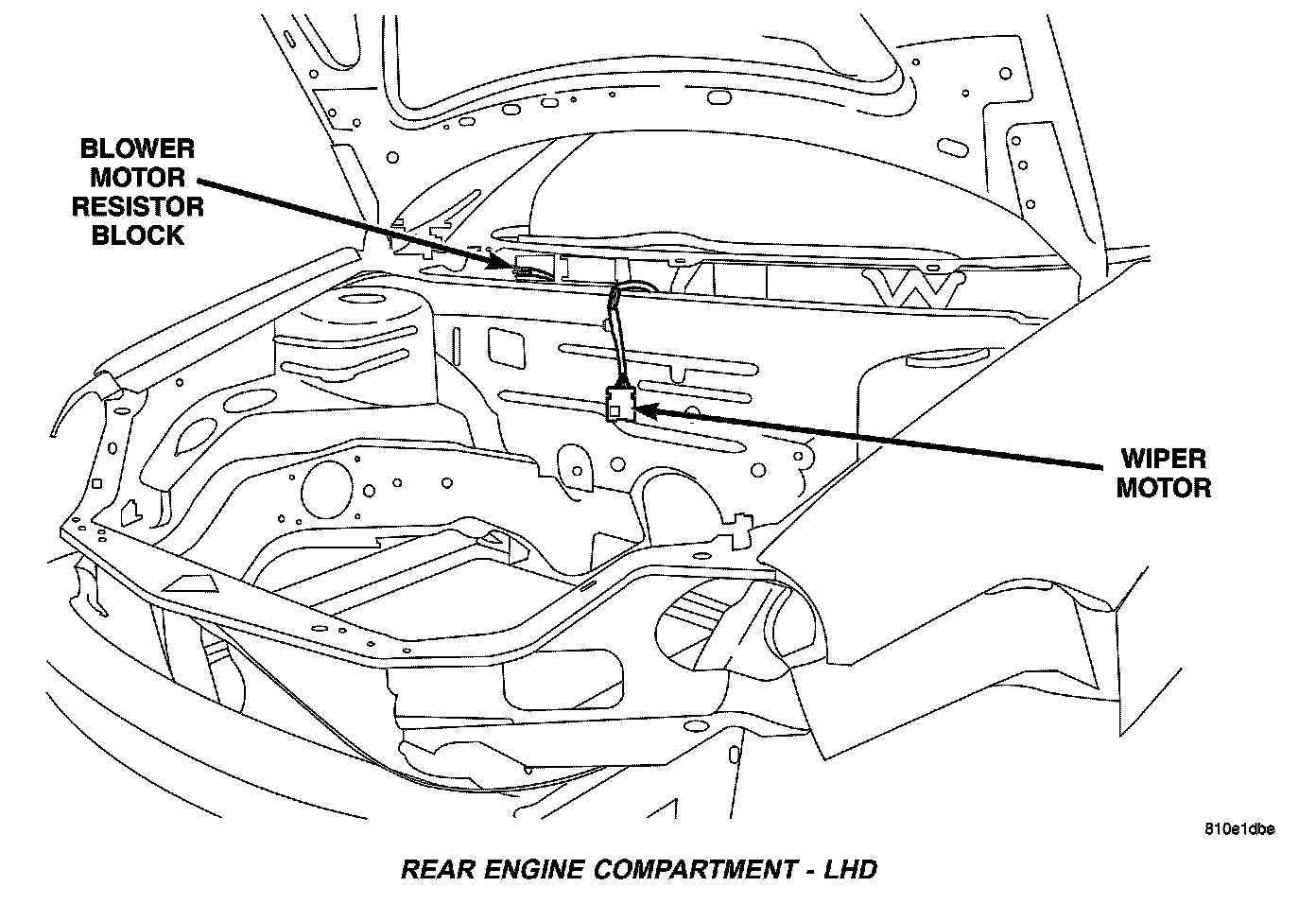

Rear Engine Compartment LHD:

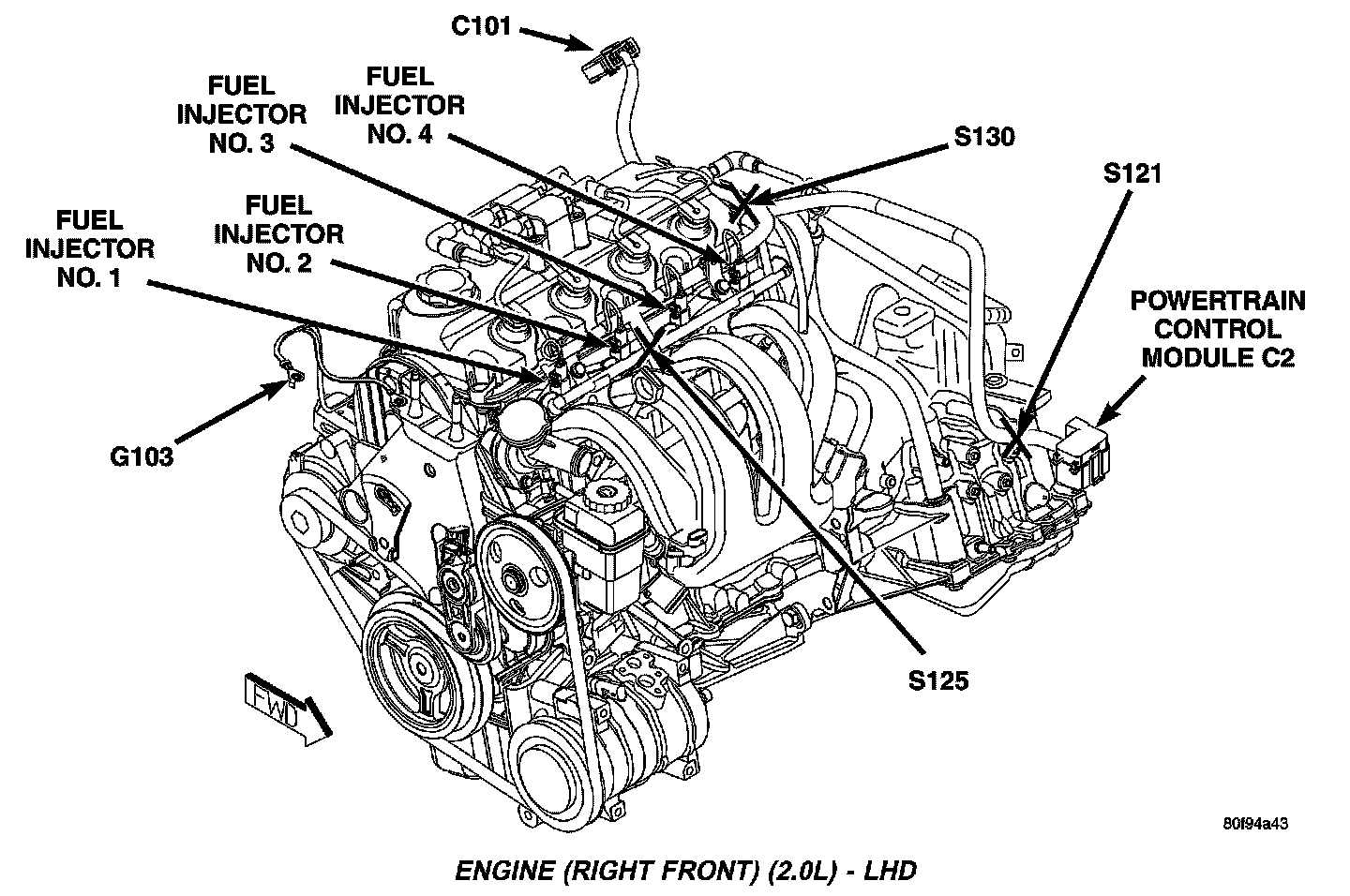

Engine (Right Front) (2.0L) LHD:

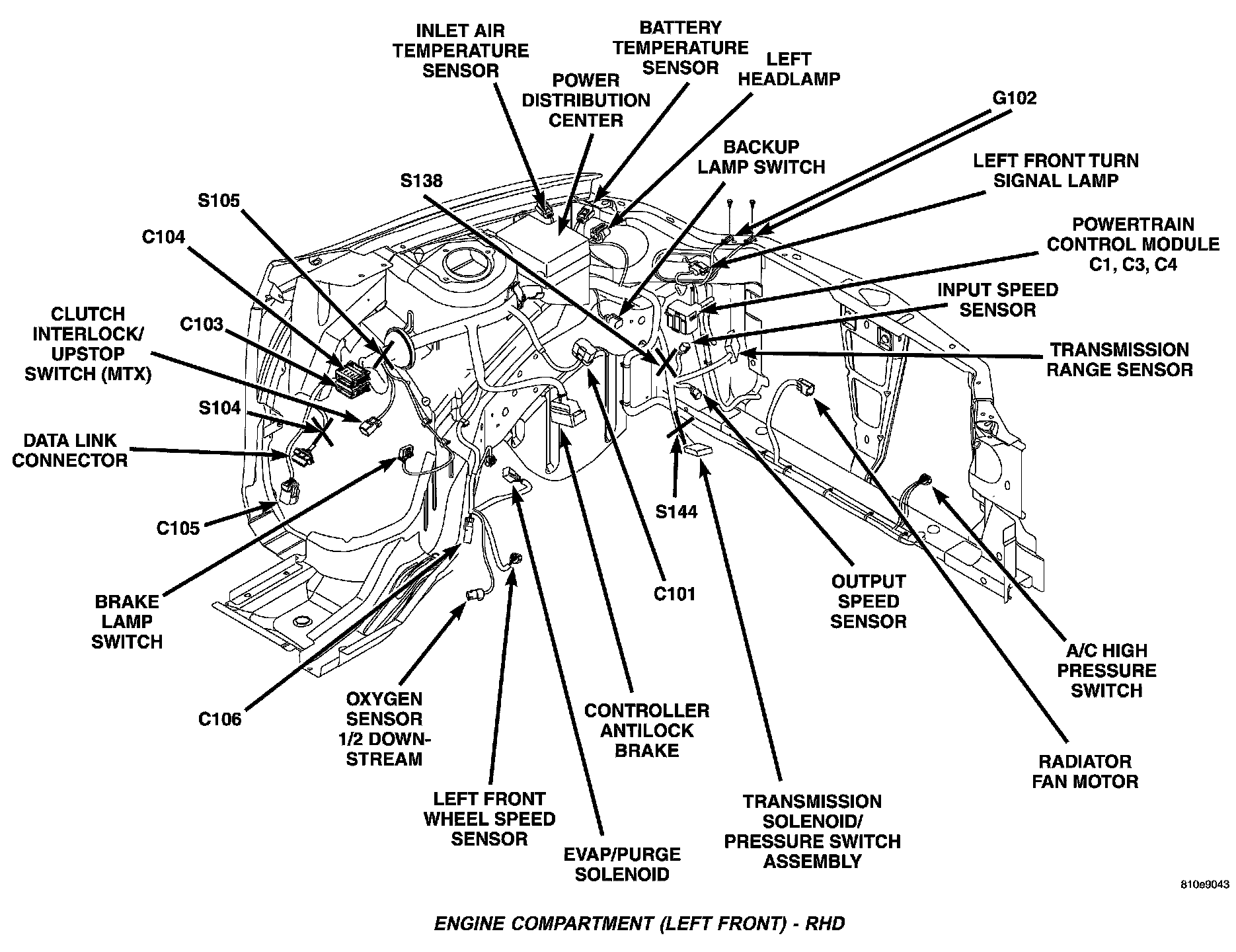

Engine Compartment (Left Front) RHD:

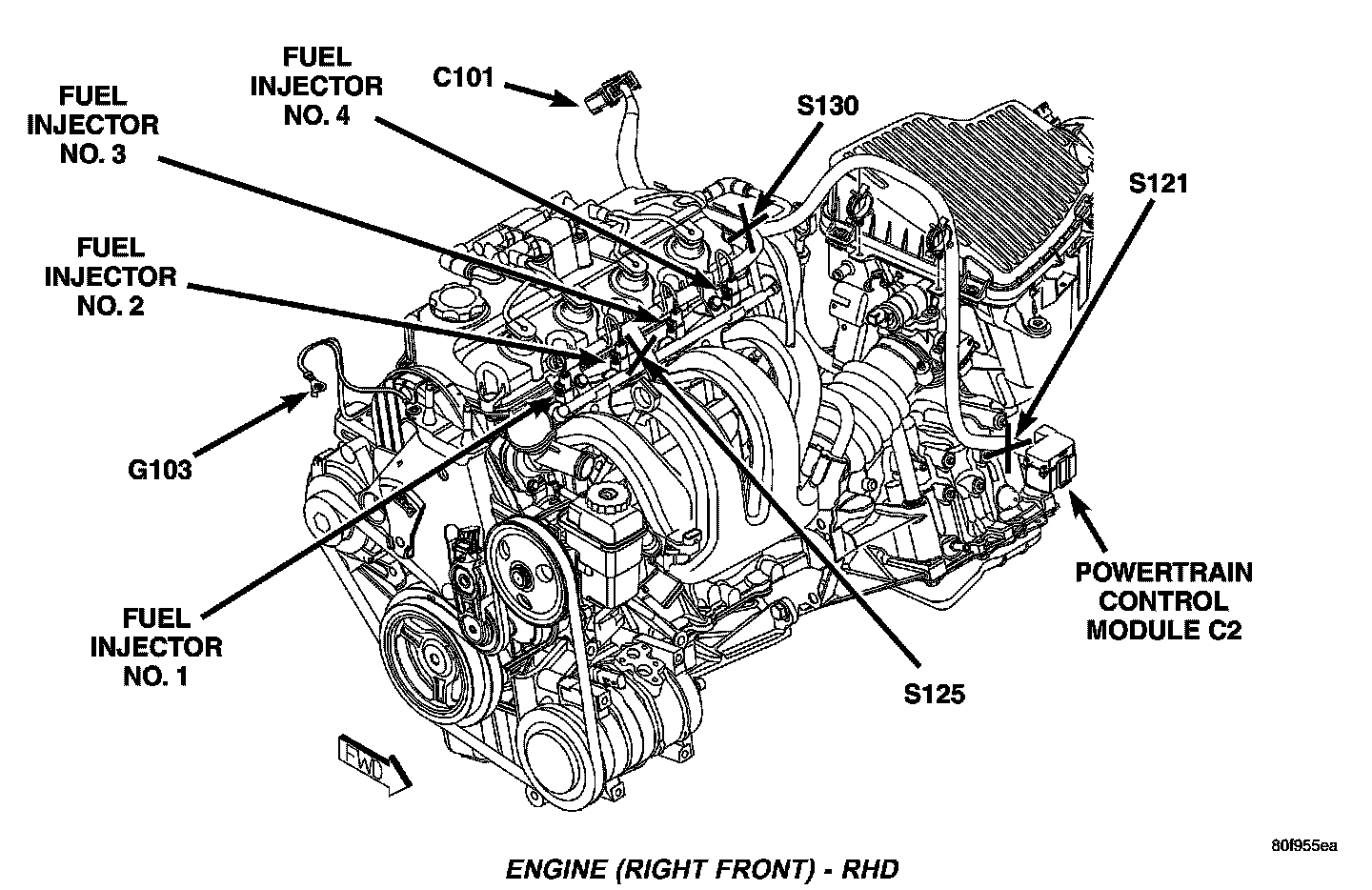

Engine (Right Front) RHD:
