Engine Control Module: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

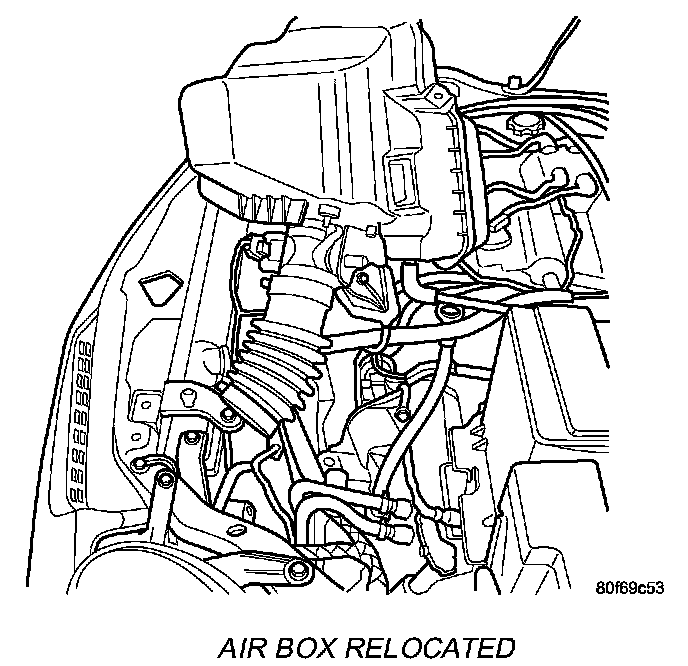

Air Box Relocated:

2. Remove and relocate the air cleaner box, refer to the Engine/Air Intake/Air Cleaner Housing for more information.

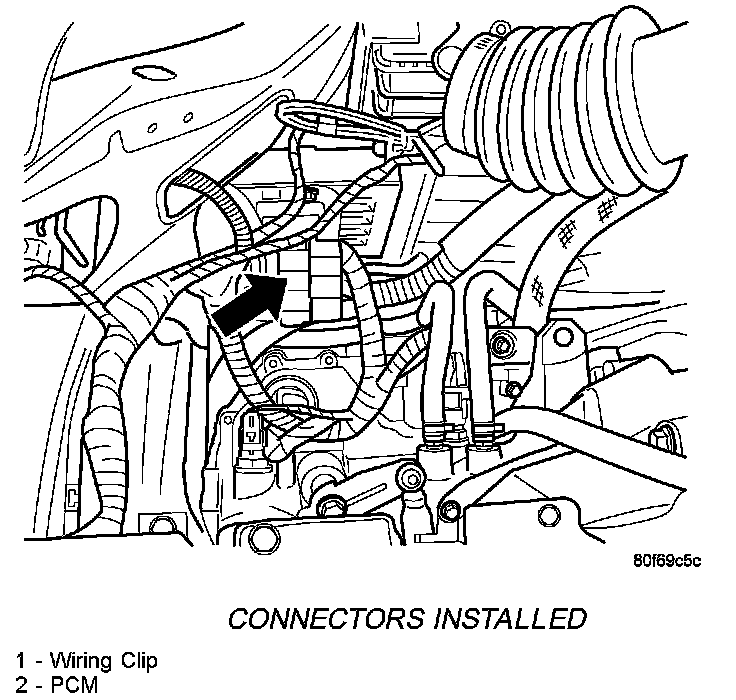

Connectors Installed:

3. Unlock and disconnect the electrical connectors at the PCM.
4. Remove the wiring harness dip from the PCM bracket.

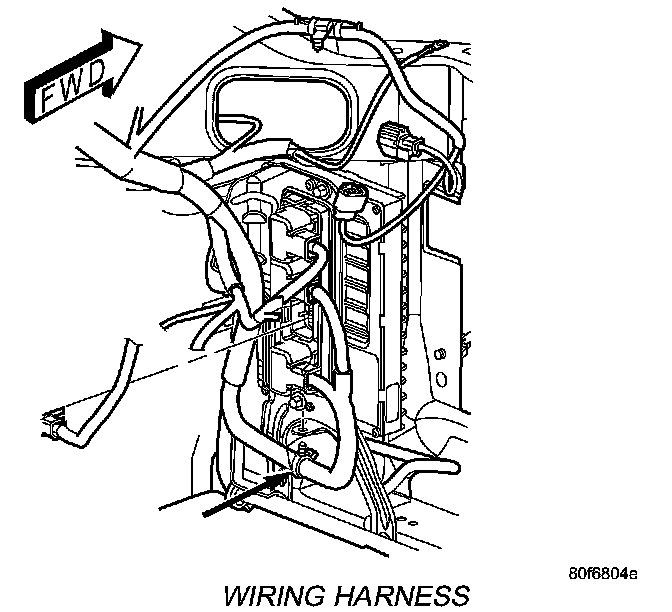

Wiring Harness:

5. Remove the mounting bolts from the bottom of the PCM bracket.
6. Remove the nut and bracket screws.

NOTE: For PL 2.4L SRT-4 remove PCM from bracket then remove both parts

7. Remove the assembly, PCM and bracket.

INSTALLATI0N
1. Install the assembly, PCM and bracket.
2. Loose install the mounting nut.

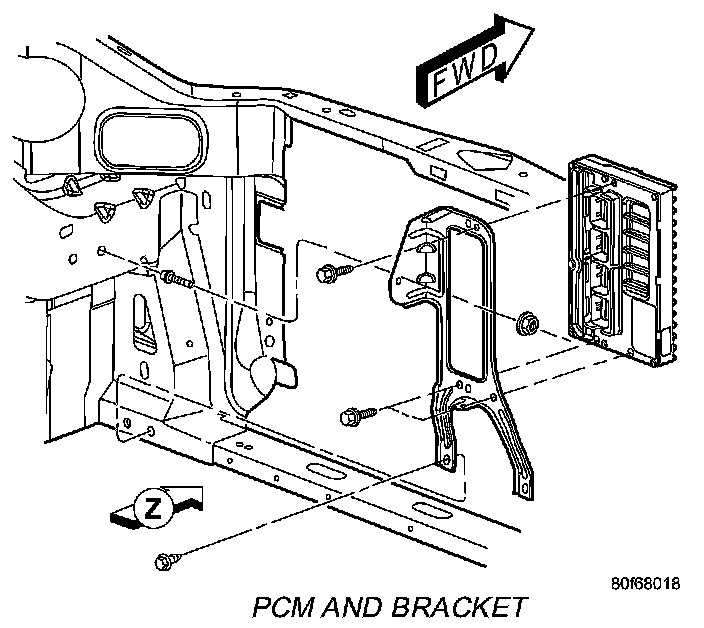

PCM And Bracket:

3. Install the mounting bolts to the bottom of the PCM bracket.
4. Tighten the mounting nut, tighten to
5. Install the wiring harness clip to the PCM bracket.

NOTE: The electrical connector for the PCM are COLOR Coded.

6. Connect the electrical connectors and lock at the PCM.
7. Install the air cleaner box, refer to the Engine/Air Intake/Air Cleaner Housing for more information.
8. Connect the negative battery cable.
